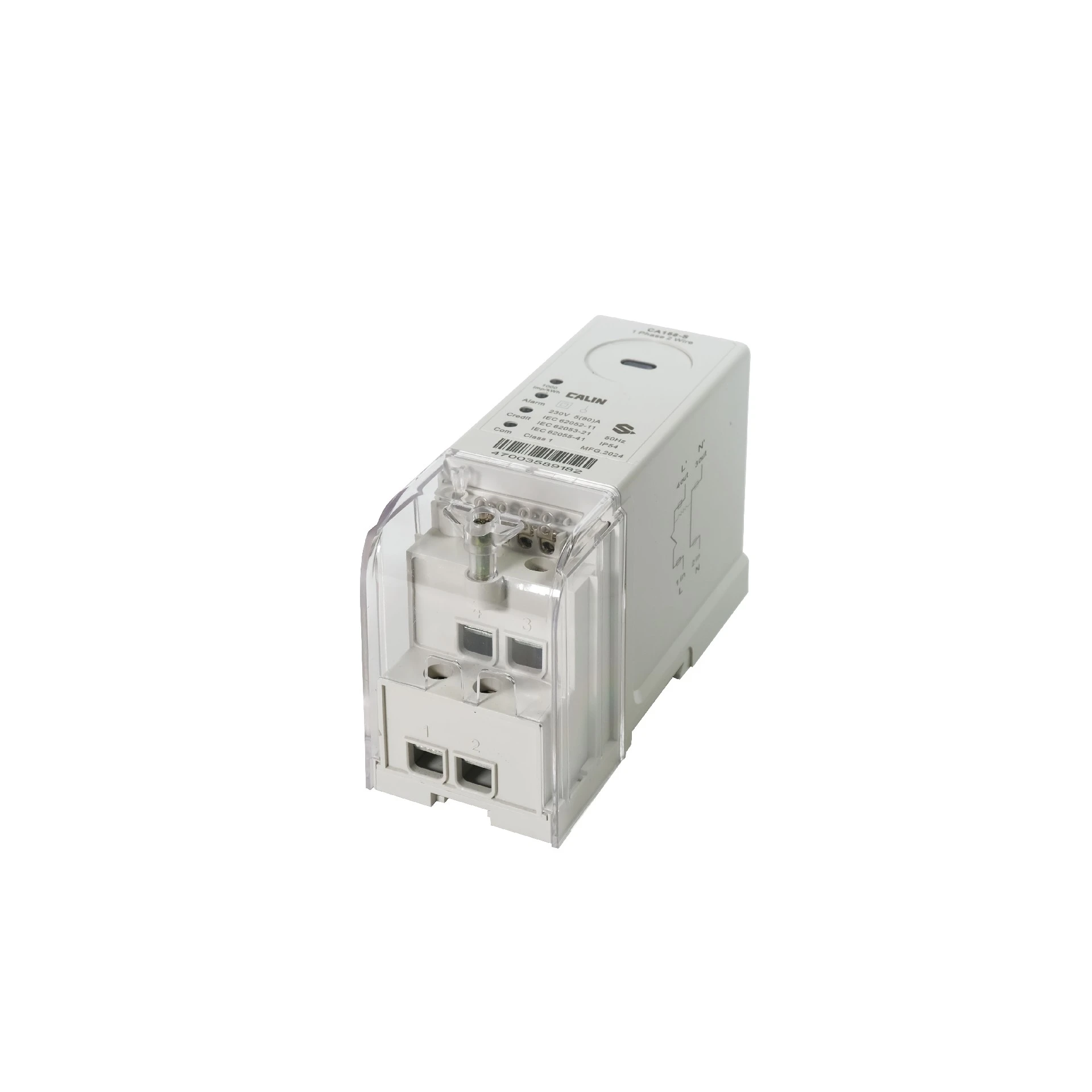

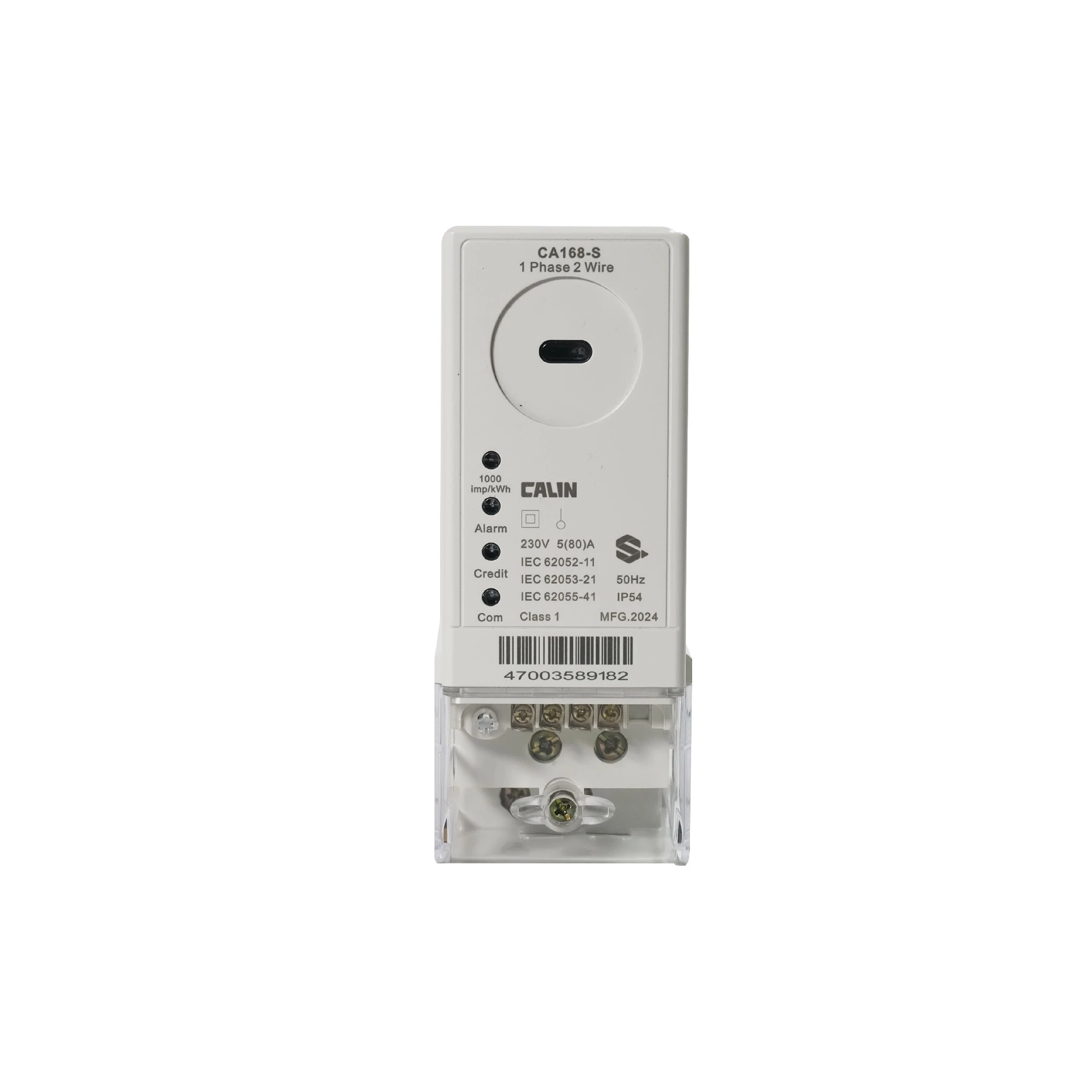

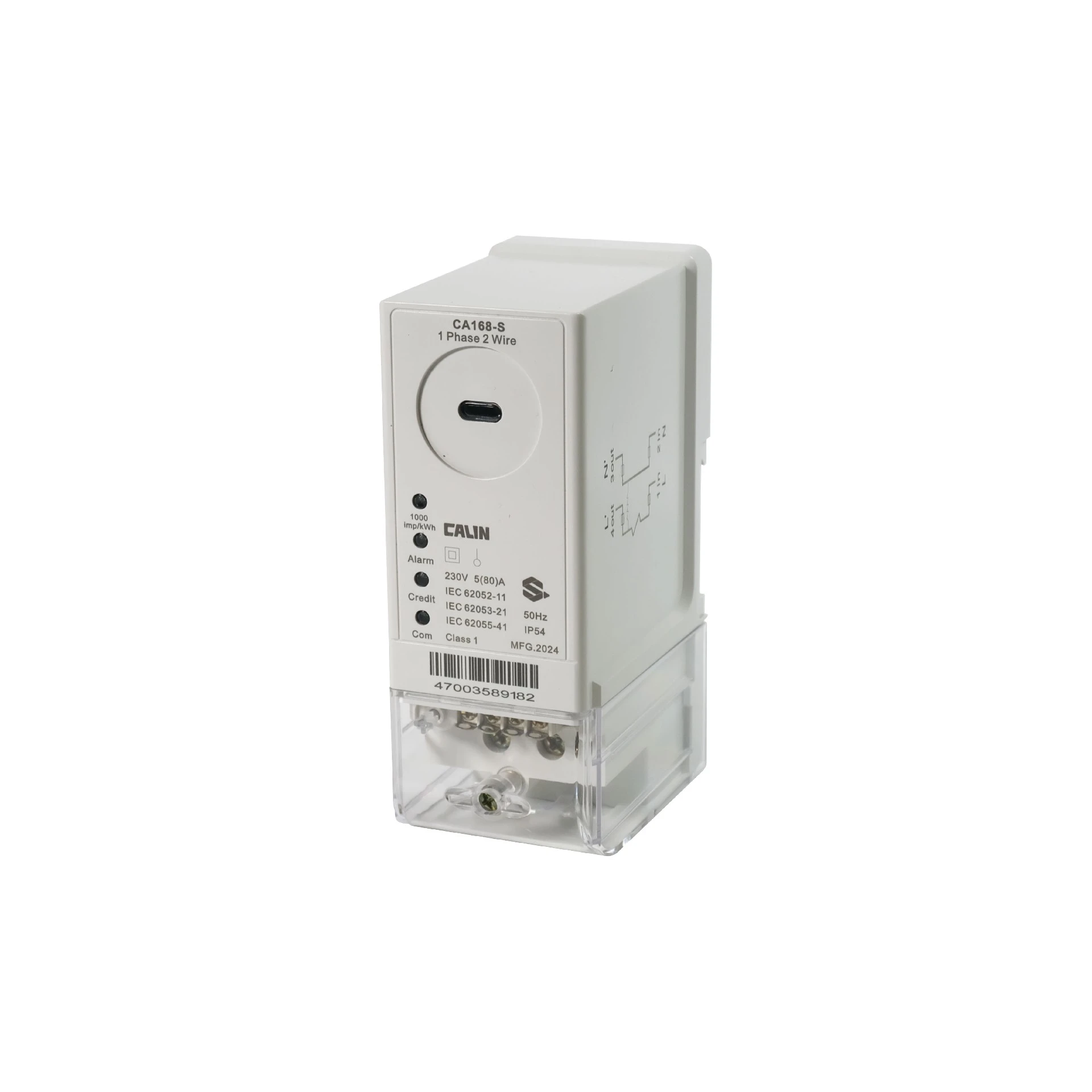

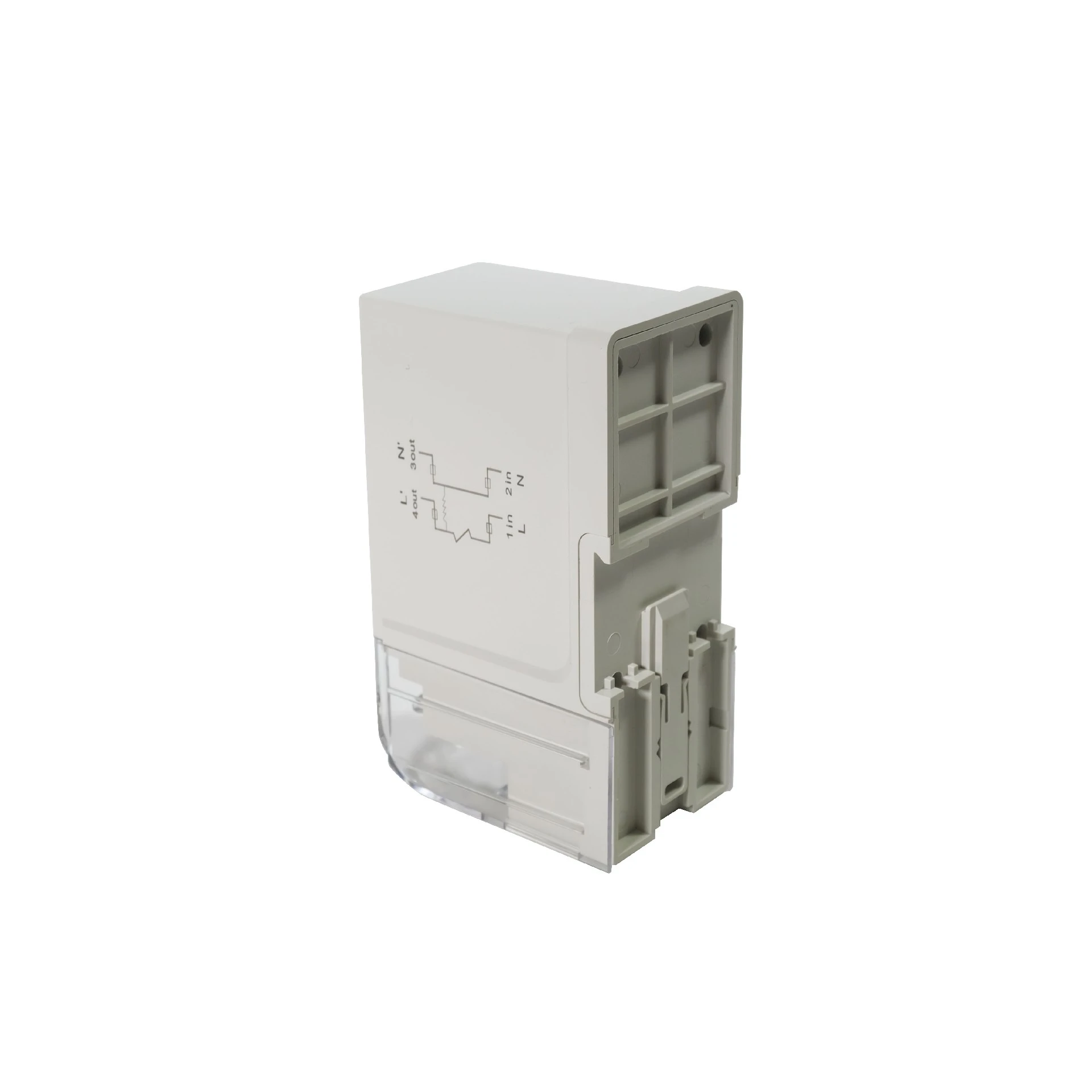

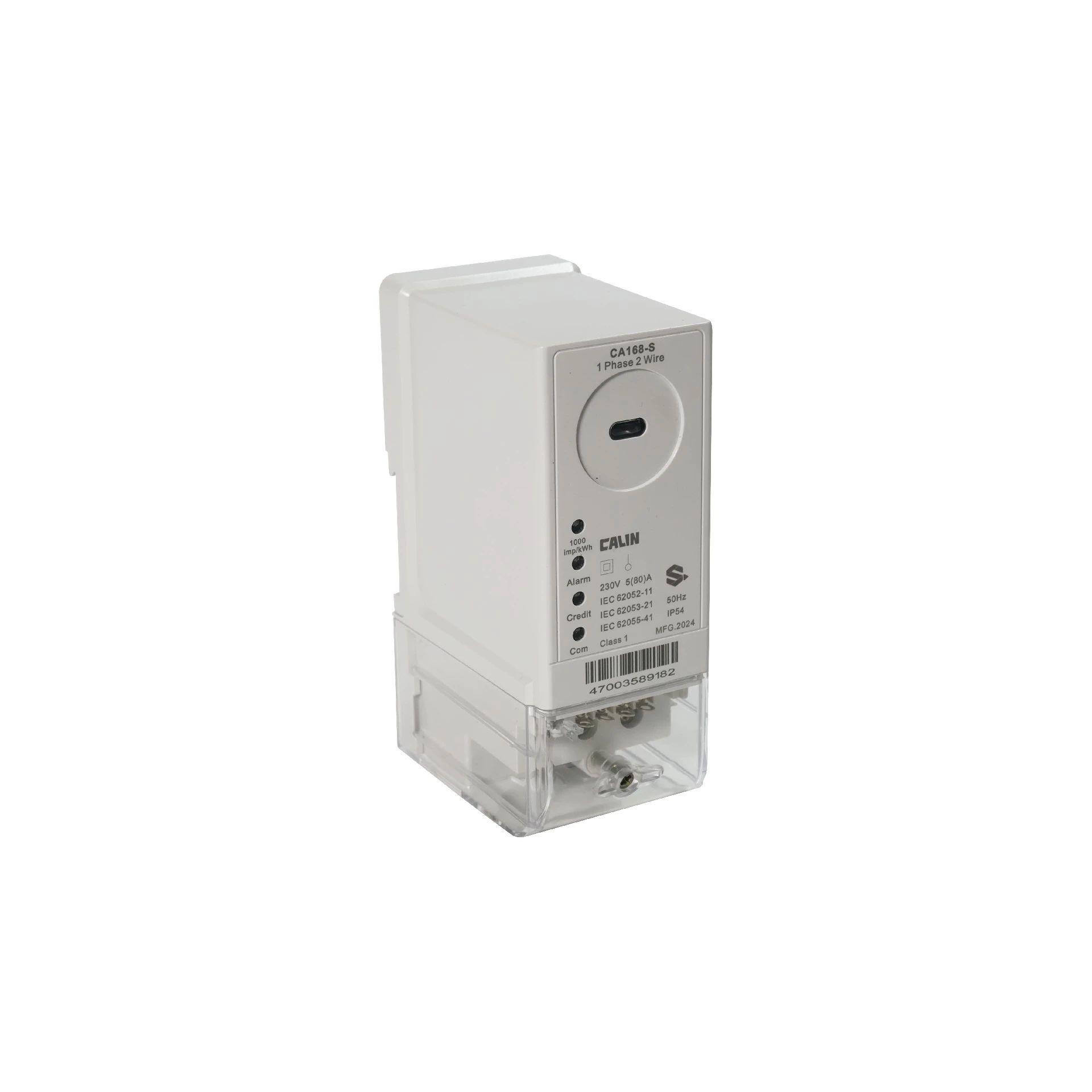

CA168-S Series DIN-Rail Meter

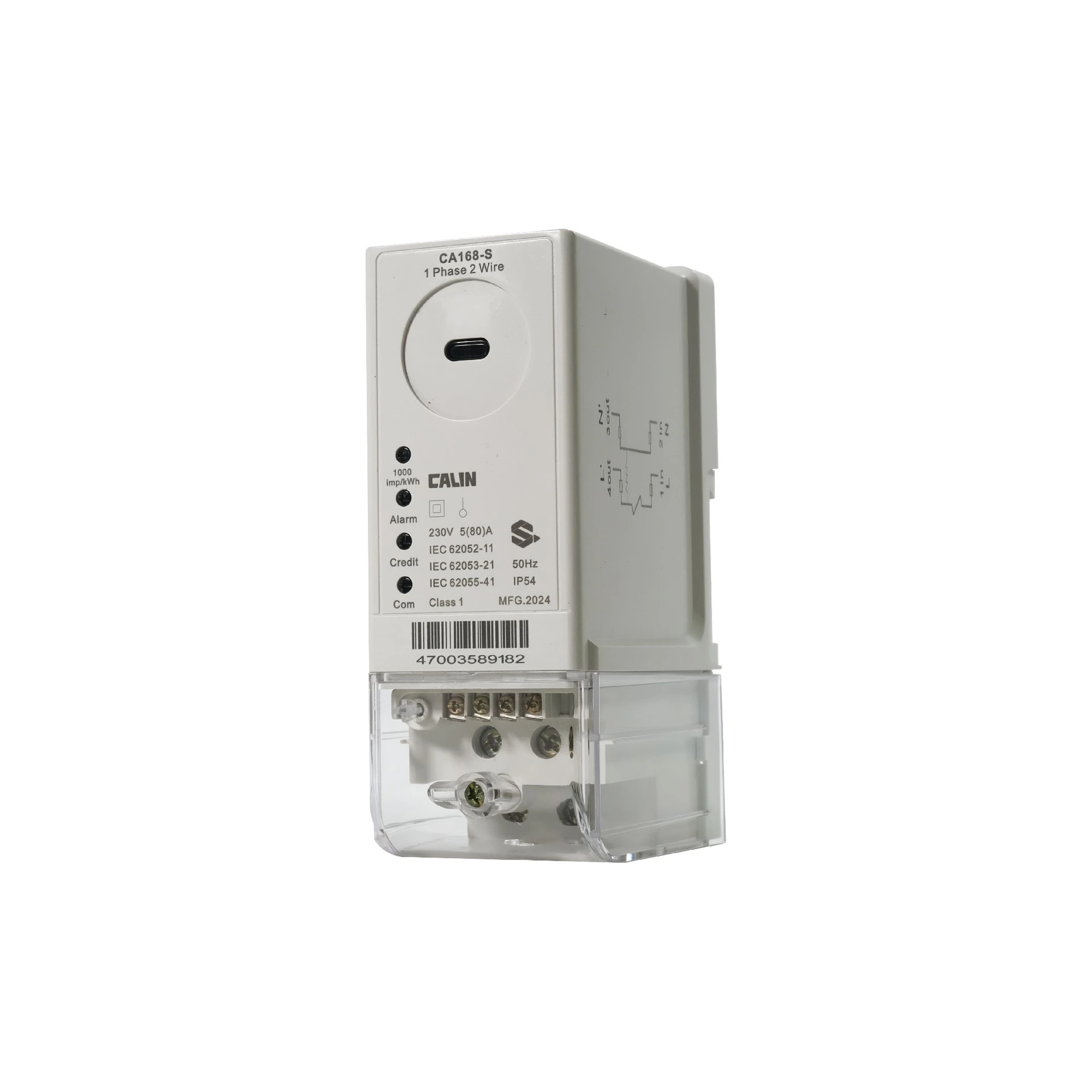

Single Phase Din Rail Energy Meter
Split Configuration for Increased Revenue ProtectionThe CIU (Customer Interface Unit) is optional. The MCU (Metering & Control Unit) and CIU is linked via Mbus 2 wires communication, galvanically-isolated PLC or RF wireless communication, the communication method is on request.The CIU is install
مقدمة
مقدمة
Split Configuration for Increased Revenue Protection
The CIU (Customer Interface Unit) is optional. The MCU (Metering & Control Unit) and CIU is linked via Mbus 2 wires communication, galvanically-isolated PLC or RF wireless communication, the communication method is on request.
The CIU is installed within consumer’s home, while MCU is installed in a meter cabinet away from consumers.
Parameters
| Voltage | |
| Nominal Voltage Un | 230V |
| Limited Voltage | 70% ~ 120% Un |
| Frequency | |
| Nominal Frequency fn | 50 ~ 60 Hz |
| Tolerance | 5% |
| Current | |
| Basic current (ib) | 5A |
| Maximum current (Imax) | 60A/80A |
| Starting current (lst) | 20mA |
| Active energy constant | 1000 imp/kWh |
| Measurement Accuracy | |
| Active energy to IEC 62053 - 21 | Class 1.0 |
| Burden | |
| Voltage circuit | <2W <8VA |
| Current circuit | <1VA |
| Temperature range | |
| Operation meter | -25℃ ~ +70 ℃ |
| Storage | -40℃ ~ +85 ℃ |
| Insulation | |
| Insulation level | 4kV rms 1min |
| Voltage impulse withstand | 8kV 1.2/50 μs |
| Insulation System Classification | Protective Class II |
| Electro Magnetic Compatibility | |
| Electrostatic discharges | |
| Contact discharge | 8kV |
| Air discharge | 16kV |
| Electromagnetic RF fields | |
| 27MHz to 500MHz typical | 10V/m |
| 100kHz to 1GHz typical | 30V/m |
| Fast transient burst test | 4kV |
| Mechanical requirements | |
| Meter shell Protection Rate | IP54 |
| Insulation System Classification | Protective Class II |
| Maximum cable size | 8 mm |
