Compteurs d’eau
CA568-A01

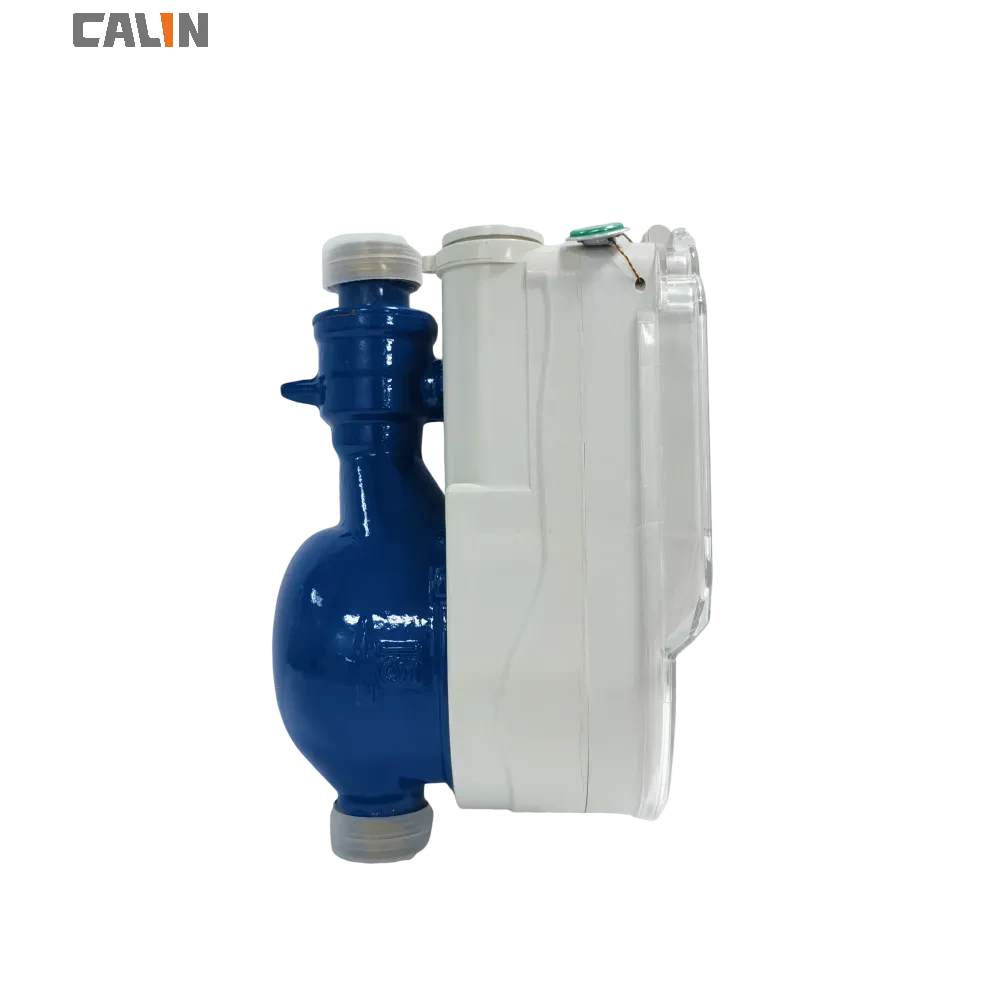

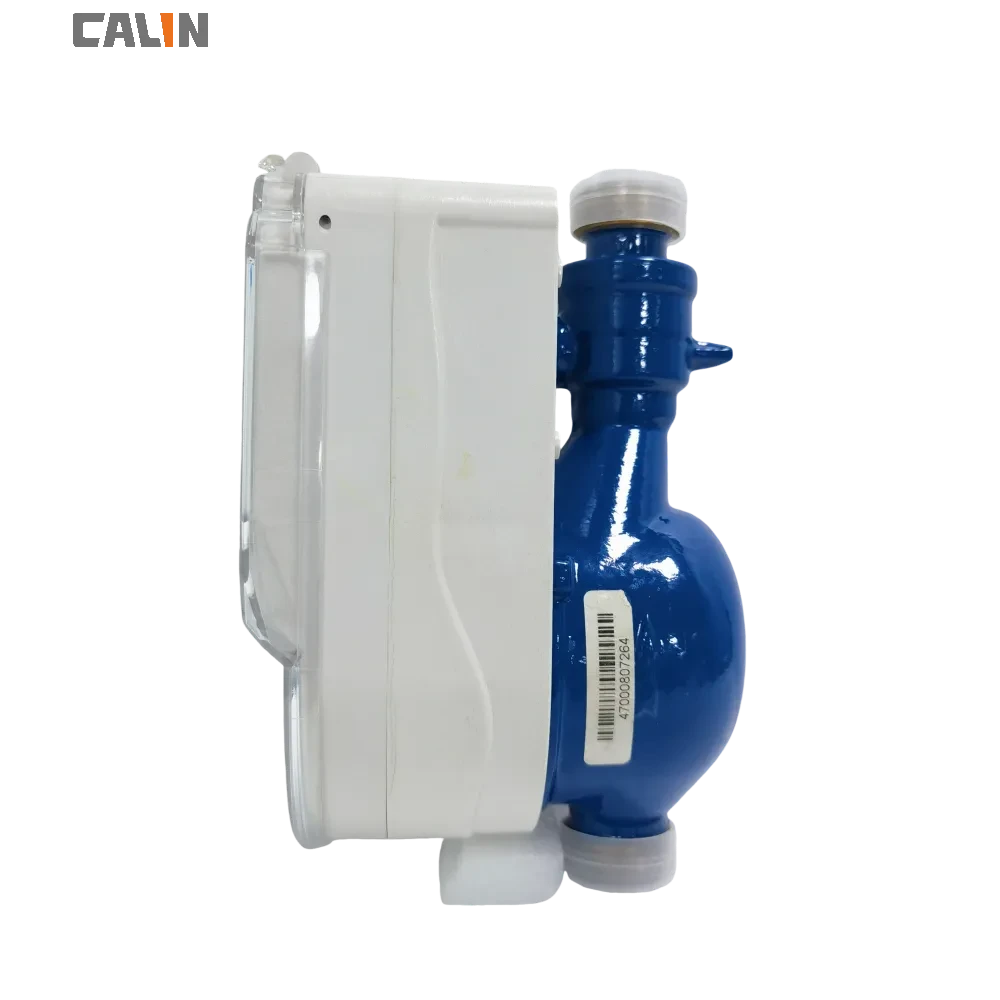

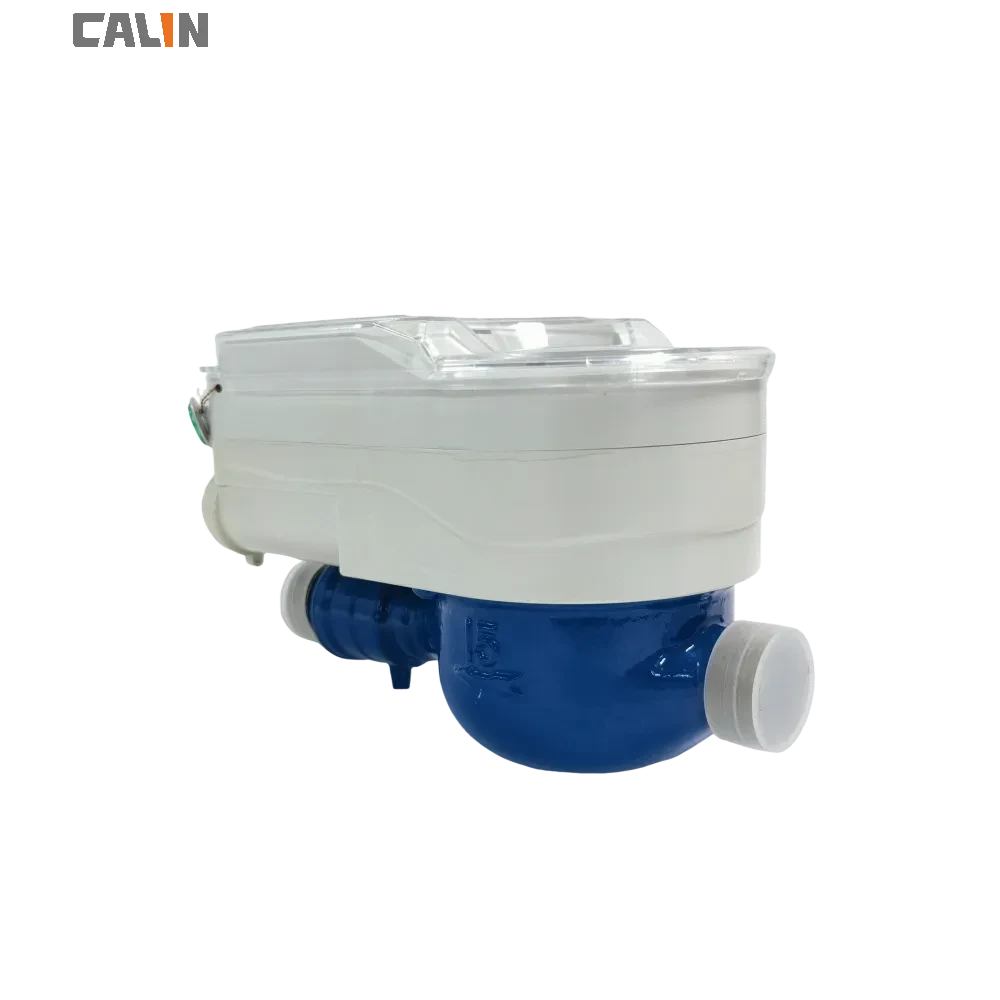

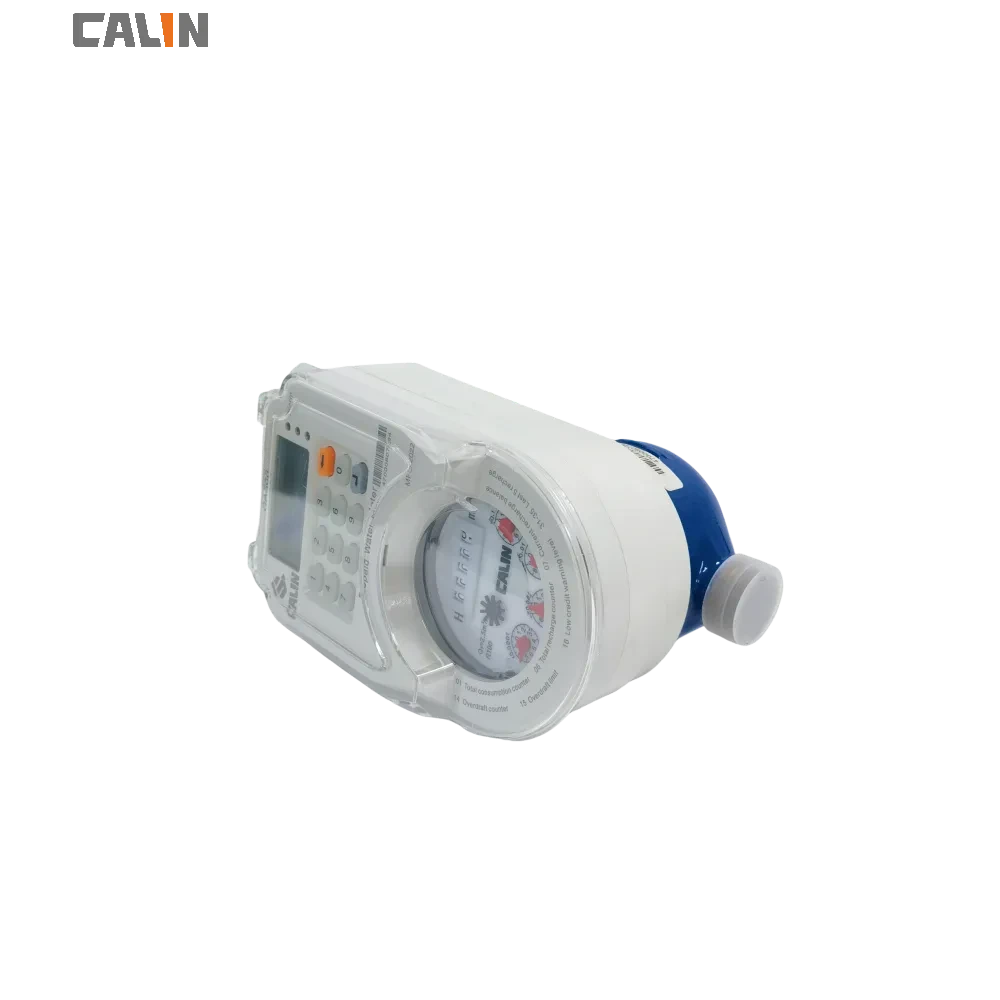

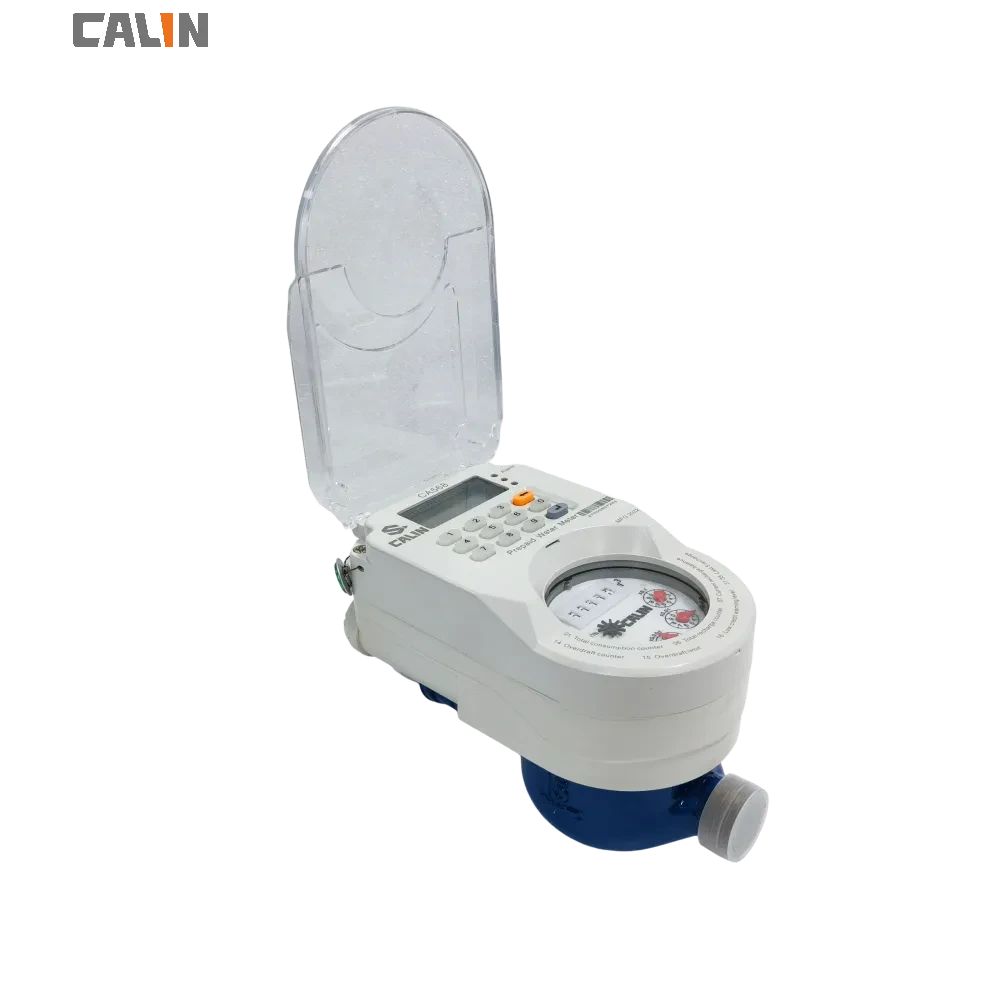

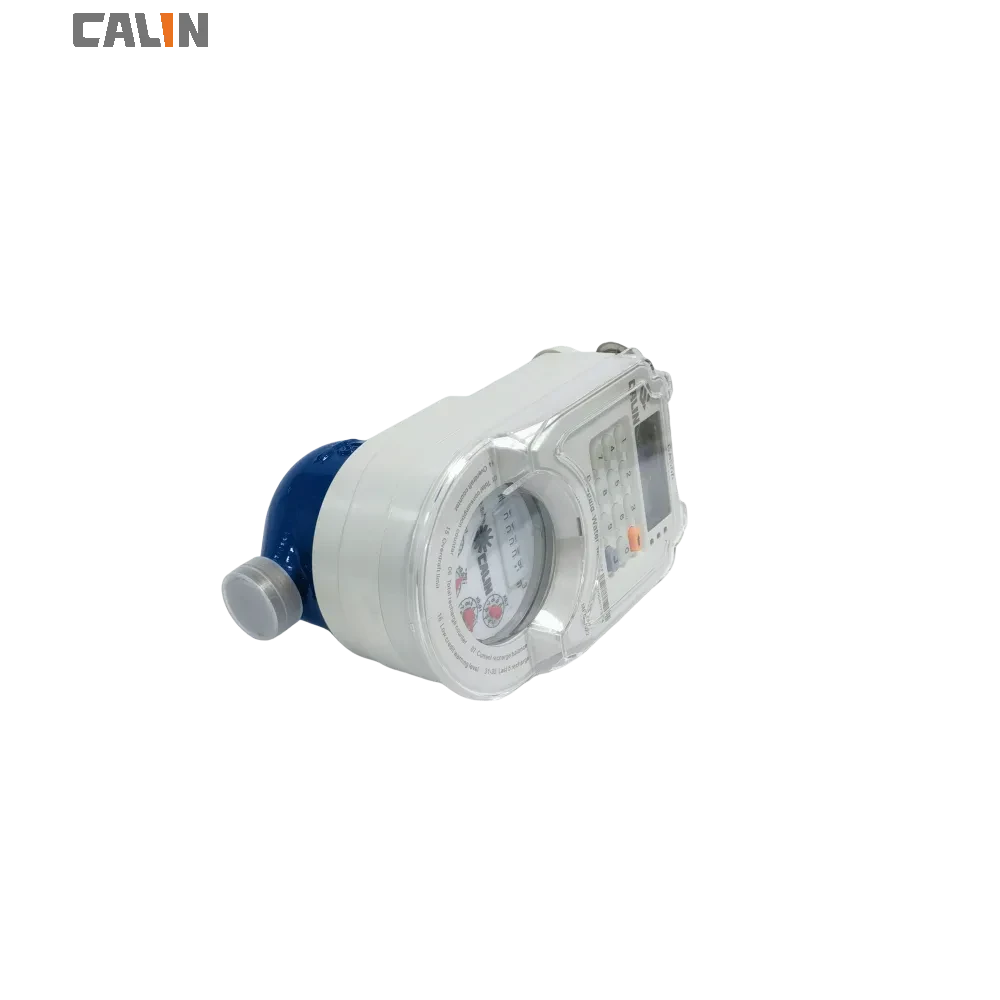

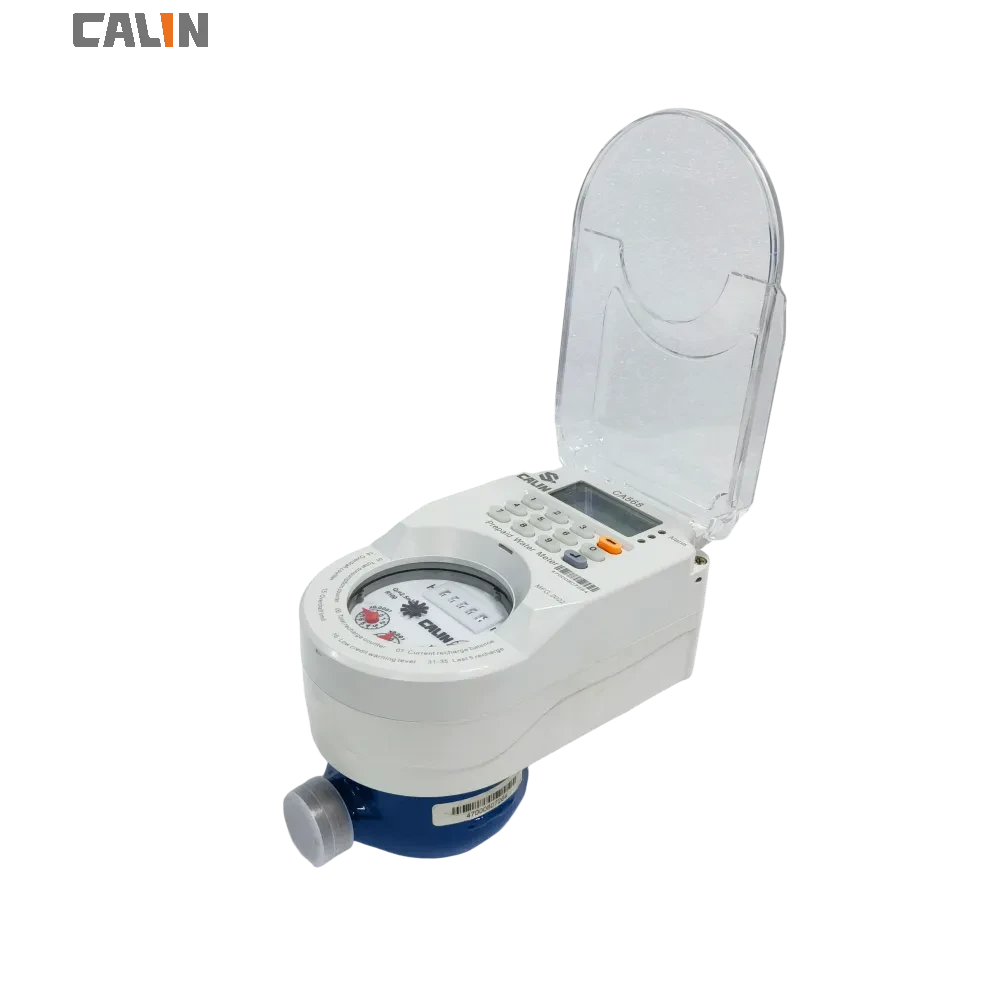

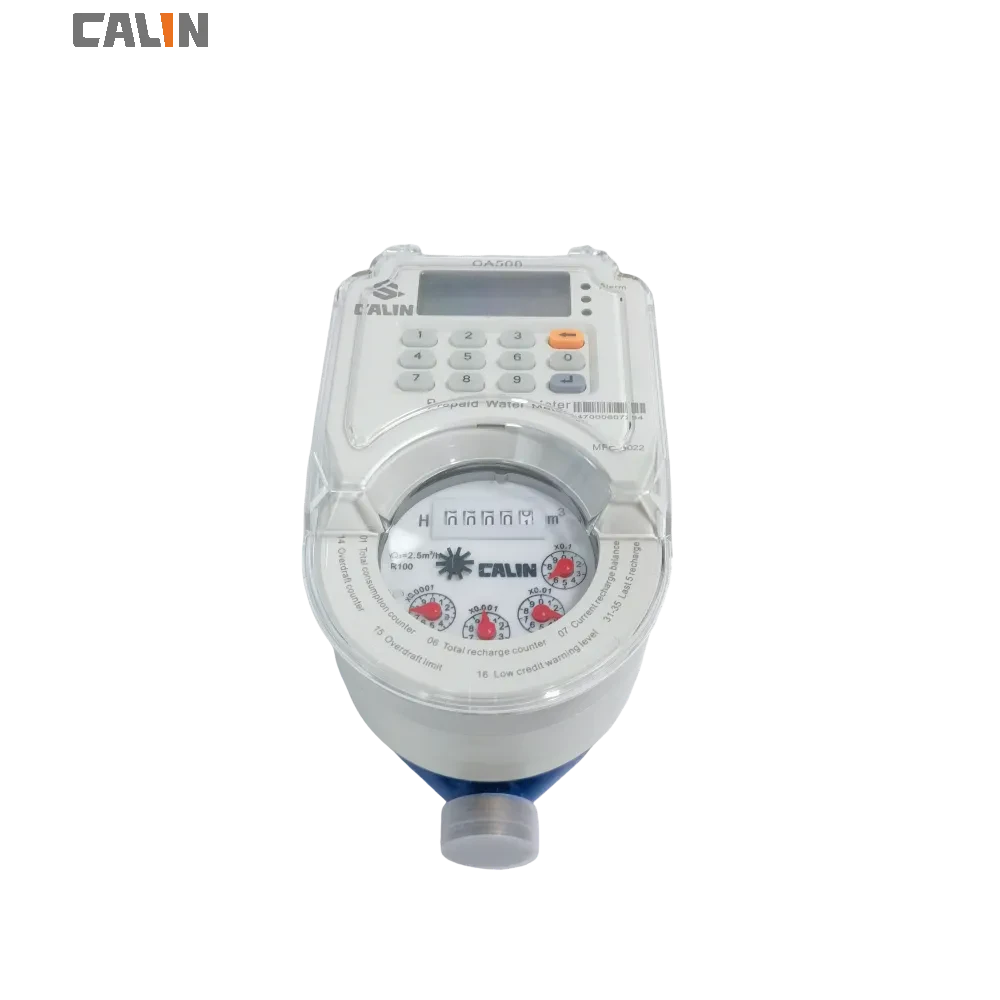

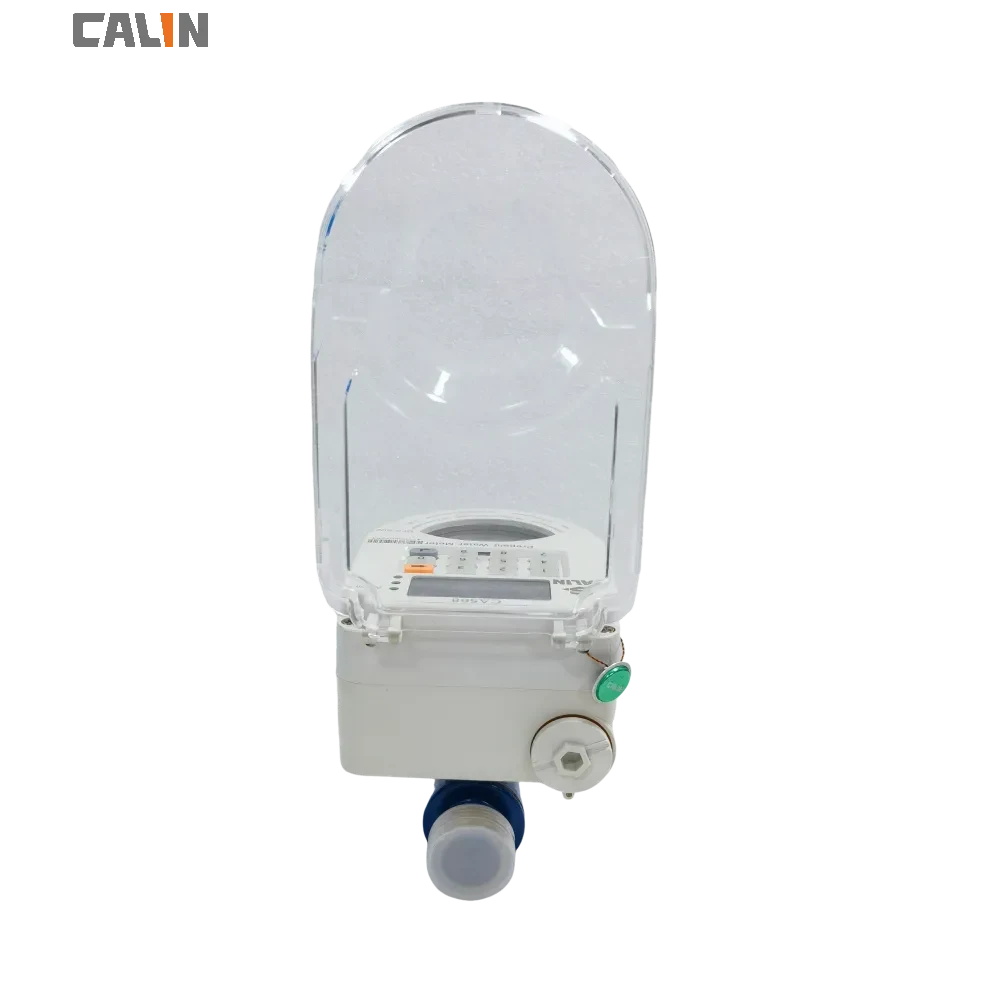

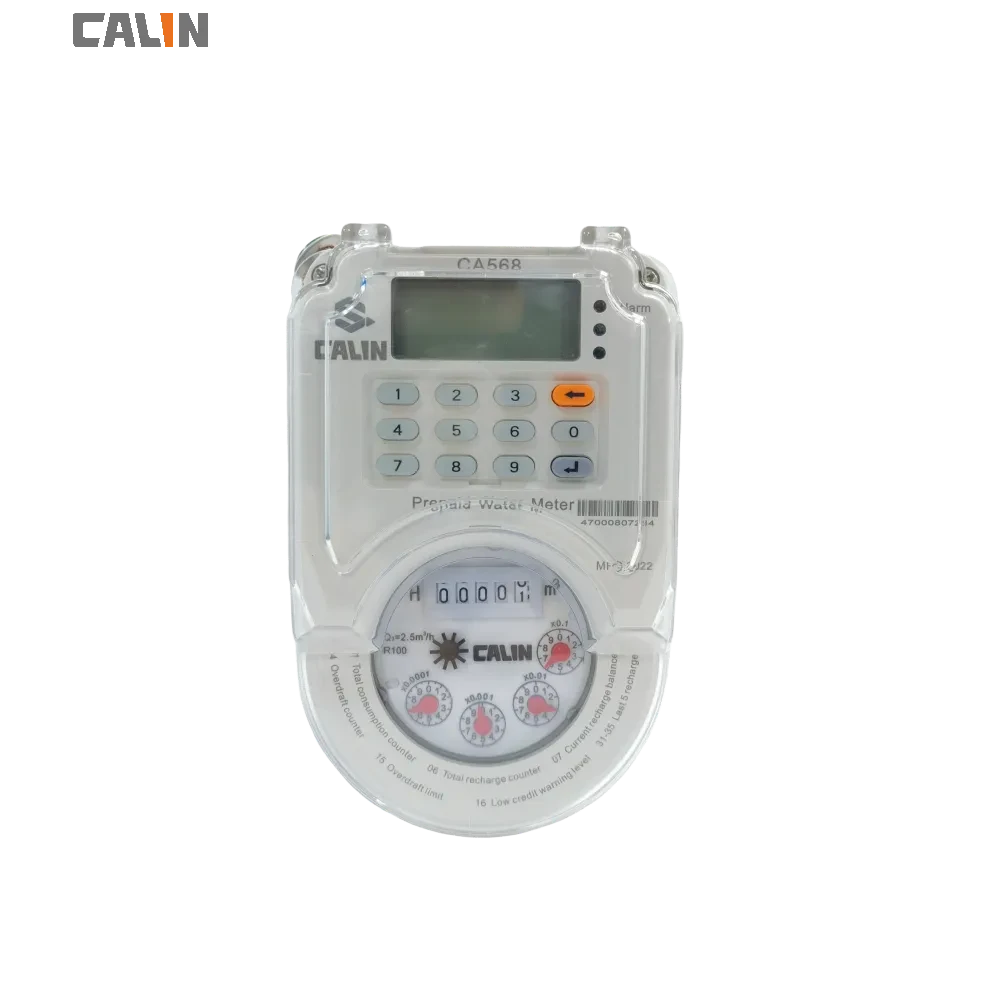

Keypad Prepayment Water Meter
The CA568 - A01 is a prepayment small - bore water meter. It is a rotary vane type water meter, making it an excellent choice for household water measurement. This meter is suitable for various revenue protection and user management scenarios.
Introduction
Introduction
The CA568 - A01 is a prepayment small - bore water meter. It is a rotary vane type water meter, making it an excellent choice for household water measurement. This meter is suitable for various revenue protection and user management scenarios.
Metrological Parameters
| Nominal size | DN | mm | In-line | ||
| 15 | 20 | 25 | |||
| Maximum flow rate | Q4 | m³/h | 3.125 | 5.0 | 7.875 |
| Ratio“R” | Q3/Q1 | m³/h | 100 | 100 | 100 |
| Permanent l flow rate | Q3 | 2.5 | 4.0 | 6.3 | |
| Transitional flow rate | Q2 | 1/h | 0.04 | 0.064 | 0.1 |
| Minimum flow rate | Q1 | 0.025 | 0.04 | 0.063 | |
| Maximum working pressure | Bar | 16 | |||
| Maximum pressure loss as complete unit including the shut off valve and piping | 0.63 | ||||
| Maximum working temperature | ℃ | 50 | |||
| Maximum reading | m³ | 99999 | |||
| Maximum Permissible Error(MPE) | % | Q1≦Q≦Q2: MPE = ± 5%Q2≦Q≦Q4: MPE = ± 2% | |||
Caractéristiques principales
- Meter Type: Rotary vane type, with dry or wet type available
- Shell Material: Copper shell
- Protection Level: IP68 protection
- Communication Modes: LoRa, RF, LoRaWAN communication options available
- Size Options: DN15, DN20, DN25 available
- Ratio: R100
- Keypad Option: Keypad on the meter is optional
- Certifications: MID and STS certified
- This water meter is designed to accurately measure water consumption. The availability of different communication modes allows for seamless integration into smart water management systems. The option to choose between dry and wet types, along with the different sizes, caters to diverse user requirements. The IP68 protection ensures its durability in various environmental conditions, and the MID and STS certifications guarantee its compliance with relevant standards.
Spécifications
- Permanent flow rate
- Q3 = 2.5 m³/h
- Range ratio
- R100
- Meter family
- CA568
Informations commerciales
- Origine
- Shenzhen, China
- Marque
- CALIN
Applications
- Residential, municipal and commercial water metering
- Prepayment and remote meter-reading projects
