CA168-MJ62

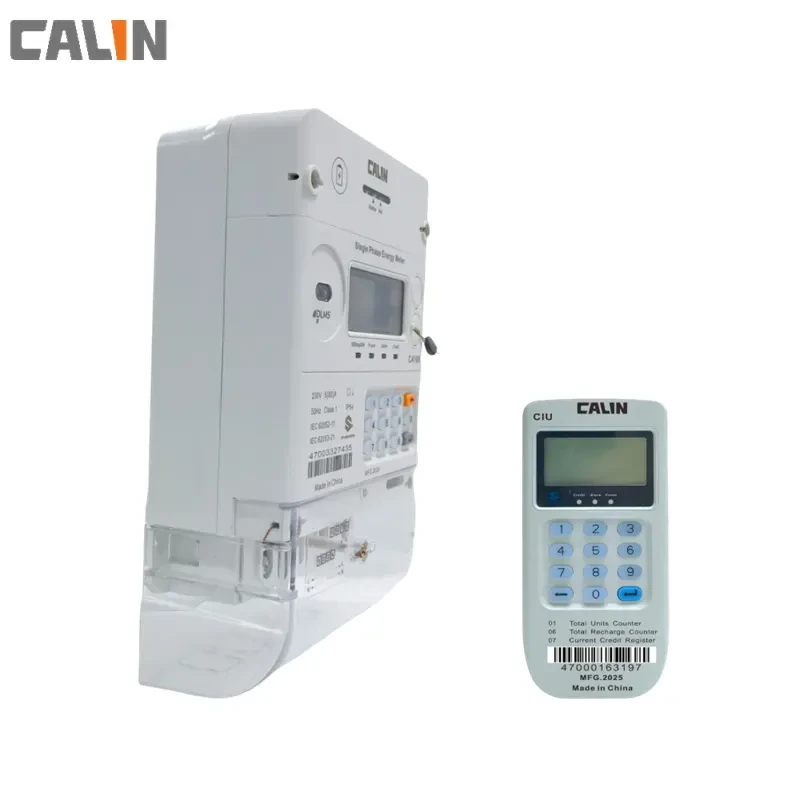

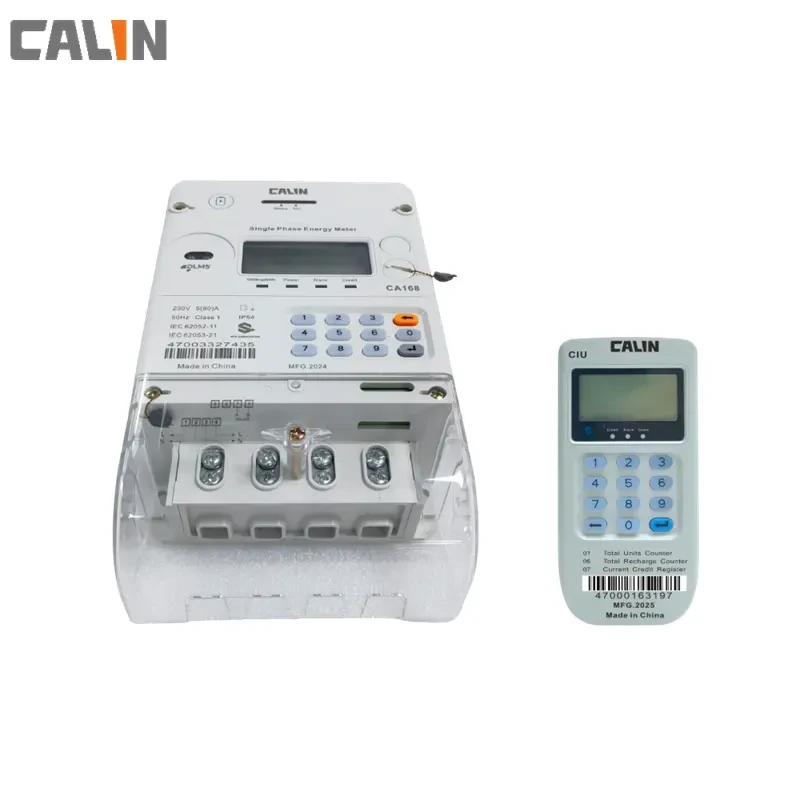

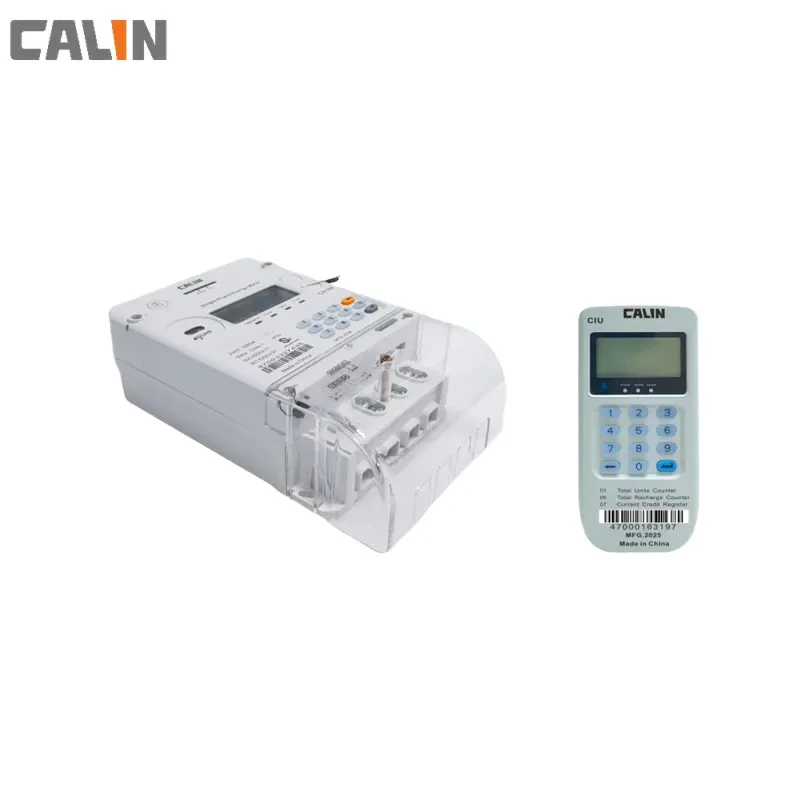

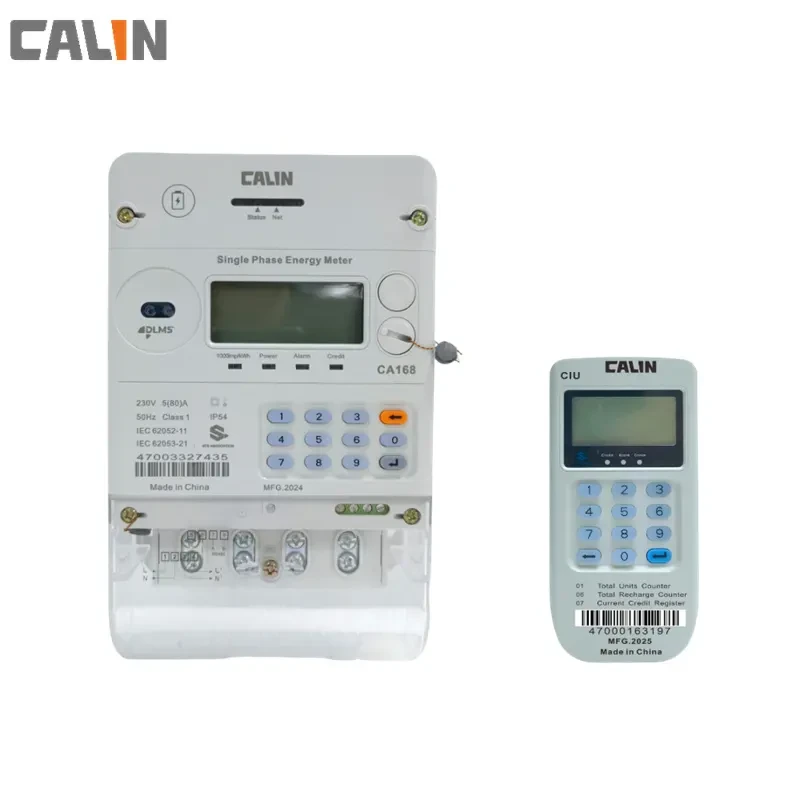

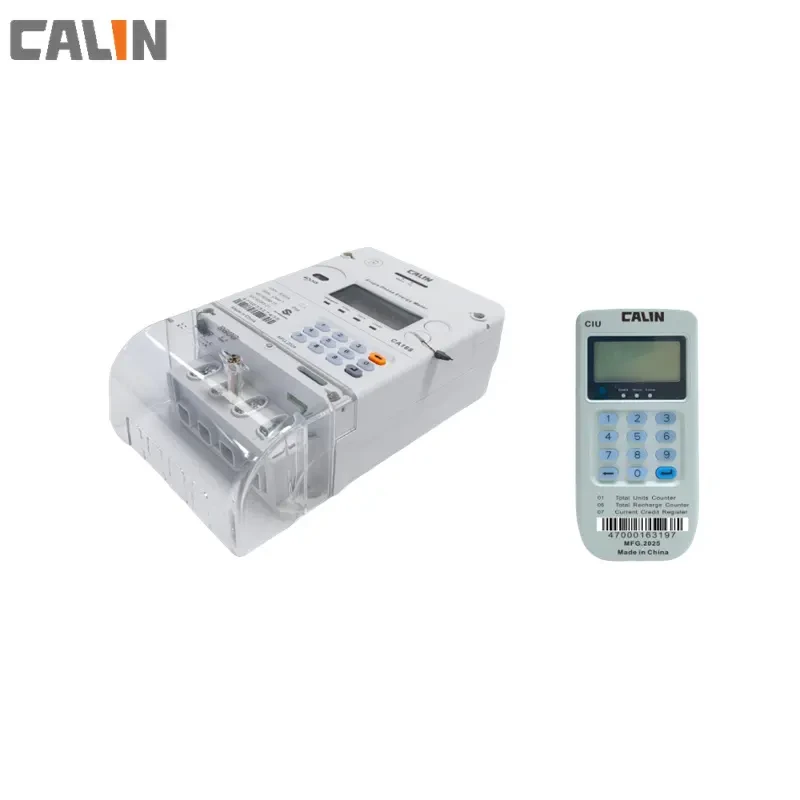

Single-Phase Split-Type Prepayment Energy Meter
The CA168-MJ62 is a new generation single-phase multi-function meter with modular design. The meter is used to measure electrical energy accurately for commercial and residential customers. The meter has a wide range of functions and the possibility of intelligent measurement, and its flexible communication module instrument can provide remote management and reading of various communication media.
Introdução
Introdução
Split Configuration for Increased Revenue Protection
The CIU (Customer Interface Unit) is optional. The MCU (Metering & Control Unit) and CIU is linked via Mbus 2 wires communication, galvanically-isolated PLC or RF wireless communication, the communication method is on request.
The CIU is installed within consumer’s home, while MCU is installed in a meter cabinet away from consumers.
Parameters
| Electrical parameters: | ||
| Voltage | ||
| Nominal voltage Un | 230V | |
| Limited voltage | 70%~120%Un | |
| Frequency | ||
| Nominal frequency fn | 50-60Hz | |
| tolerance | 5% | |
| Current | ||
| Basic current(Ib) | 5A | |
| Maximum current(Imax) | 60A (100A optional) | |
| Starting current(Ist) | 0.4%Ib | |
| Active energy constant | 1000imp/kWh | |
| Measurement Accuracy | ||
| Active energy to IEC62053-21 | Class1.0 | |
| Burden | ||
| Voltage circuit | <2W <8VA | |
| Current circuit | <1VA | |
| Temperature range | ||
| Operation meter | -25℃to+70℃ | |
| Storage | -40℃to+85℃ | |
| Insulation | ||
| Insulation level | 4kV rms 1min | |
| Voltage impulse withstand | 8kV 1.2/50μs | |
| Insulation System Classification | Protective Class II | |
| Electro Magnetic Compatibility | ||
| Electrostatic discharges | ||
| Contact discharge | 8kV | |
| Air discharge | 16kV | |
| Electromagnetic RF fields | ||
| 27MHz to 500MHz typical | 10V/m | |
| 100kHz to 1GHz typical | 30V/m | |
| Fast transient burst test | 4kV | |
| Mechanical requirements | ||
| Meter shell Protection Rate | IP54 | |
| Insulation System Classification | Protective Class II | |
| Maximum cable size | 8 mm | |
Principais recursos
- Dual relay.
- Multi tariff
- DLMS/COESM
- Infrared port/RS485
- Tamper detection and record
- LCD display, read without power
- Double CT for Phase and Neutral line
- Disconnects on overload and no credit
- Prepayment/post-payment mode switching
- Plug& Play module PLC/GPRS/3G/4G/RF
- Programmable load limit & Low credit warning
- Active/reactive energy measurement
Especificações
- Nominal voltage
- 230V
- Frequency
- 50-60Hz
- Accuracy
- Class 1.0
- Protection
- IP54
- Metering system
- Single-phase
Informações comerciais
- Origem
- Shenzhen, China
- Marca
- CALIN
Aplicações
- Residential and commercial electricity metering
- Utility revenue protection and AMI projects
