Components
Supercapacitor
Supercapacitor
Model: SCCDPR2R7106QRH125020EP-N; Rated capacitance: 10F; Rated voltage: 2.7V; Capacitance tolerance: -10%~+30%
Introduction
Introduction

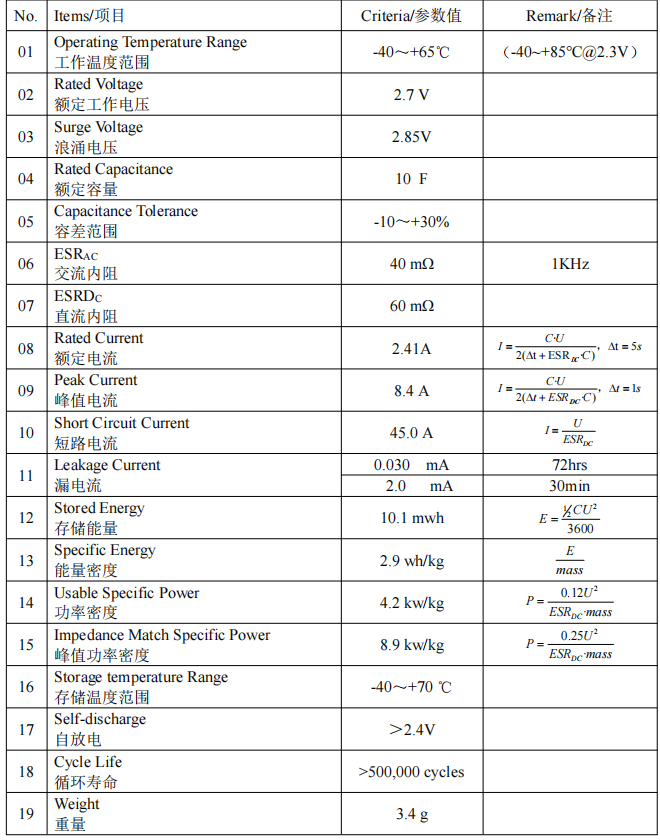

Product Details

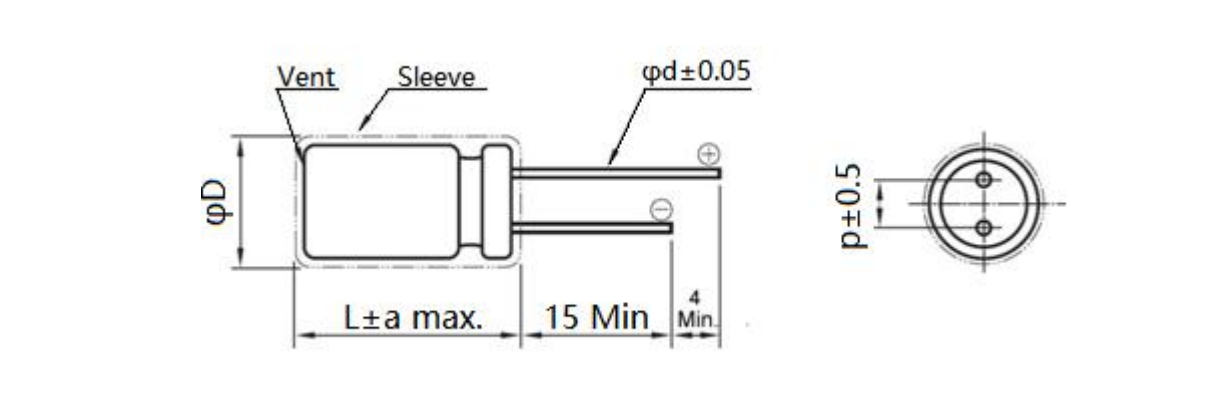

| Items | Criteria | Items | Criteria |
| D | 12.5+0.5mm | L | 20±2 mm |
| p | 5.0 ±0.5 mm | d | 0.6 ±0.05 mm |
