Monofásico
CA168-L01

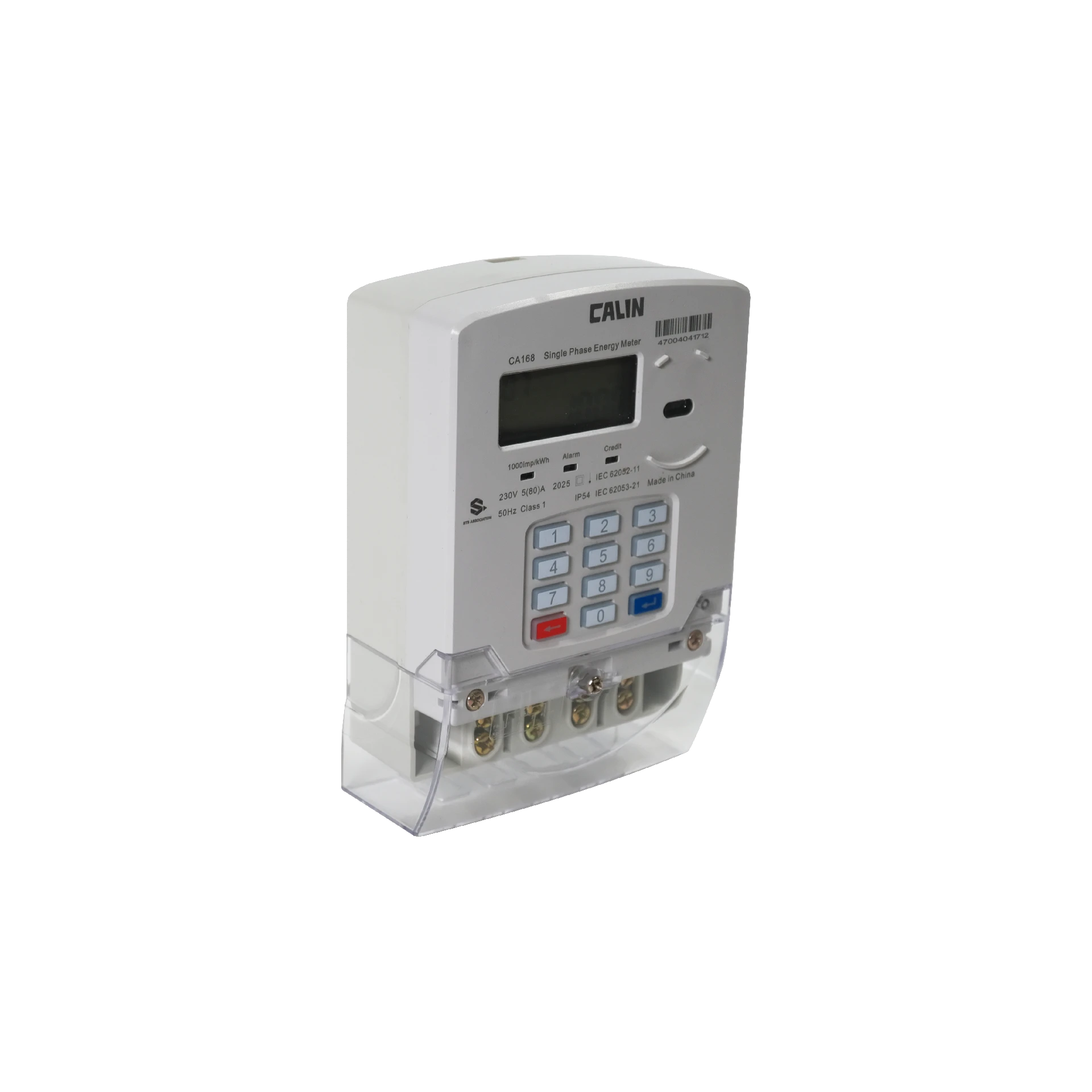

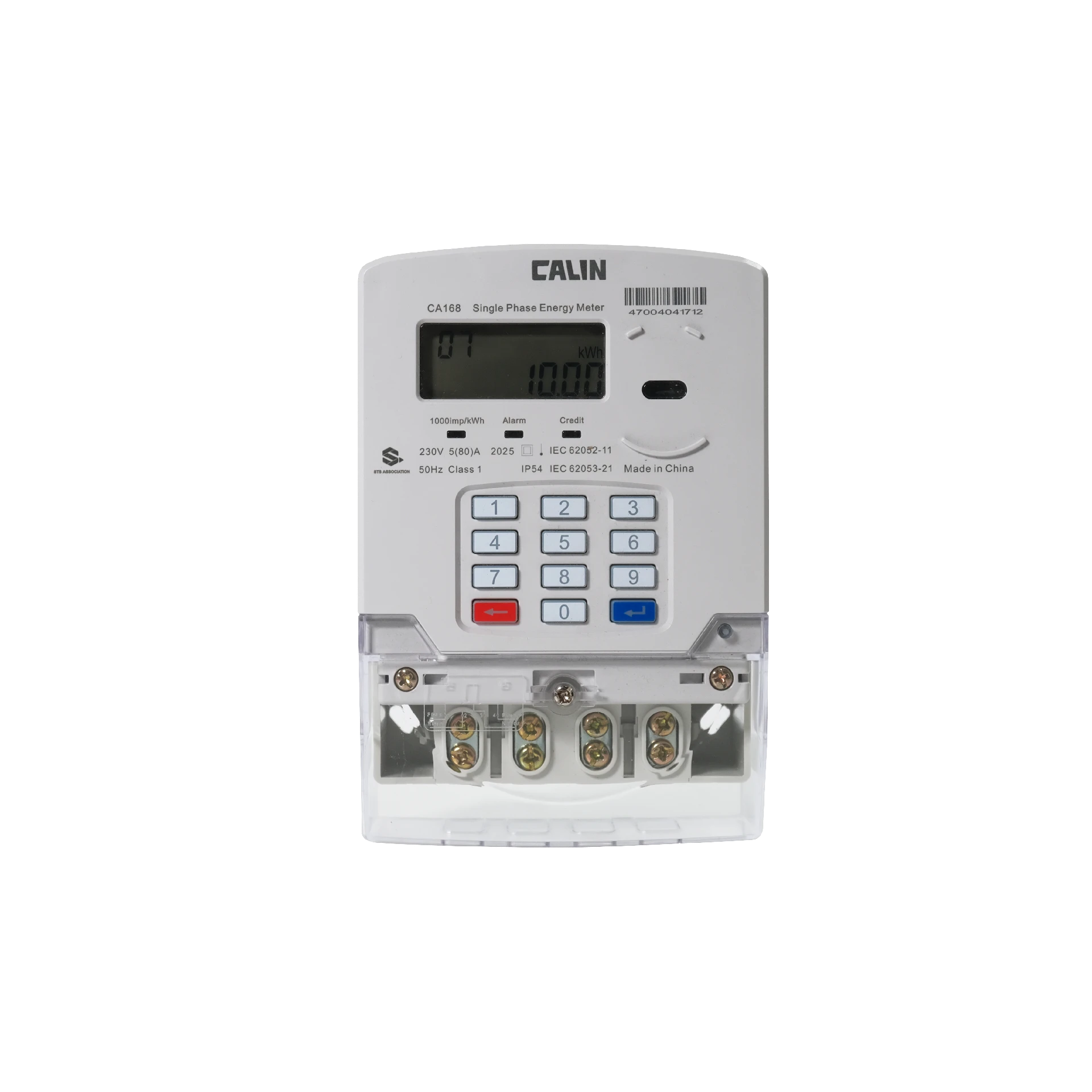

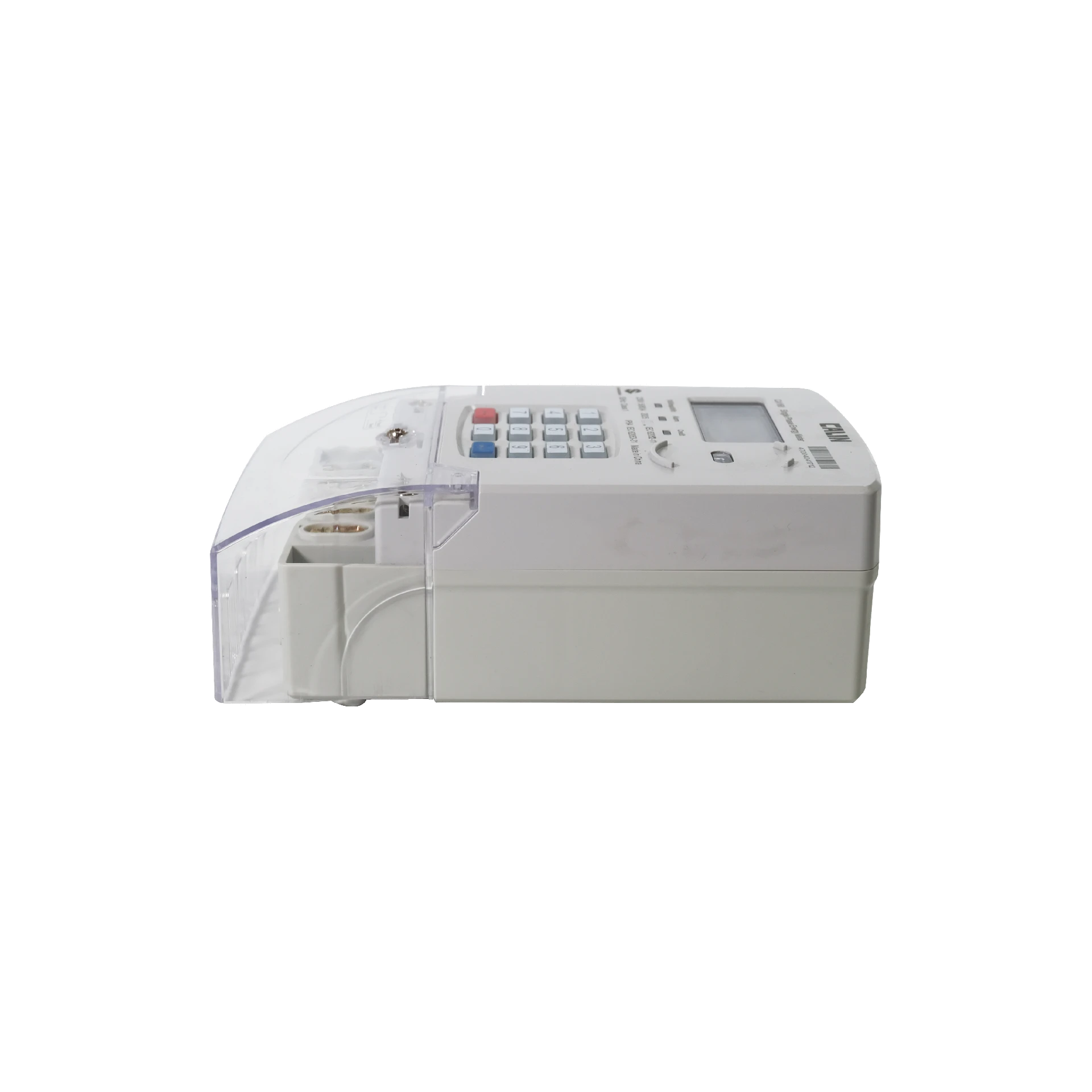

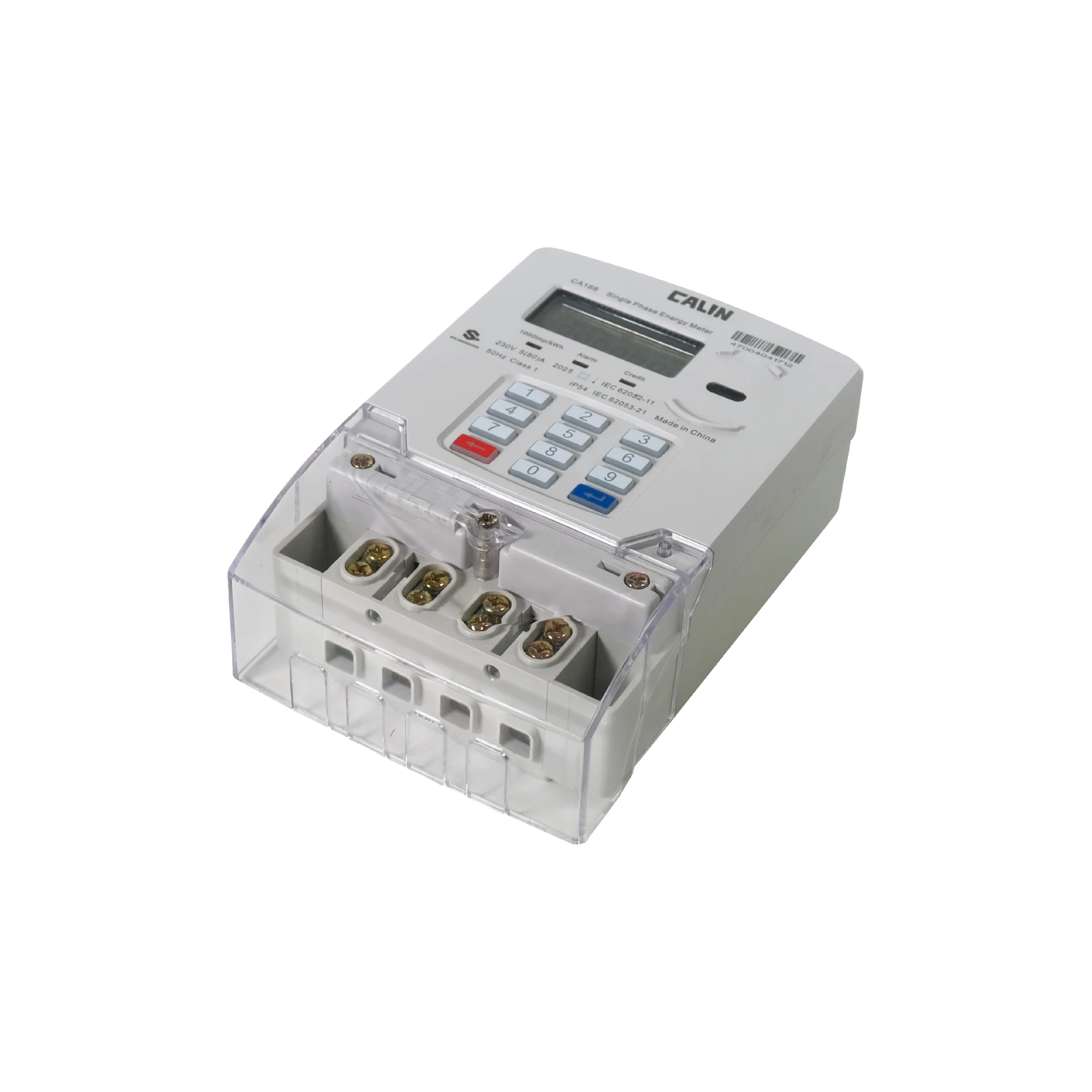

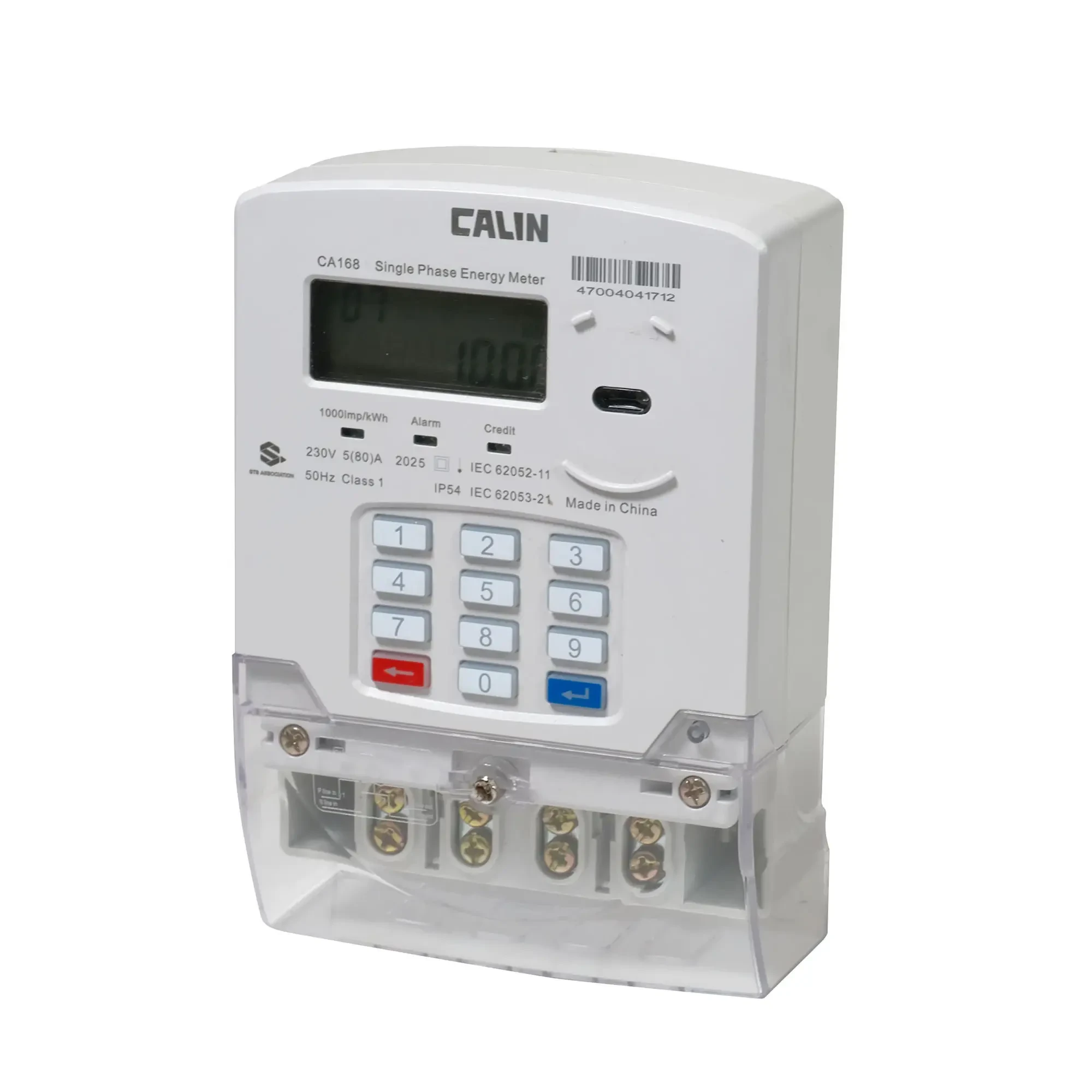

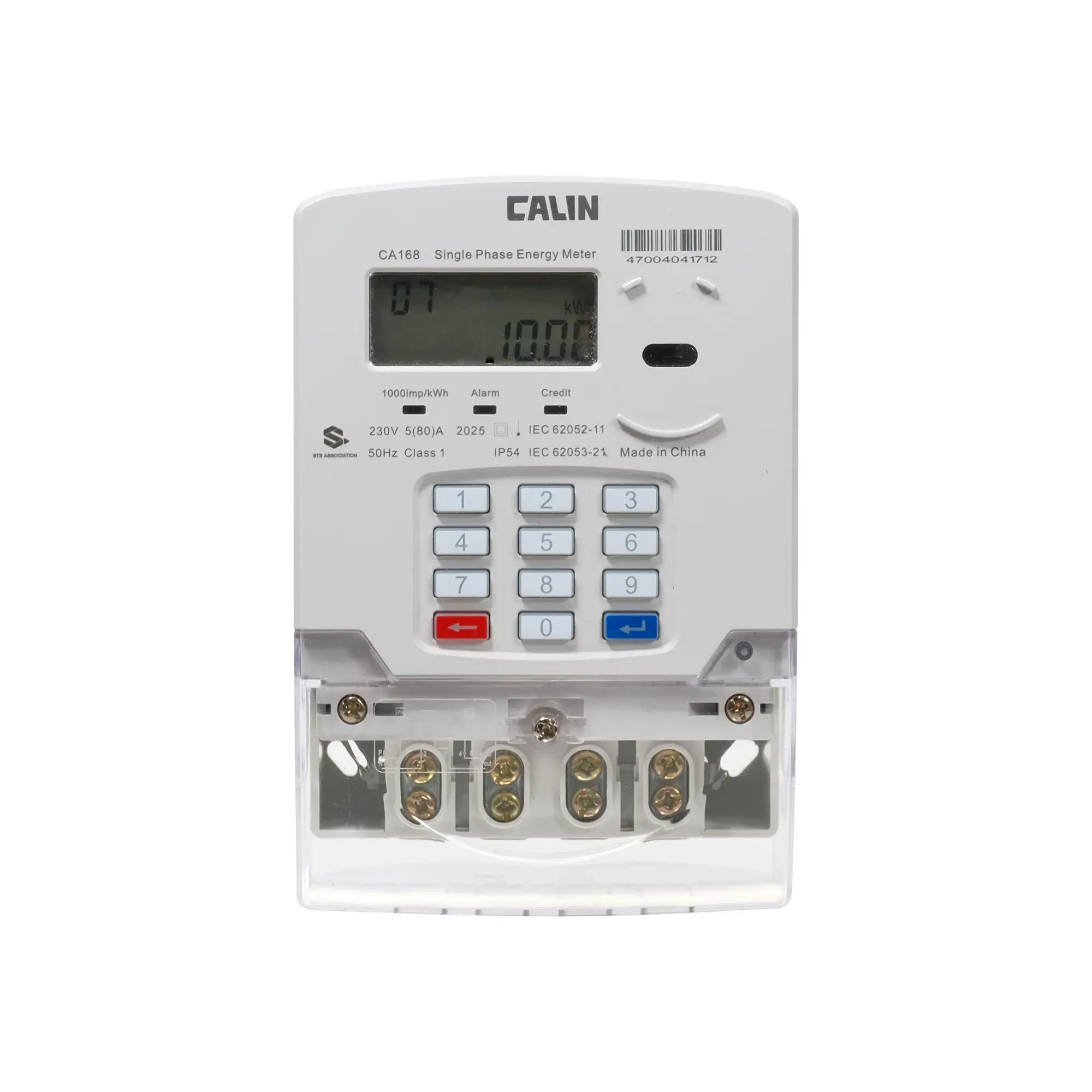

Prepaid Electricity Meter for Enhanced Residential Energy Management
The CA168-L01 is a state-of-the-art prepaid electricity meter, designed to offer residential customers a reliable and efficient means of managing their energy consumption. This single-phase, two-wire meter adheres to relevant IEC standards for safety and accuracy.
Introducción
Introducción
One of the key features of the CA168-L01 is its advanced tamper detection capabilities. The meter is equipped with sophisticated algorithms and sensors to detect attempts at unauthorized access or manipulation, protecting revenue and ensuring accurate billing.
The CA168-L01 user-friendly interface allows customers to monitor electricity consumption and prepaid balance. This supports more informed energy decisions, responsible consumption and potential cost savings.
With IEC compliance, advanced tamper detection and a durable design, the CA168-L01 provides a reliable way for residential customers to manage electricity usage and expenses.
Especificaciones
- Nominal voltage Un
- 230V
- Limited voltage
- 70%~120%Un
- Nominal frequency fn
- 50-60Hz
- tolerance
- +5%
- Basic current(Ib)
- 5A
- Maximum current(Imax)
- 80A (100A optional)
- Starting current(Ist)
- 20mA
- Active energy constant
- 1000imp/kWh
- Active energy to IEC62053-21
- Class1.0
- Voltage circuit
- <2W <8VA
- Current circuit
- <1VA
- Operation meter
- -25℃ to+70℃
- Storage
- -40℃ to+85℃
- Insulation level
- 4kV rms 1min
- Voltage impulse withstand
- 8kV 1.2/50 μs
- Insulation System Classification
- Protective Class II
- Contact discharge
- 8kV
- Air discharge
- 15kV
- 27MHz to 500MHz typical
- 10V/m
- 100kHz to 1GHz typical
- 30V/m
- Fast transient burst test
- 4kV
- Meter shell Protection Rate
- IP54
- Maximum cable size
- 8 mm
Información comercial
- Origen
- China
- Marca
- Calin
- Certificación
- MID
- Cantidad mínima de pedido
- 500
