CA568-J01

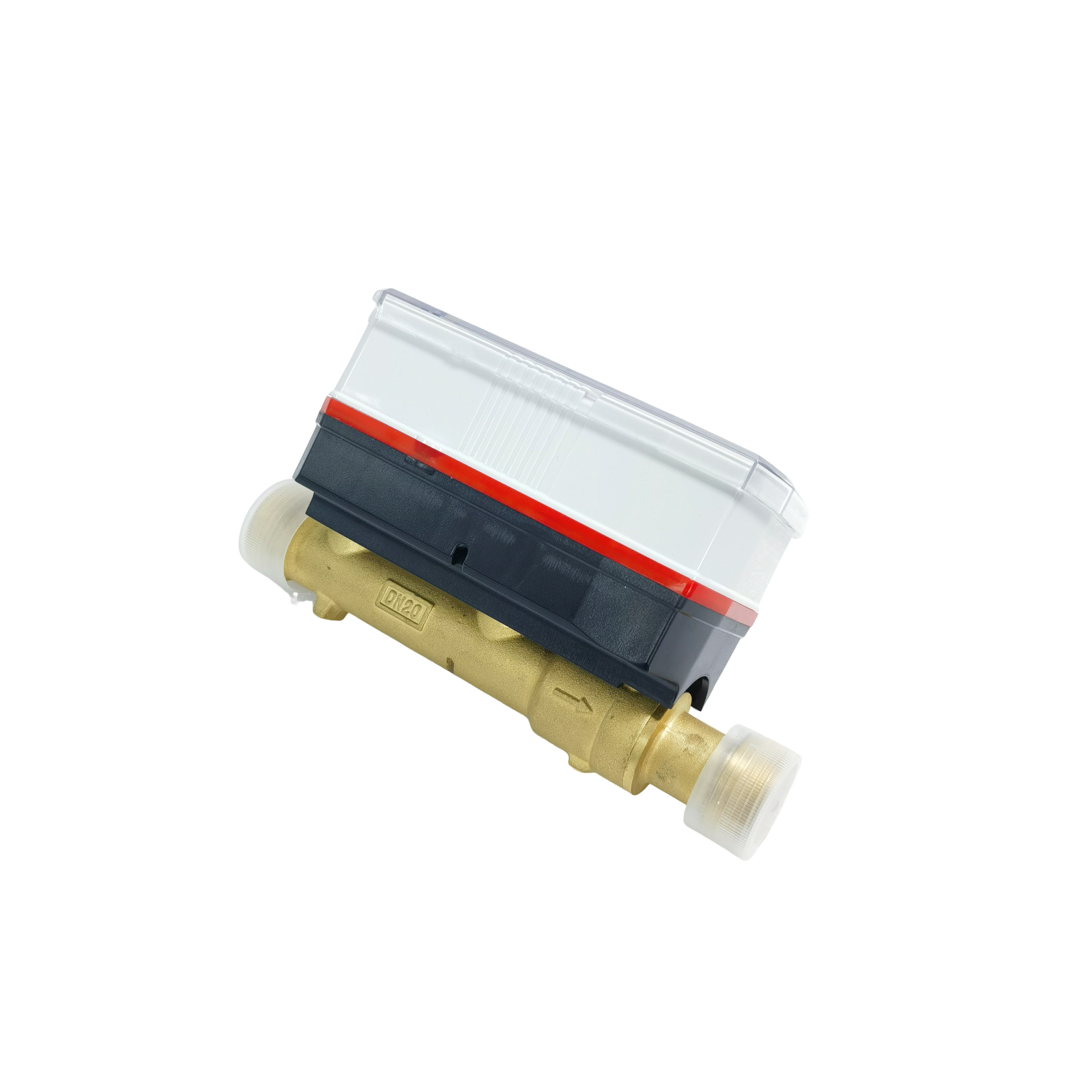

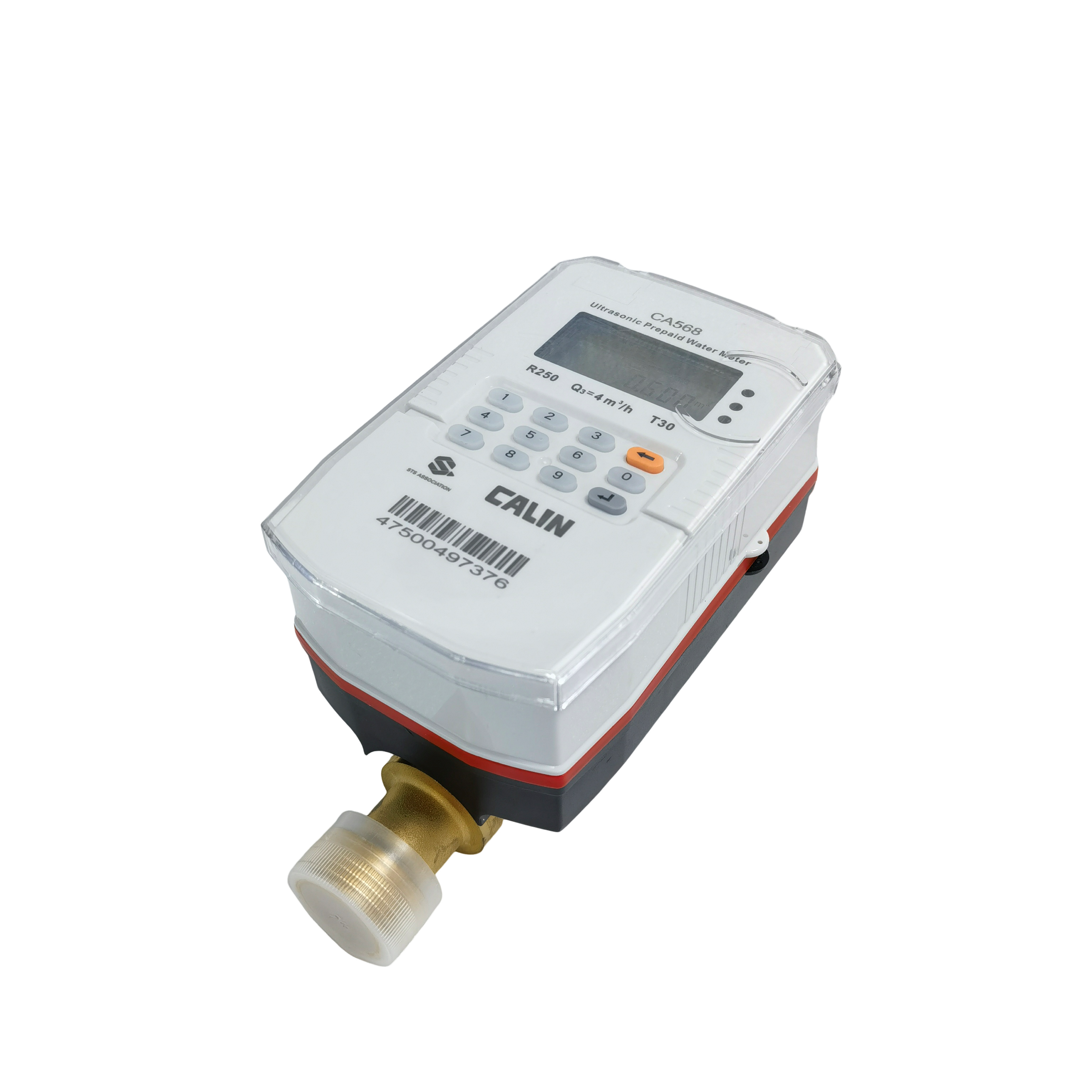

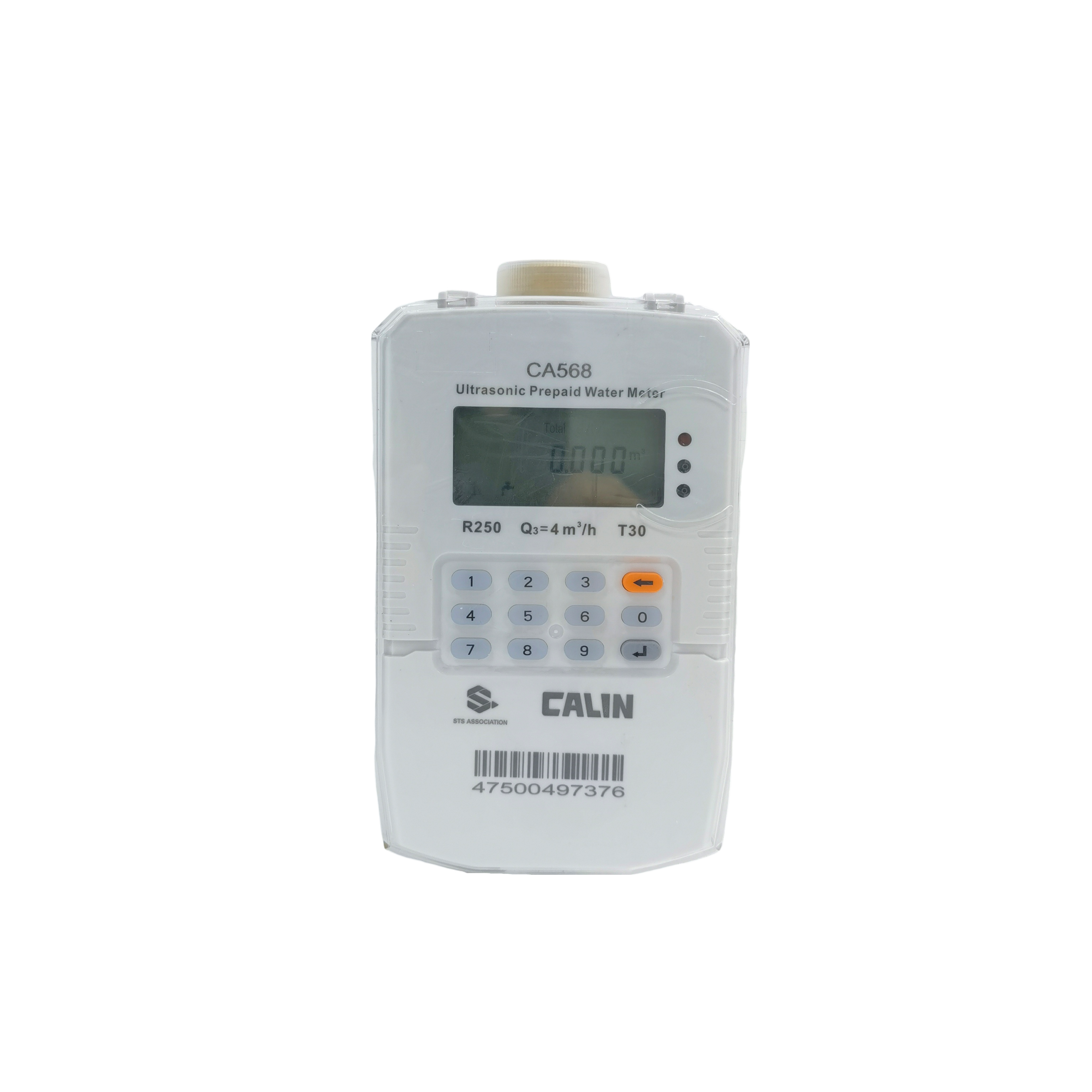

Ultrasonic Type Smart Prepaid Water Meter
CA568-J01 is an STS pre-paid ultrasonic water meter renowned for its high accuracy, reaching up to R250. It serves excellently for revenue protection and user management. Equipped with a Customer Interface Unit (CIU), it facilitates inputting recharge tokens and information codes. Its communication method is LORA/LoraWAN, with tariff charging and AMR data transmission as its primary features.
Introducción
Introducción
Características principales
- High accuracy up to R250
- Minimal pressure loss
- IP68 water-tight rating
- Mechanical movement-free design for longevity
- Up to 10 years of battery life
- Reading via RF-LORA and GPRS/3G system
Metrological Parameters
AMI/AMR Solution
It's an advanced AMI system leveraging LoRaWAN for remote meter reading.
It supports bi-directional communication, daily data reporting, remote recharge, and control functionalities.
The process involves the gateway connecting with nearby water meters via LoRaWAN, then uploading data to the backend via 4G or Ethernet.
Parameters
Nominal Sizemm152025Minimum(Q1)m³/h0.0100.0160.025Transitional(Q2)m³/h0.0160.2560.04Permanent(Q3)m³/h2.54.06.3Overload(Q4)m³/h3.1255.07.875Range ratio=Q3/Q1250250250Maximum Operation Pressure1.6MpaMaximum Pressure Loss△P<63KpaMaximum Working Temperature55℃Maximum Permissible Error(MPE)Q1≦Q≦Q2: MPE = ±5%Q2≦Q≦Q4: MPE = ±2%
Información comercial
- Origen
- Shenzhen, China
- Marca
- CALIN
Aplicaciones
- Residential, municipal and commercial water metering
- Prepayment and remote meter-reading projects
