PCB for 1P Static meter
PCB for 1P Static meter

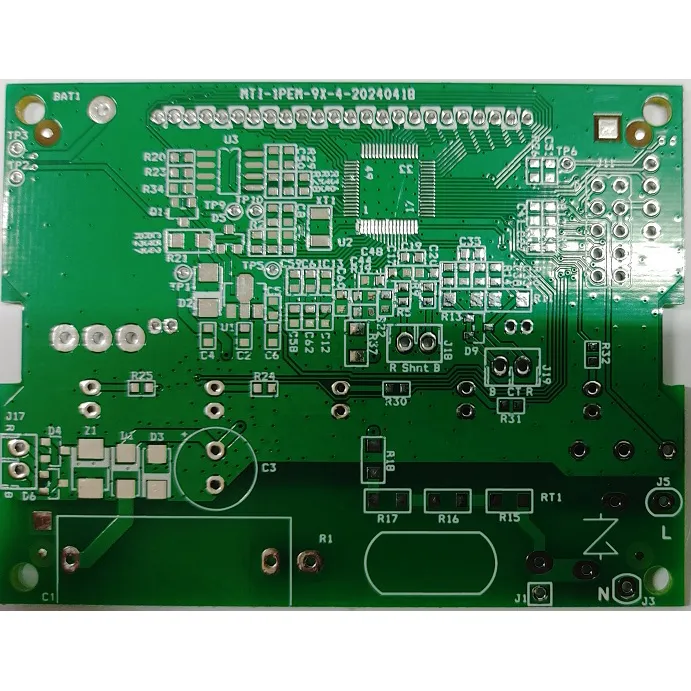

PCB name: MTI-1PEM-9X-4-20240418; PCB size: 3.025x2.312 inch; Layers: 2.
Introducción
Introducción
Product Details
PCB design information
| PCB name | MTI-1PEM-9X-4-20240418 |
| PCB size (single module) | 3.025x2.312 inch |
| Layers | 2 |
| Number of PCBs in ONE panel | 9 |
| Board Thickness | 1.6mm |
| Copper Foil Thickness | 35um |
| Material | FR‐4 KB6160, 1oz, Cu, (Finish) |
| Finishing | Lead free HASL |
| Solder mask (BOT) | Green |
| Solder Mask Type | KGS‐6188G |
| V-CUT | yes |
| Electrical Test / E. test | Yes/Mark at board edge |
| BOW and Twist | ≤0.75% |
| Hardness test | 6 H |
Especificaciones
- PCB name
- MTI-1PEM-9X-4-20240418
- PCB size (single module)
- 3.025x2.312 inch
- Number of PCBs in ONE panel
- 9
