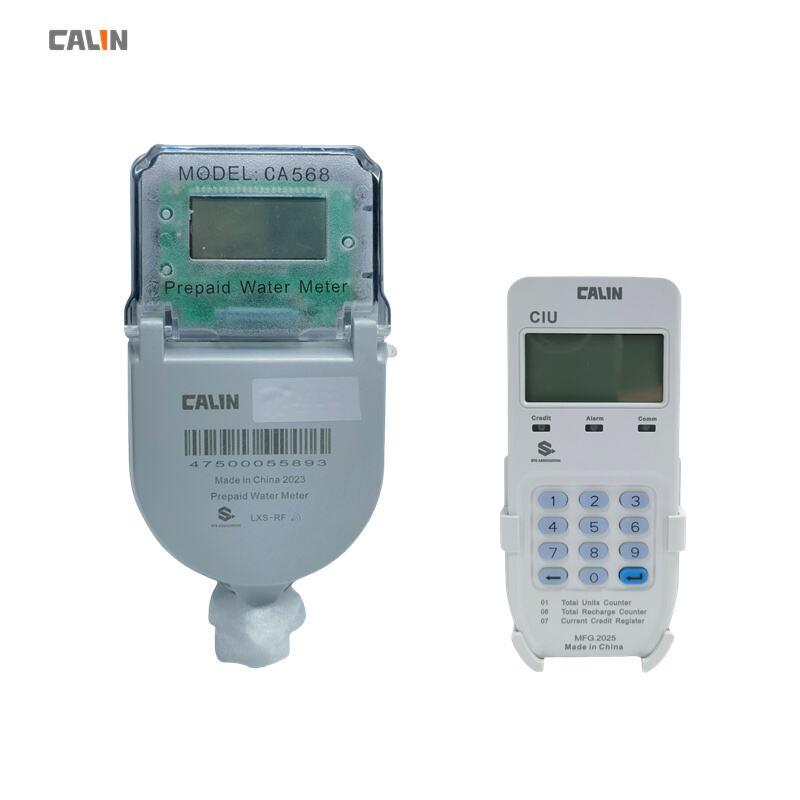

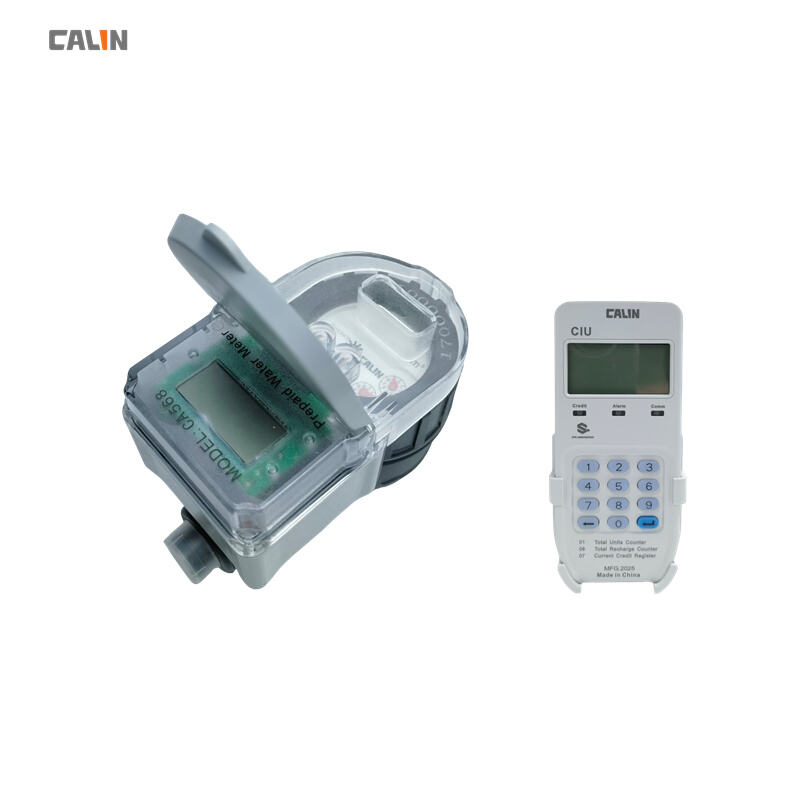

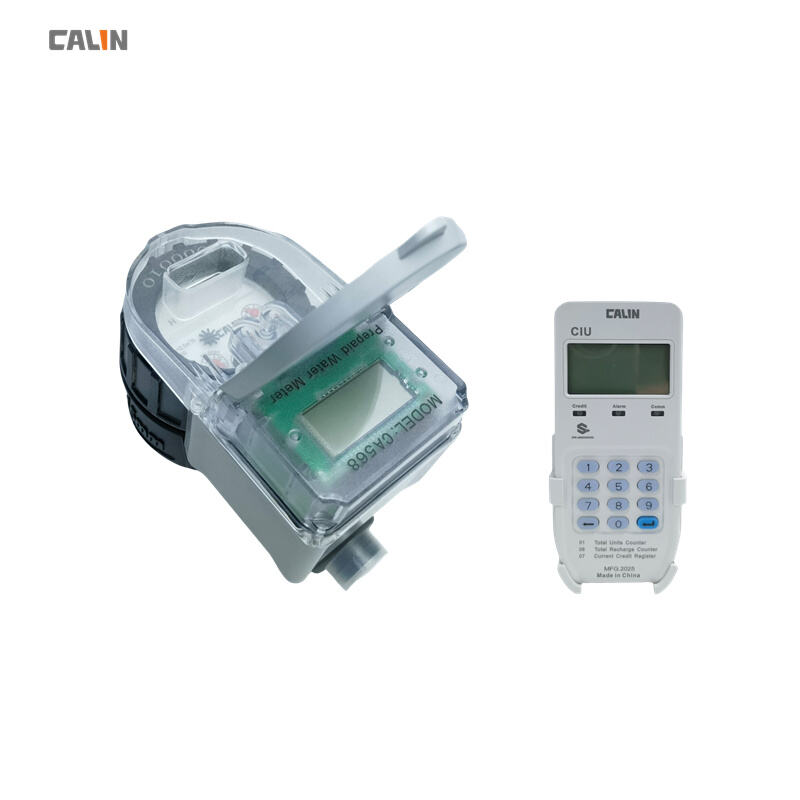

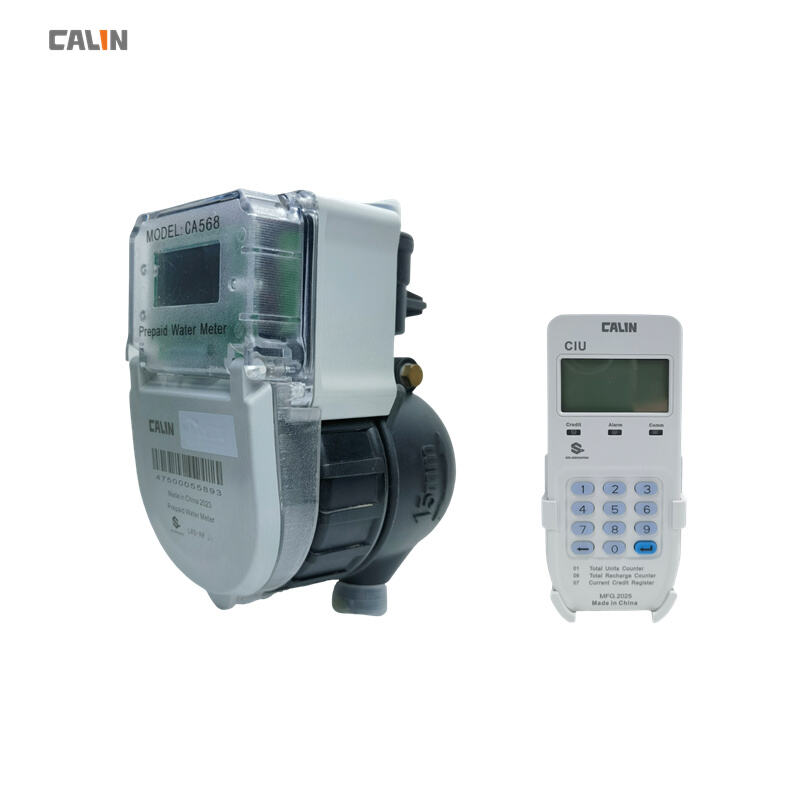

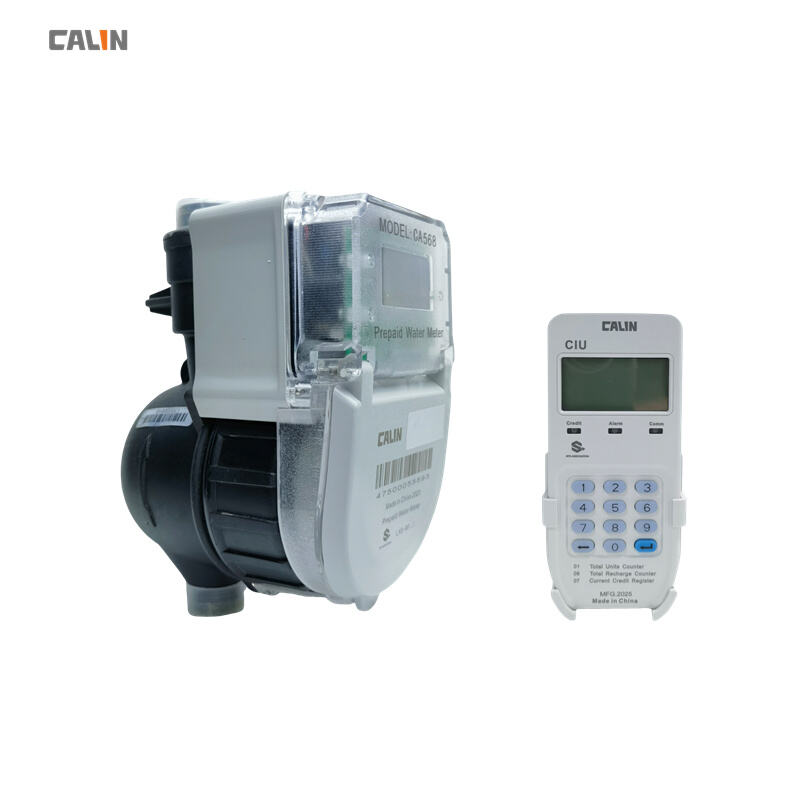

The CA568-C59 is an electronic valve controlled water meter that complies with STS. It is an ideal household water meter for revenue protection and user management. The CA568-C59 is equipped with a Customer Interface Unit (CIU) for inputting recharge tokens and information codes. Its communication mode is RF-LORA. Tariff charging and AMR data transmission are its two highlight functions.
Main Features
STS compliant
IP68 protection
Battery life 10 years
Brass / plastic meter body (optional)
Pre-programmable low credit warning
Non- return valve preventing back-flow
Prepaid and post-paid hybrid (optional)
|
Nominal size |
DN |
mm |
In-line |
||
|
|
|
|
15 |
20 |
|
|
Maximum flow rate |
Q4 |
m³/h |
3.125 |
5.0 |
|
|
Ratio“R” |
Q3/Q1 |
m³/h |
160 |
160 |
|
|
Permanent l flow rate |
Q3 |
|
2.5 |
4.0 |
|
|
Transitional flow rate |
Q2 |
1/h |
25 |
40 |
|
|
Minimum flow rate |
Q1 |
|
15.625 |
25 |
|
|
Maximum working pressure |
Bar |
25 |
|||
|
Maximum pressure loss as complete unit including the shut off valve and piping |
|
|
|||
|
Maximum working temperature |
℃ |
50 |
|||
|
Maximum reading |
m³ |
99999 |
|||
|
Maximum Permissible Error(MPE) |
% |
Q1≦Q≦Q2: MPE = ± 5% Q2≦Q≦Q4: MPE = ± 2% |
|||
