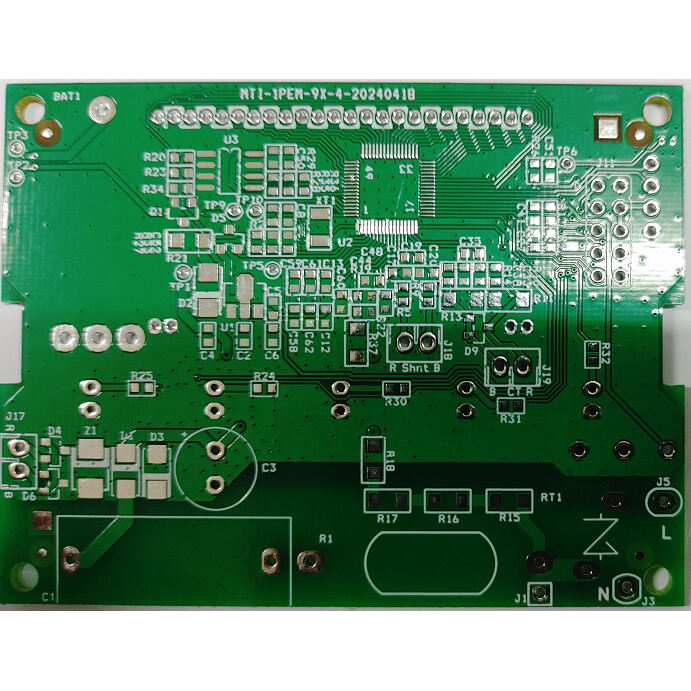

PCB for 1P Static meter

Description：

PCB name： MTI-1PEM-9X-4-20240418
PCB size (single module) ：3.025x2.312 inch
Layers：2
Board Thickness：1.6mm Green
Copper Foil Thickness：35um
Material： FR‐4 KB6160, 1oz, Cu, (Finish)

Appurtenance:

Product Brochure:DOWNLOAD

Introduction

Introduction

Product Details

PCB design information
PCB name	MTI-1PEM-9X-4-20240418
PCB size (single module)	3.025x2.312 inch
PCB panel size with extended PCB
Layers	2
Number of PCBs in ONE panel	9
Required PCB quantity
Board Thickness	1.6mm
Copper Foil Thickness	35um
Material	FR‐4 KB6160, 1oz, Cu, (Finish)
Finishing	Lead free HASL
Solder mask (BOT)	Green
Solder Mask Type	KGS‐6188G
V-CUT	yes
V-CUT Thickness
Electrical Test / E. test	Yes/Mark at board edge
BOW and Twist	≤0.75%
Thermal Stress Test	288°C/10 Sec
Via hole
P.T.H. Thickness	20um
Silk Screen Layer	White
Date code week/year Print on silk screen layer
Component Marking Type	M‐211(W)
Tin/Lead Thickness	≥1um
Top and Bottom Registration	+/‐ 3Mills
Solder test	≥95% with plum tin plating
Hardness test	6 H
