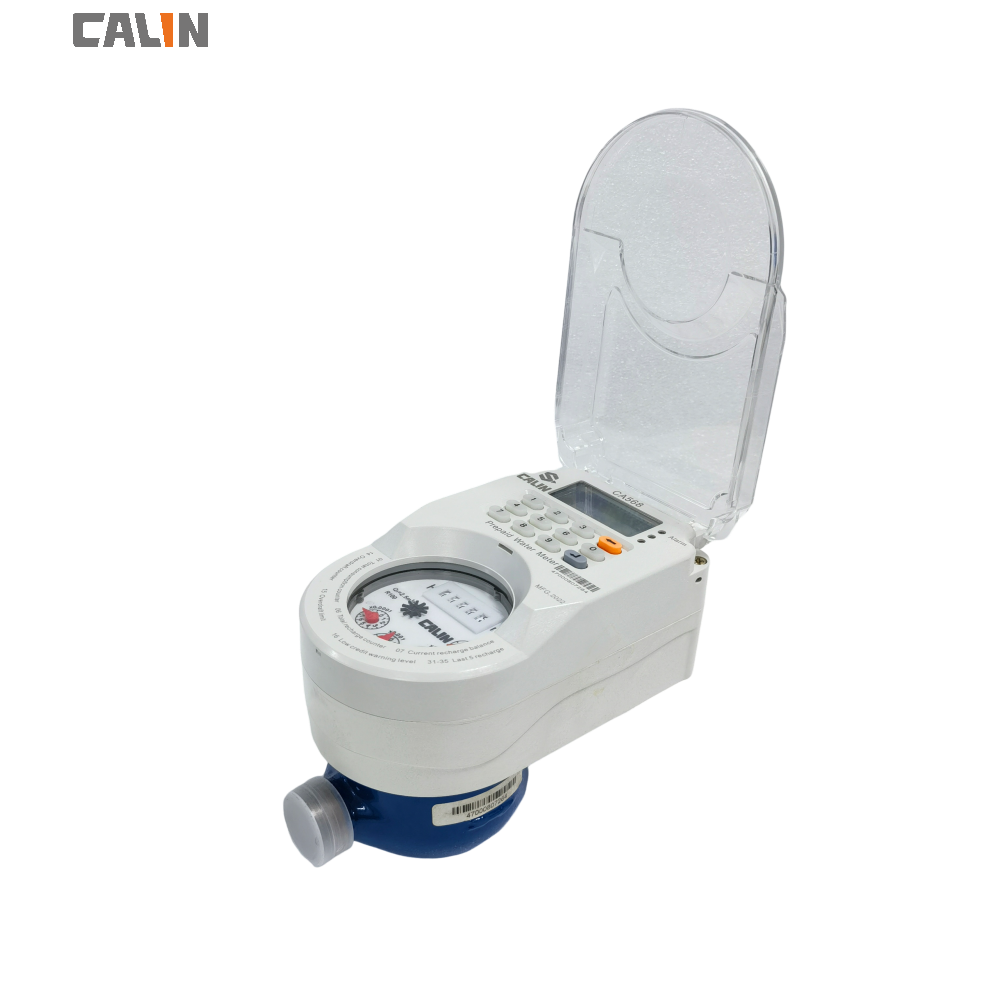

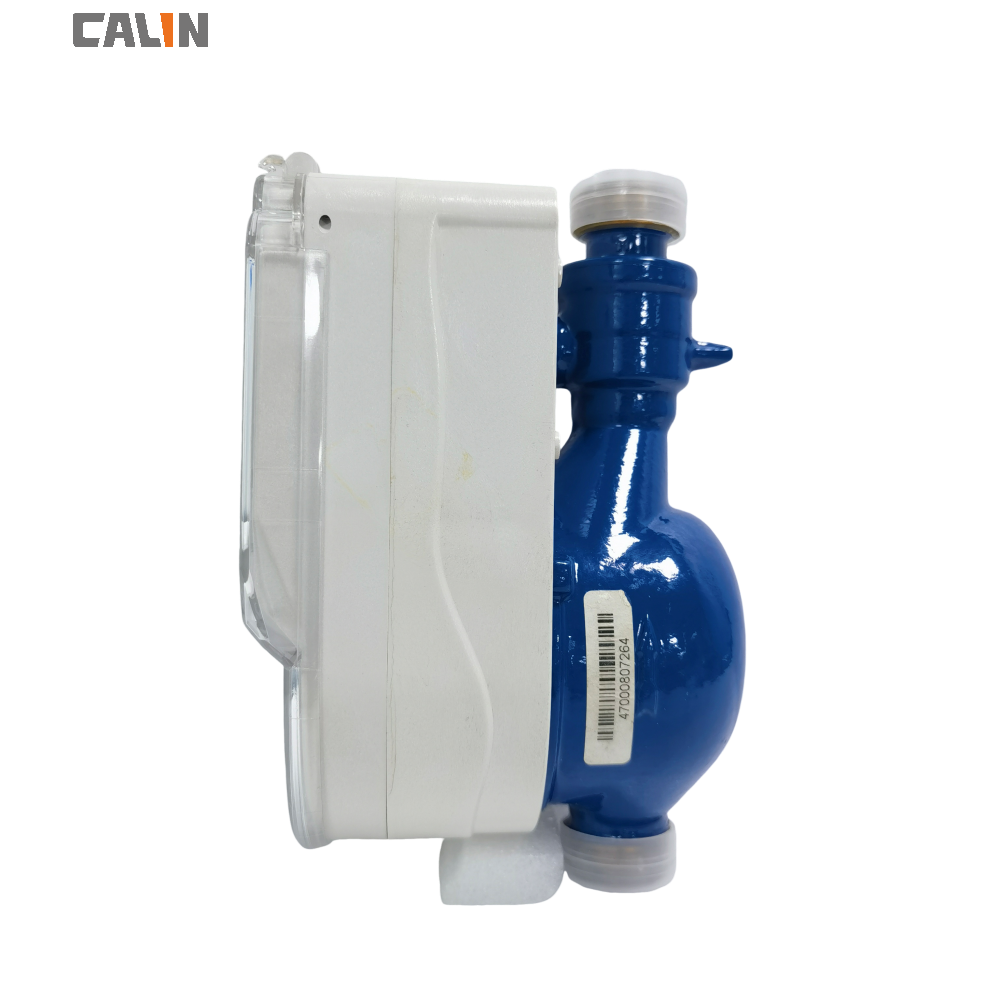

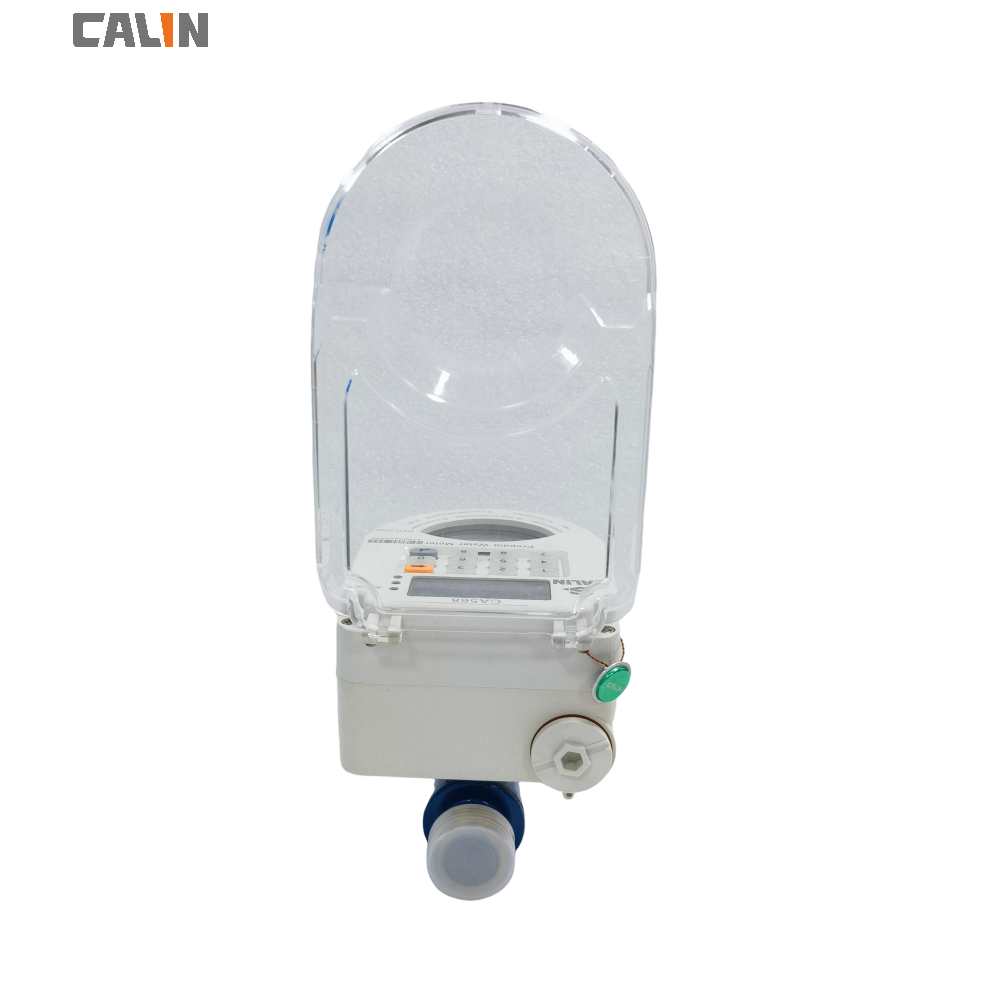

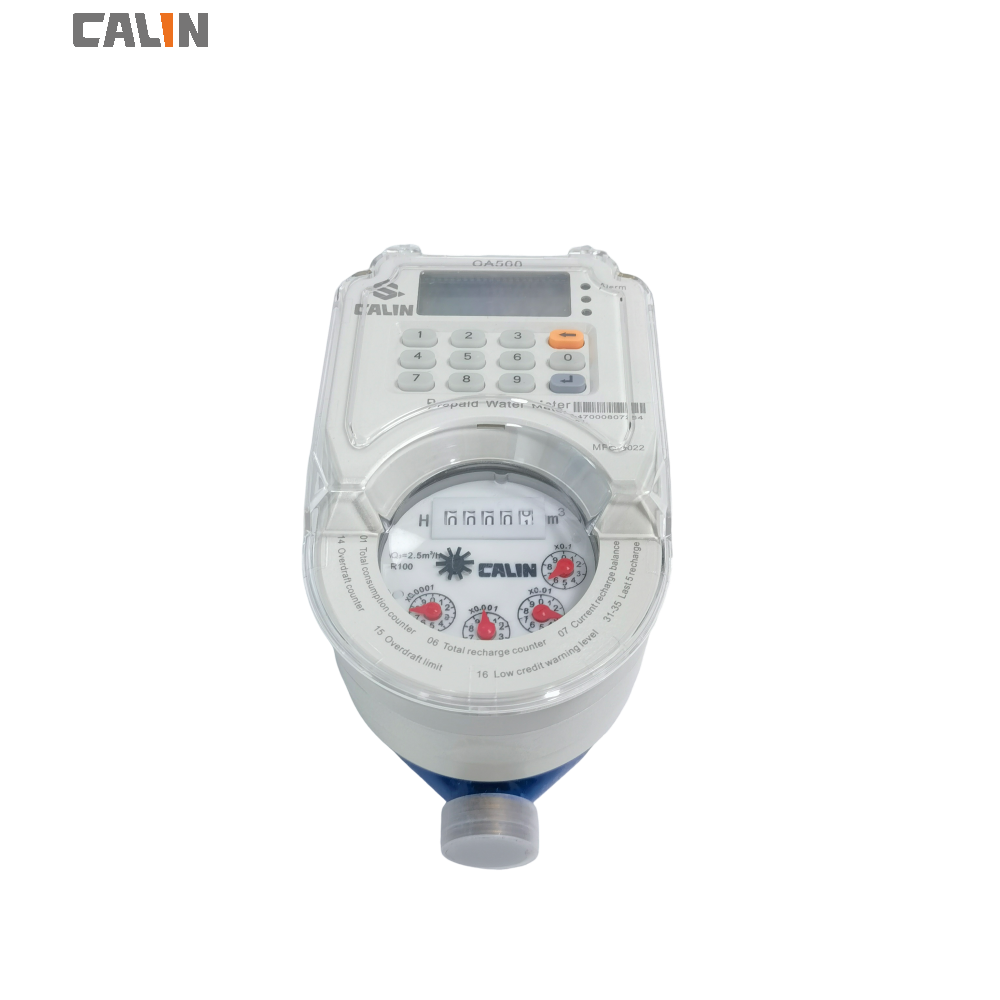

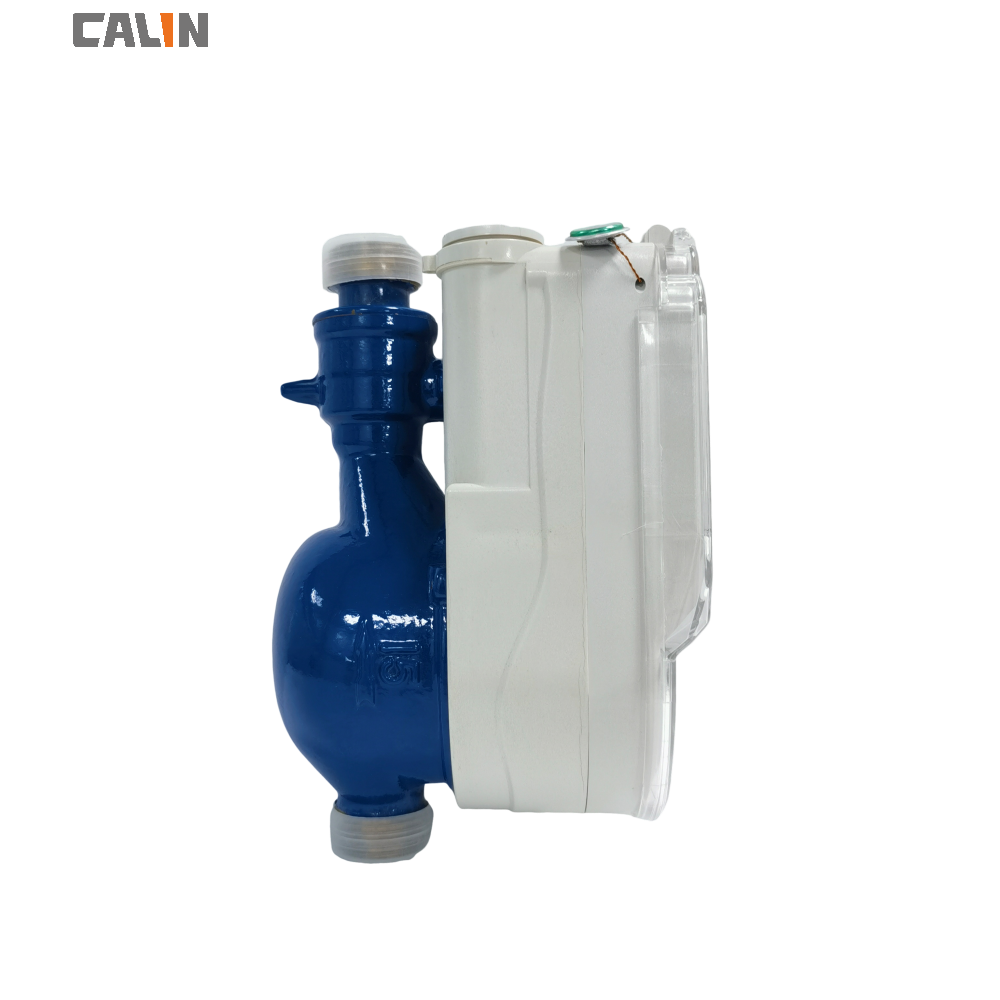

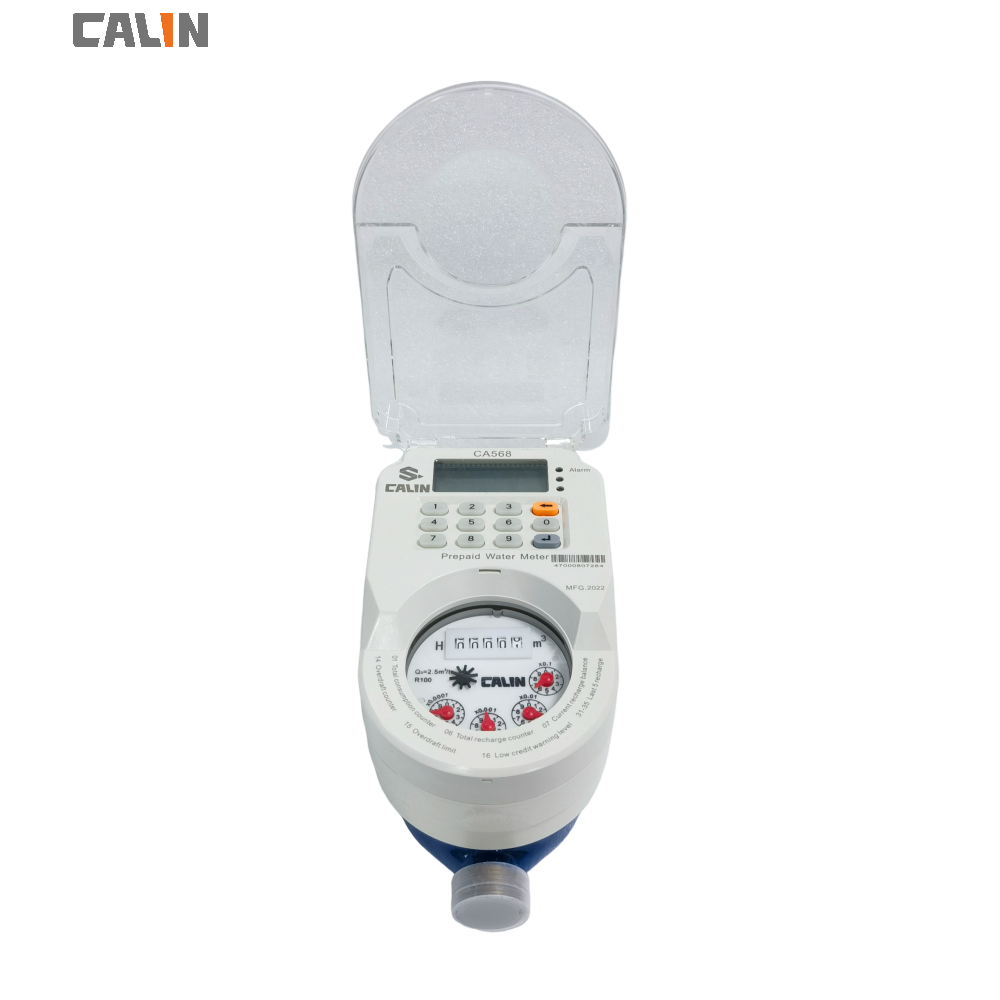

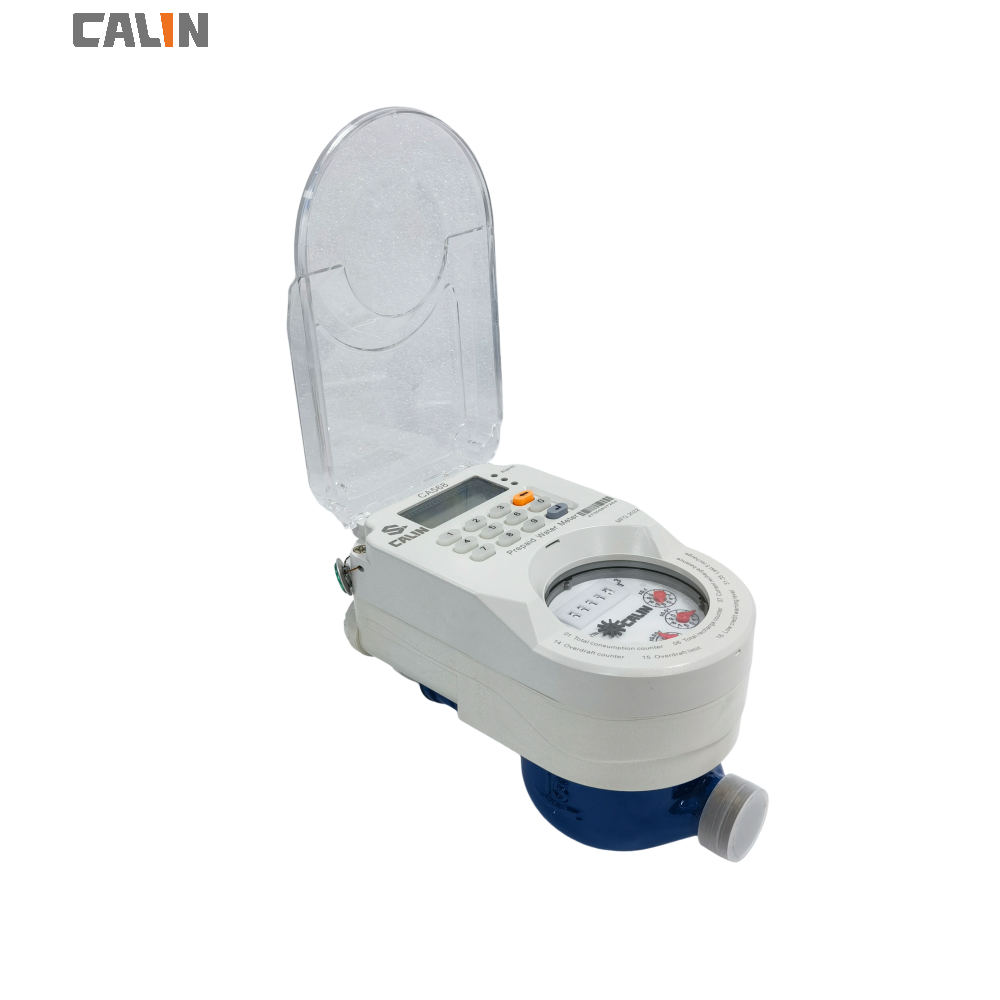

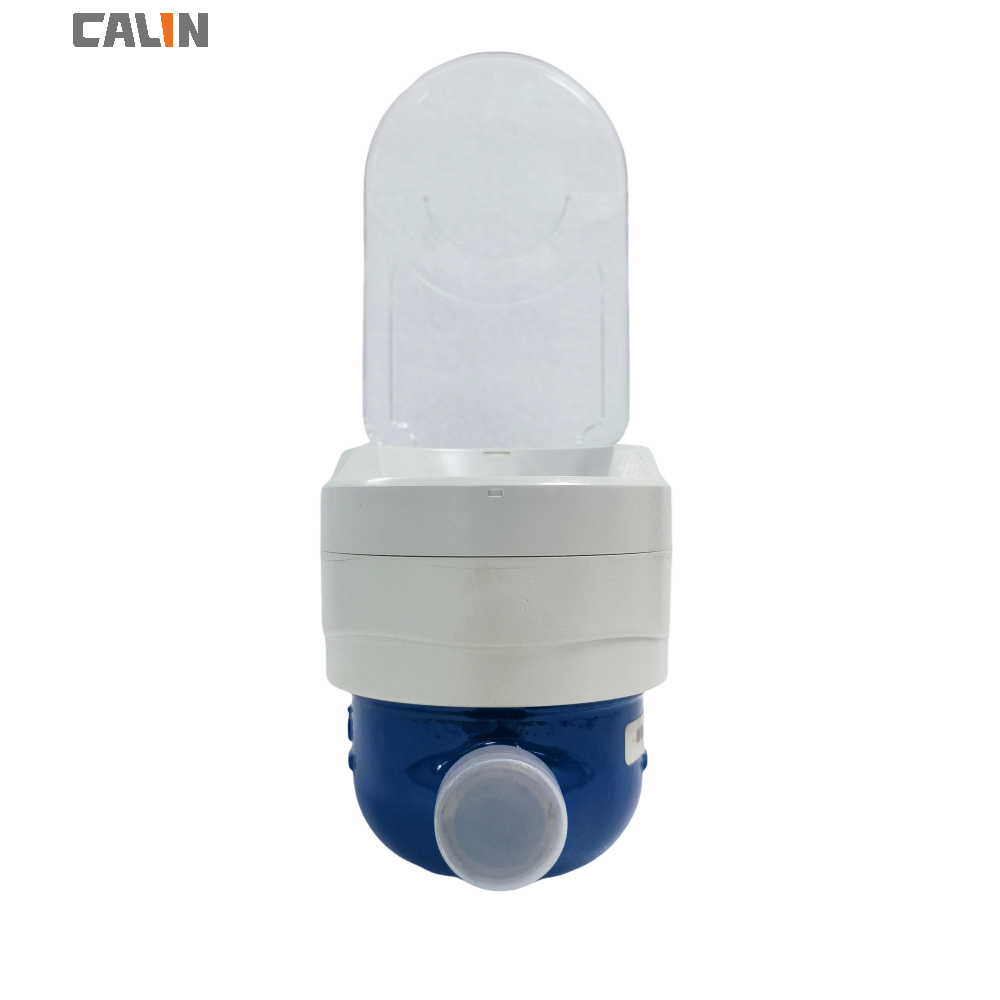

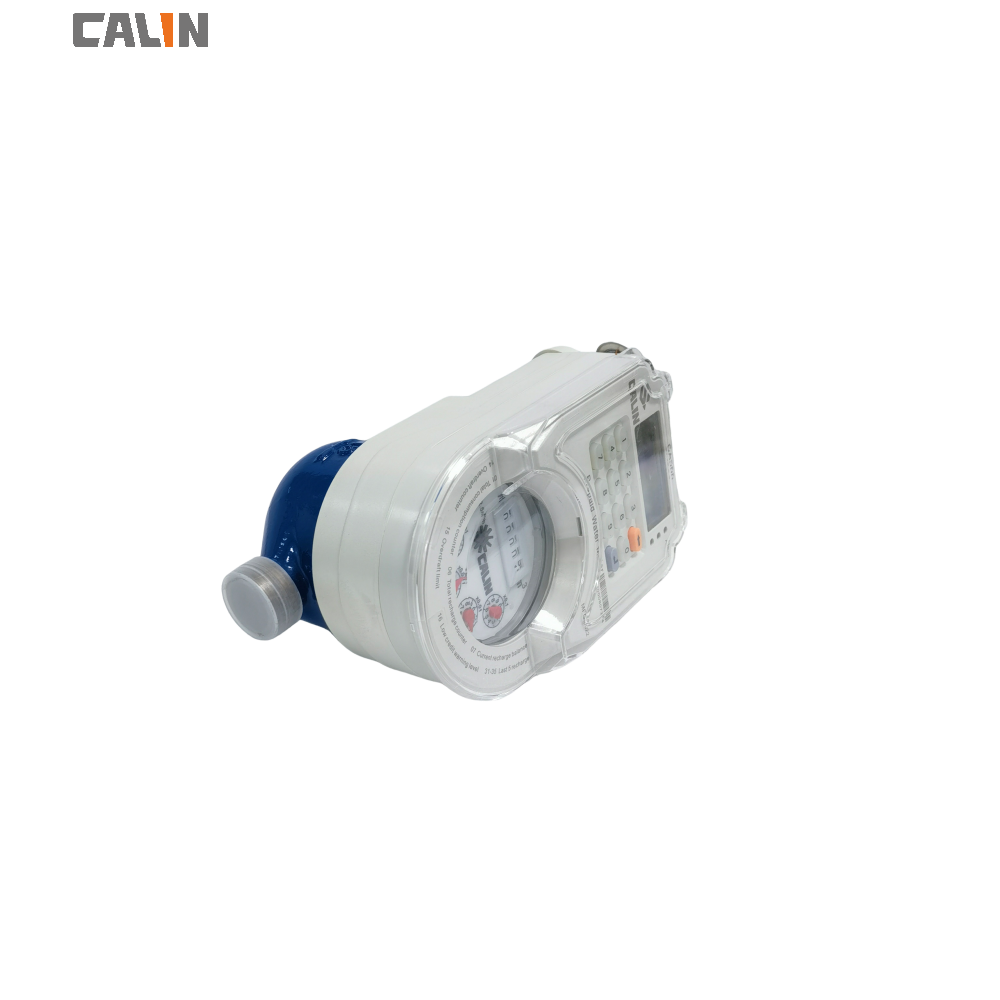

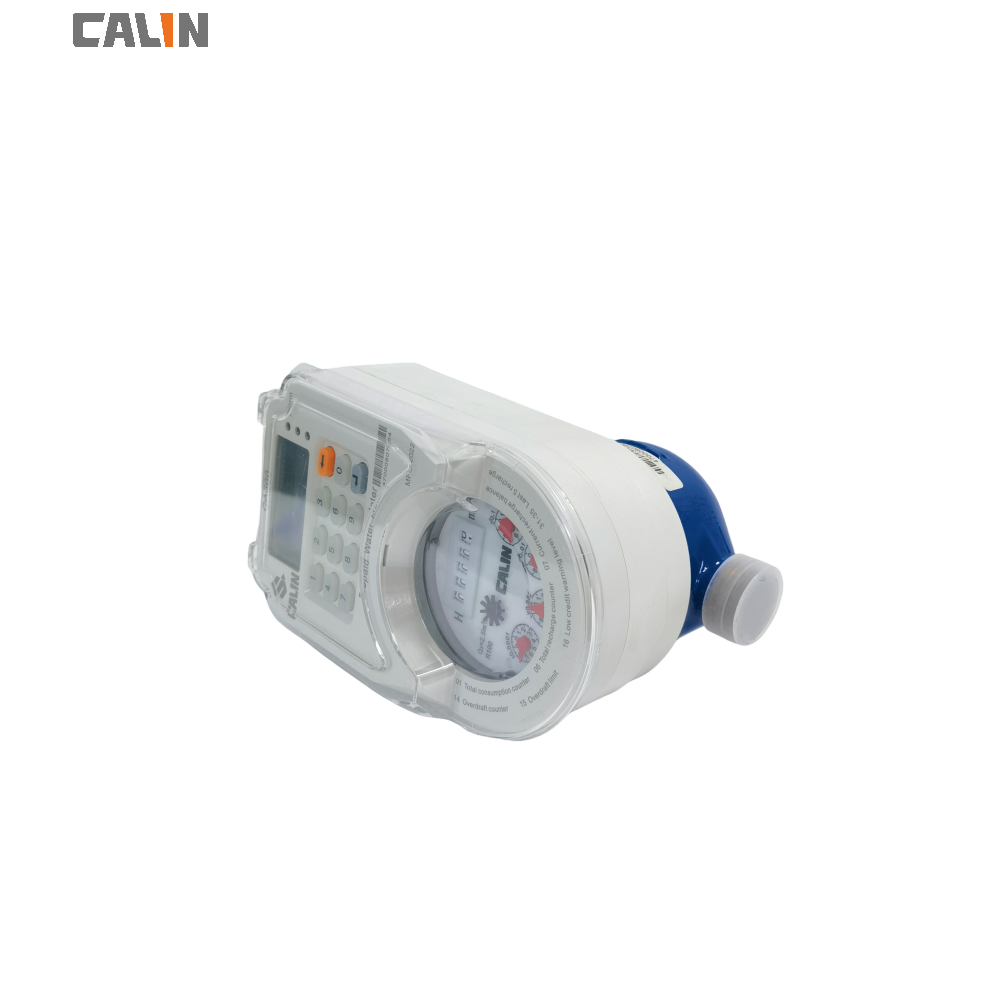

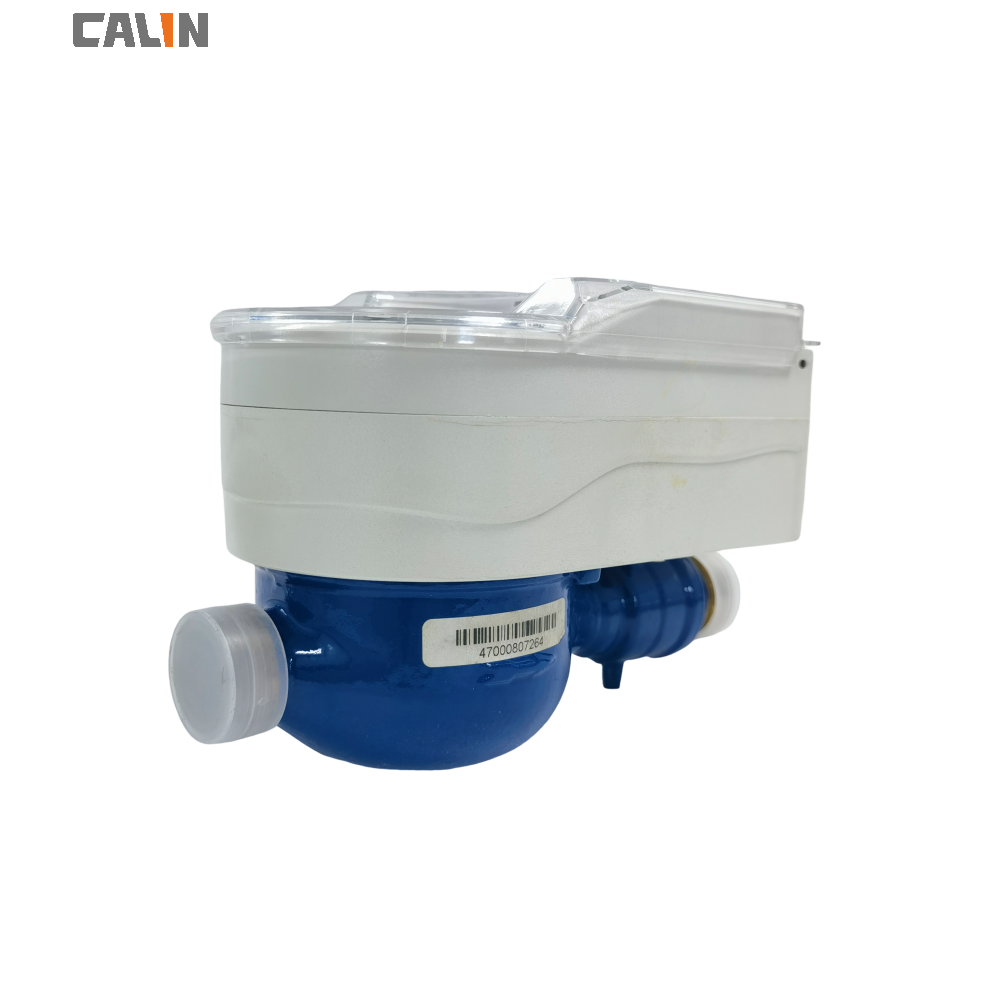

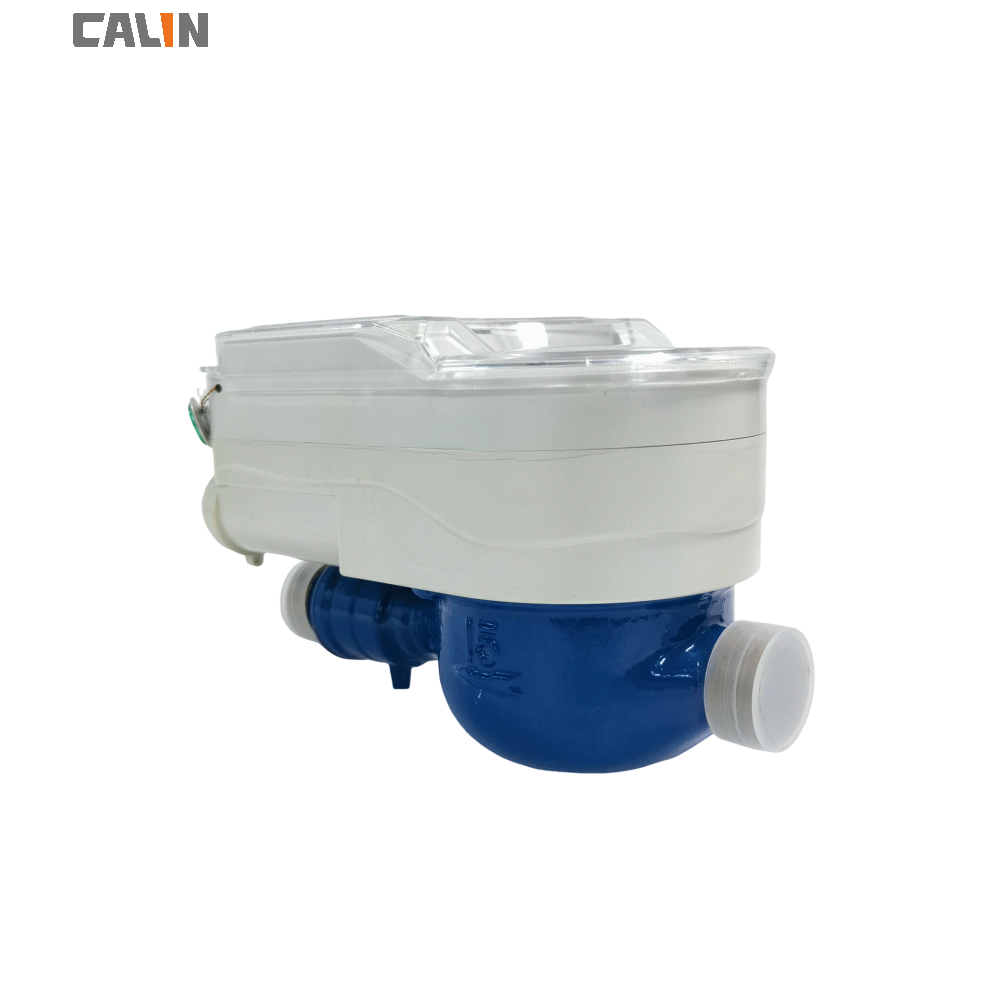

The CA568 - A01 is a prepayment small - bore water meter. It is a rotary vane type water meter, making it an excellent choice for household water measurement. This meter is suitable for various revenue protection and user management scenarios.
Main Features
Meter Type: Rotary vane type, with dry or wet type available
Shell Material: Copper shell
Protection Level: IP68 protection
Communication Modes: LoRa, RF, LoRaWAN communication options available
Size Options: DN15, DN20, DN25 available
Ratio: R100
Keypad Option: Keypad on the meter is optional
Certifications: MID and STS certified
This water meter is designed to accurately measure water consumption. The availability of different communication modes allows for seamless integration into smart water management systems. The option to choose between dry and wet types, along with the different sizes, caters to diverse user requirements. The IP68 protection ensures its durability in various environmental conditions, and the MID and STS certifications guarantee its compliance with relevant standards.
|
Nominal size |
DN |
mm |
In-line |
||
|
|
|
|
15 |
20 |
25 |
|
Maximum flow rate |
Q4 |
m³/h |
3.125 |
5.0 |
7.875 |
|
Ratio“R” |
Q3/Q1 |
m³/h |
100 |
100 |
100 |
|
Permanent l flow rate |
Q3 |
|
2.5 |
4.0 |
6.3 |
|
Transitional flow rate |
Q2 |
1/h |
0.04 |
0.064 |
0.1 |
|
Minimum flow rate |
Q1 |
|
0.025 |
0.04 |
0.063 |
|
Maximum working pressure |
Bar |
16 |
|||
|
Maximum pressure loss as complete unit including the shut off valve and piping |
|
0.63 |
|||
|
Maximum working temperature |
℃ |
50 |
|||
|
Maximum reading |
m³ |
99999 |
|||
|
Maximum Permissible Error(MPE) |
% |
Q1≦Q≦Q2: MPE = ± 5% Q2≦Q≦Q4: MPE = ± 2% |
|||
