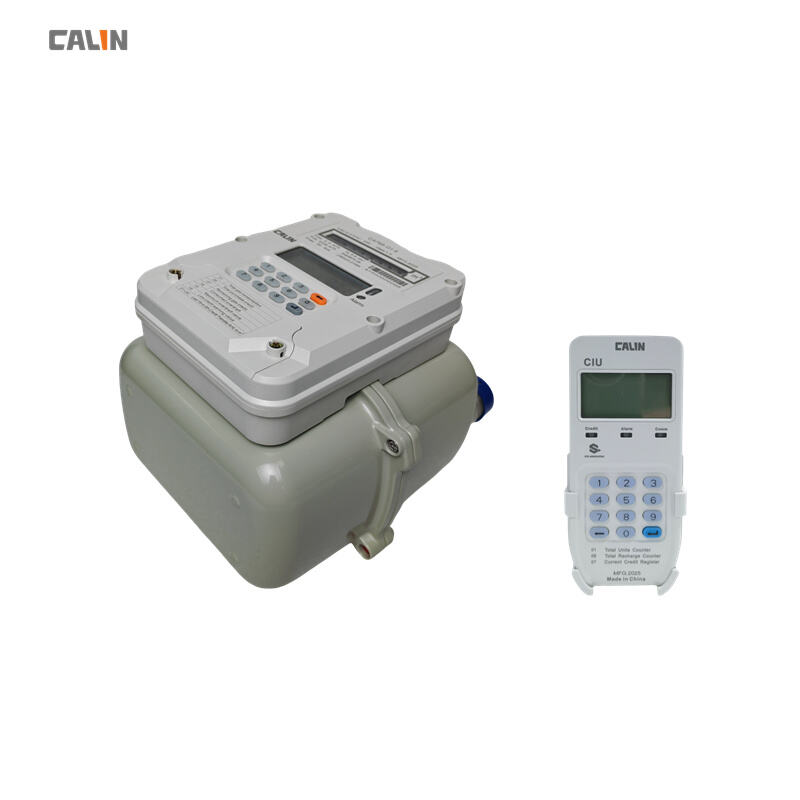

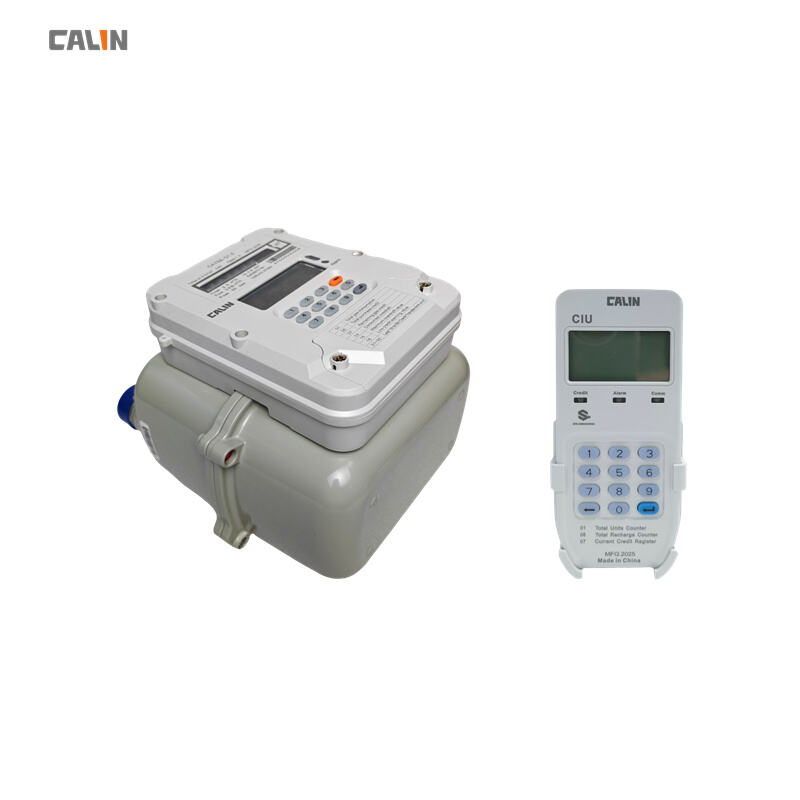

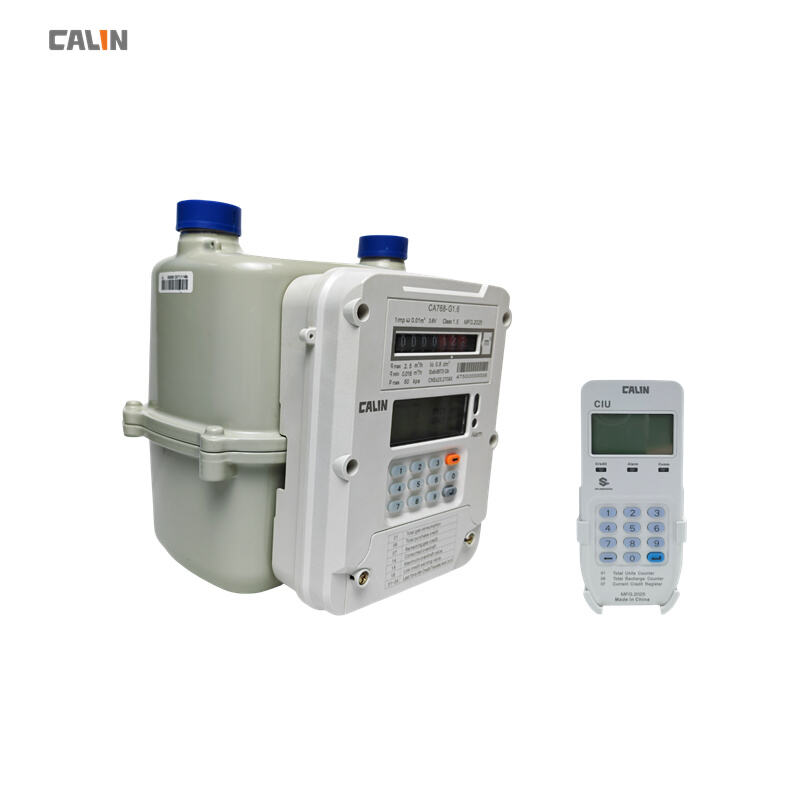

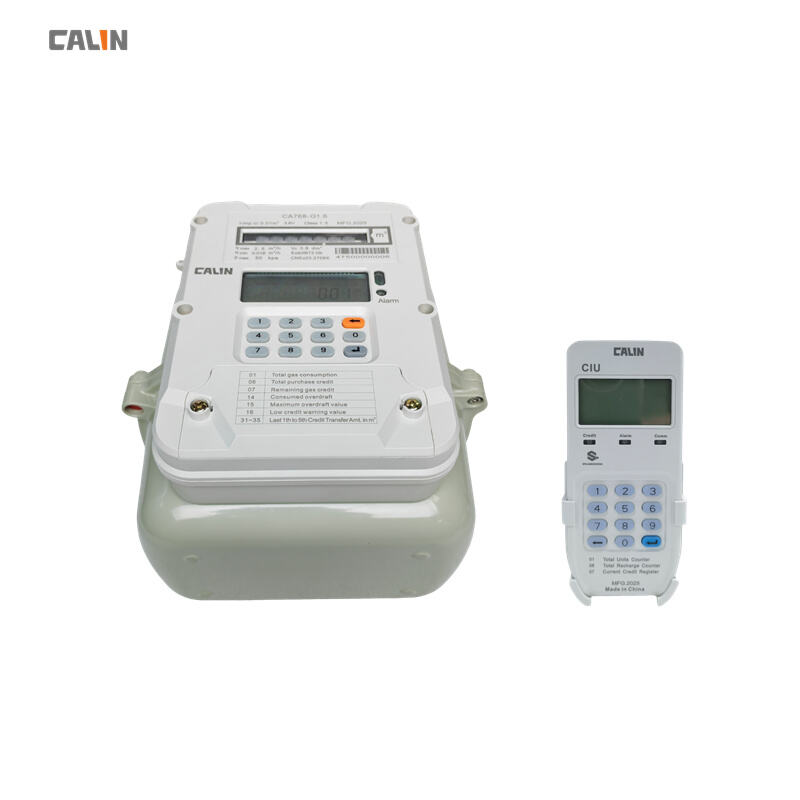

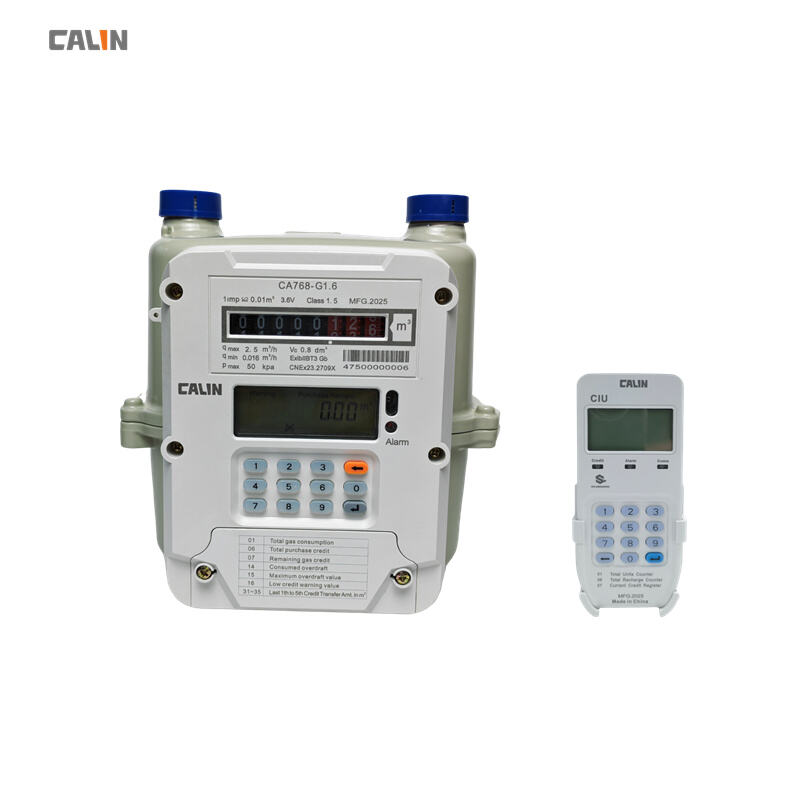

The CA768 - C55 is a split - type prepayment gas meter. It is designed to meet the needs of gas measurement for different users, featuring STS and MID compliance. The meter is well - suited for various gas - using scenarios, ensuring accurate measurement and convenient management.
Shell Material: Copper shell
Communication Modes: LoRaWAN/NB - I0T/GPRS/LORA communication options available
Size Options: G1.6, G2.5, G4 available
Keypad Option: Keypad on the meter is optional
Optional Component: Comes with a CIU (Customer Interface Unit)
Certifications: STS and MID certified
This split - type gas meter is crafted to precisely measure gas consumption. The availability of multiple communication modes allows for seamless integration into modern smart gas management systems. The different size options can satisfy various gas - usage demands. The optional keypad provides users with convenient operation, and the included CIU enhances user interaction. The STS and MID certifications ensure the meter meets high - quality international standards.
|
Type |
G1.6 |
G2.5 |
G4 |
|
Nominal Flow Rate m³/h |
1.6 |
2.5 |
4 |
|
Maximum Flow Rate m³/h |
2.5 |
4 |
6 |
|
Minimum Flow Rate m³/h |
0.016 |
0.025 |
0.040 |
|
Cyclic volume dm³ |
0.7 |
1.2 |
2 |
|
Working Pressure KPa |
0.5-50KPa |
||
|
Maximum permissible error % |
Qmin<Q<0.1Qmax: ±3; 0.1Qmin<Q<0.1Qmax: ±1.5 |
||
|
Standard compliance |
OIML R137 (2012) / EN1359:1998/A1:2006 |
||
|
Pressure Loss kPa |
<200 |
||
|
Maximum Reading m³ |
99999.9 |
||
