Single phase

Electronic Energy Meter

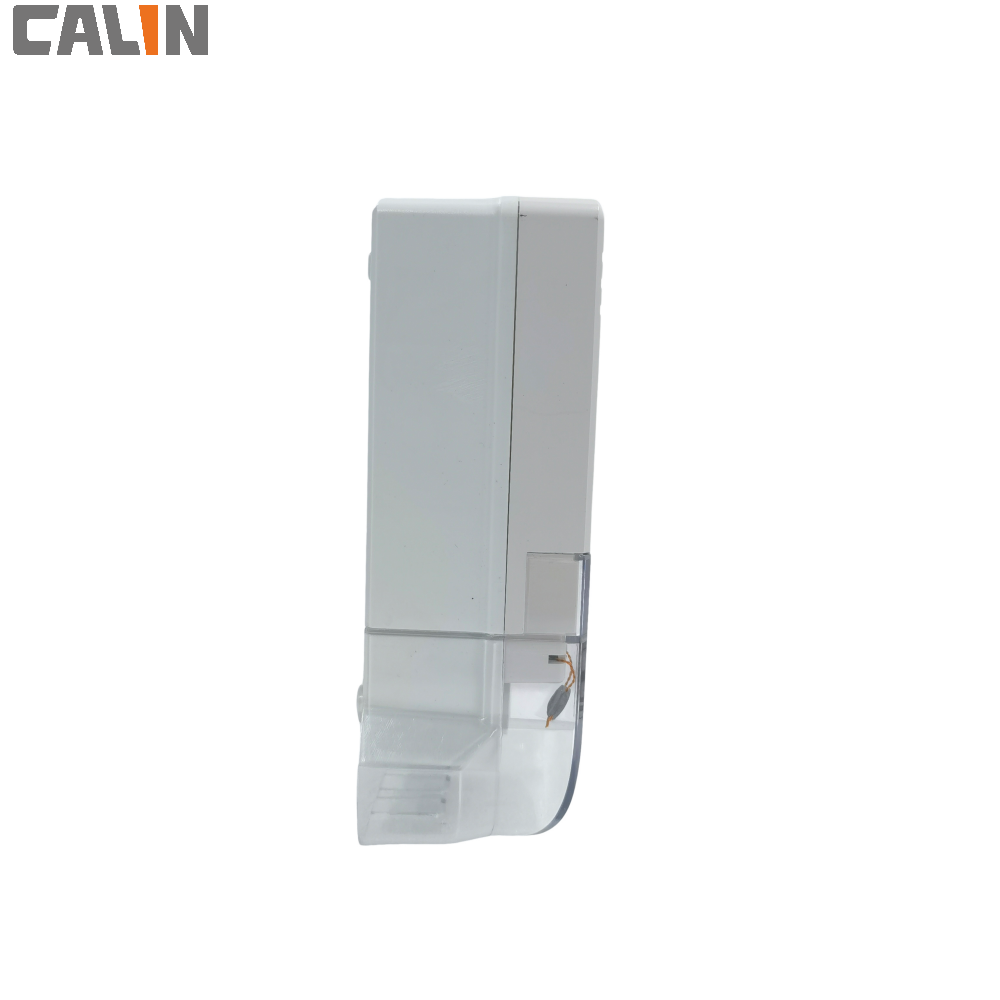

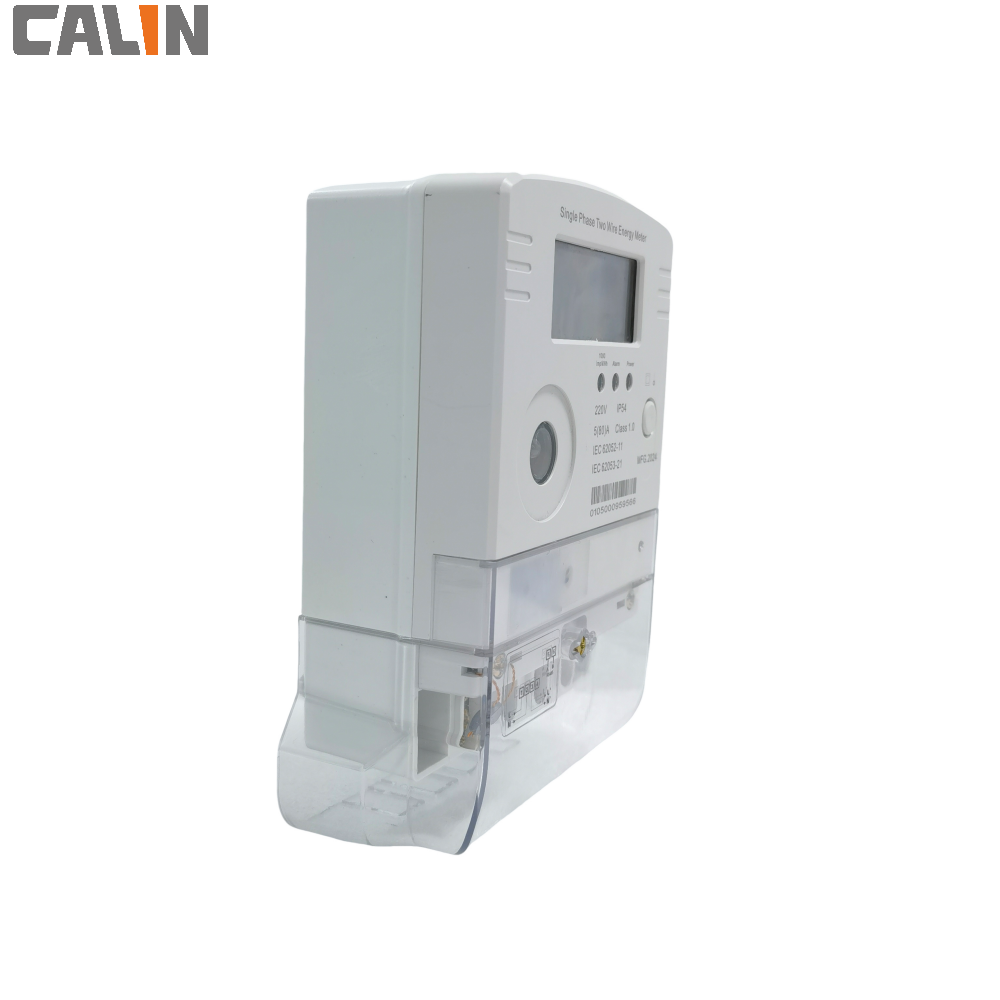

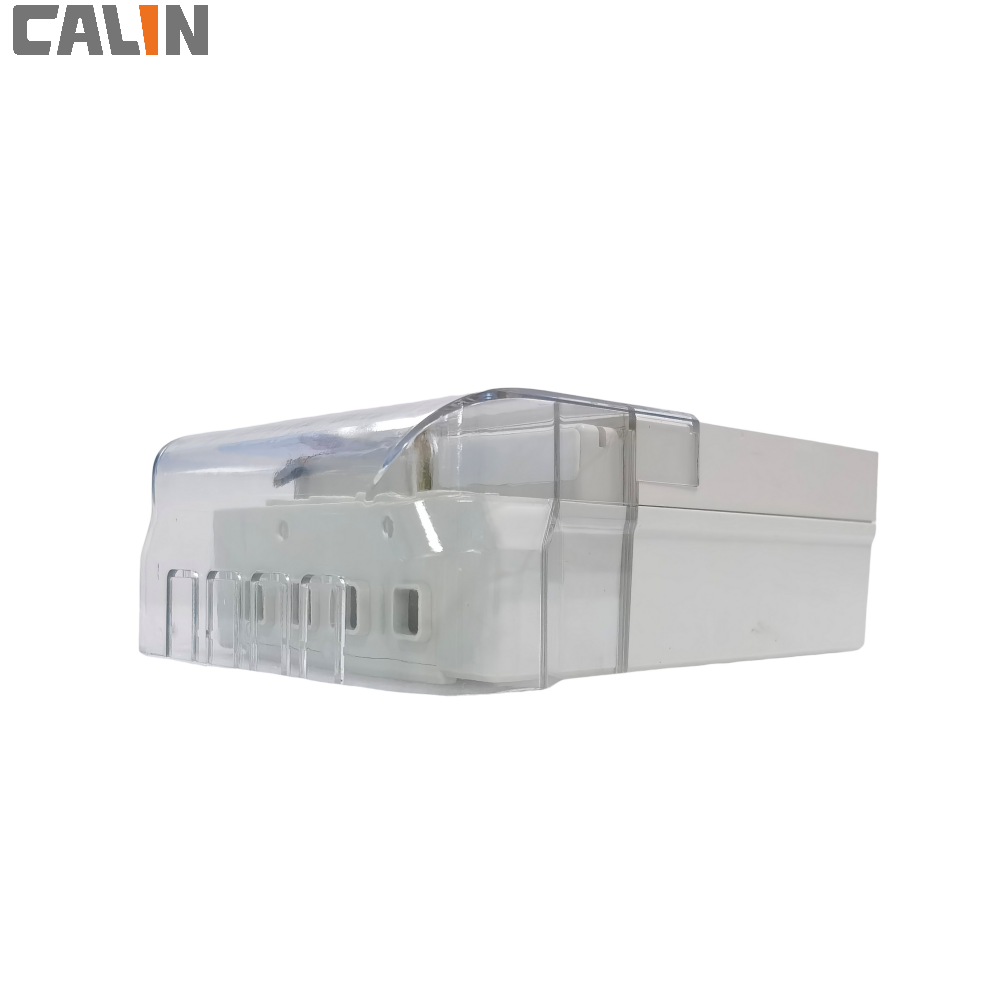

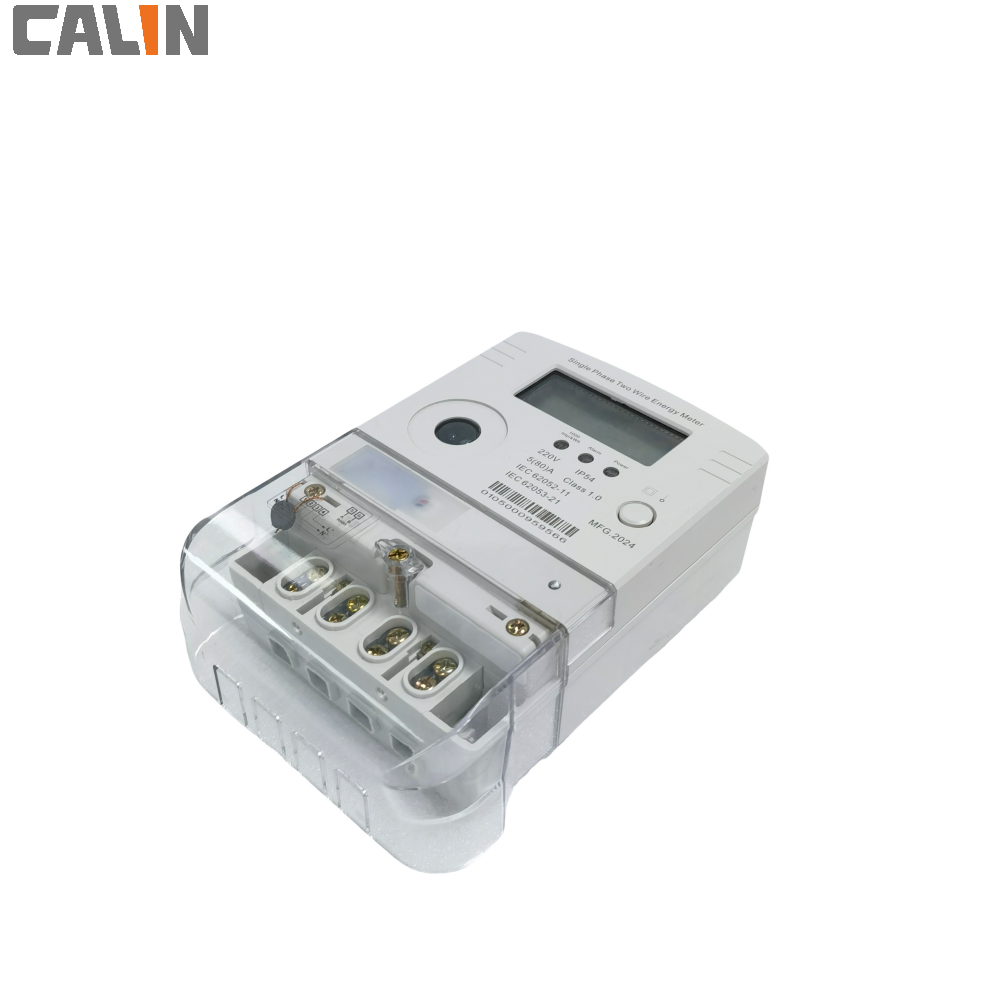

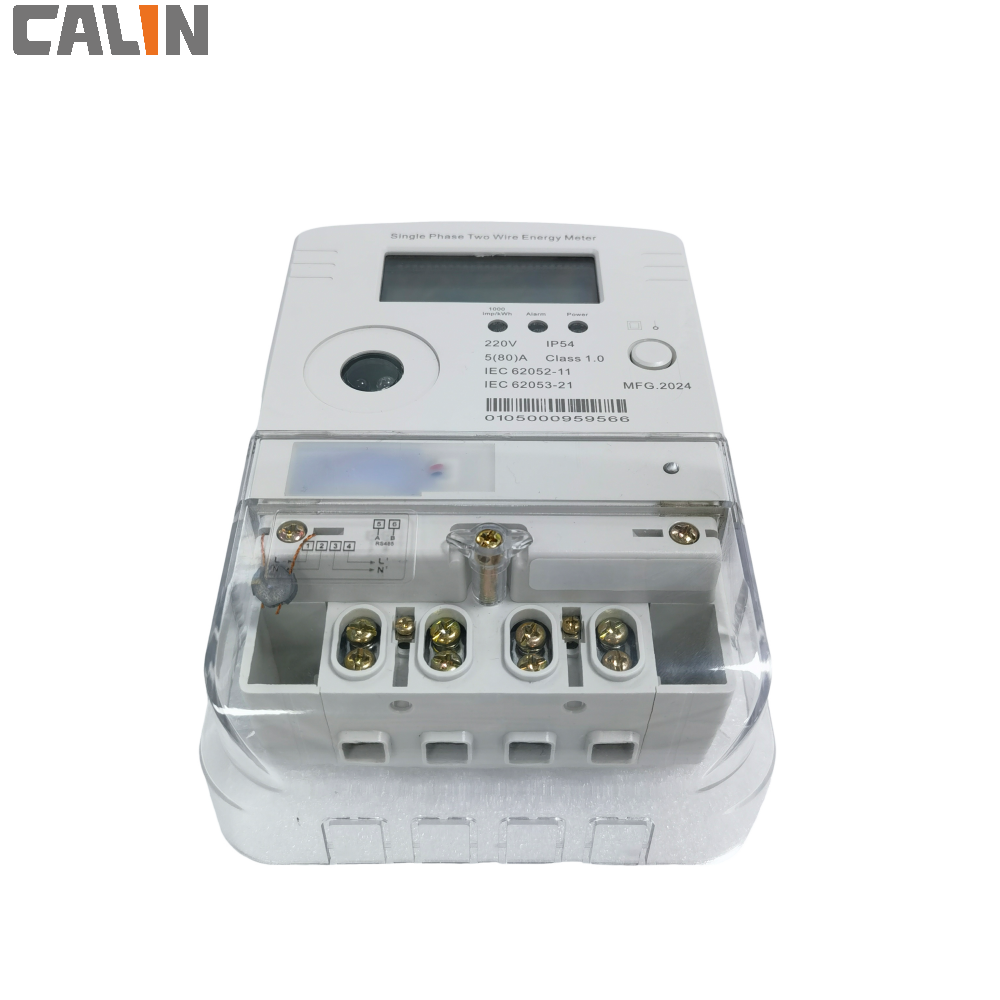

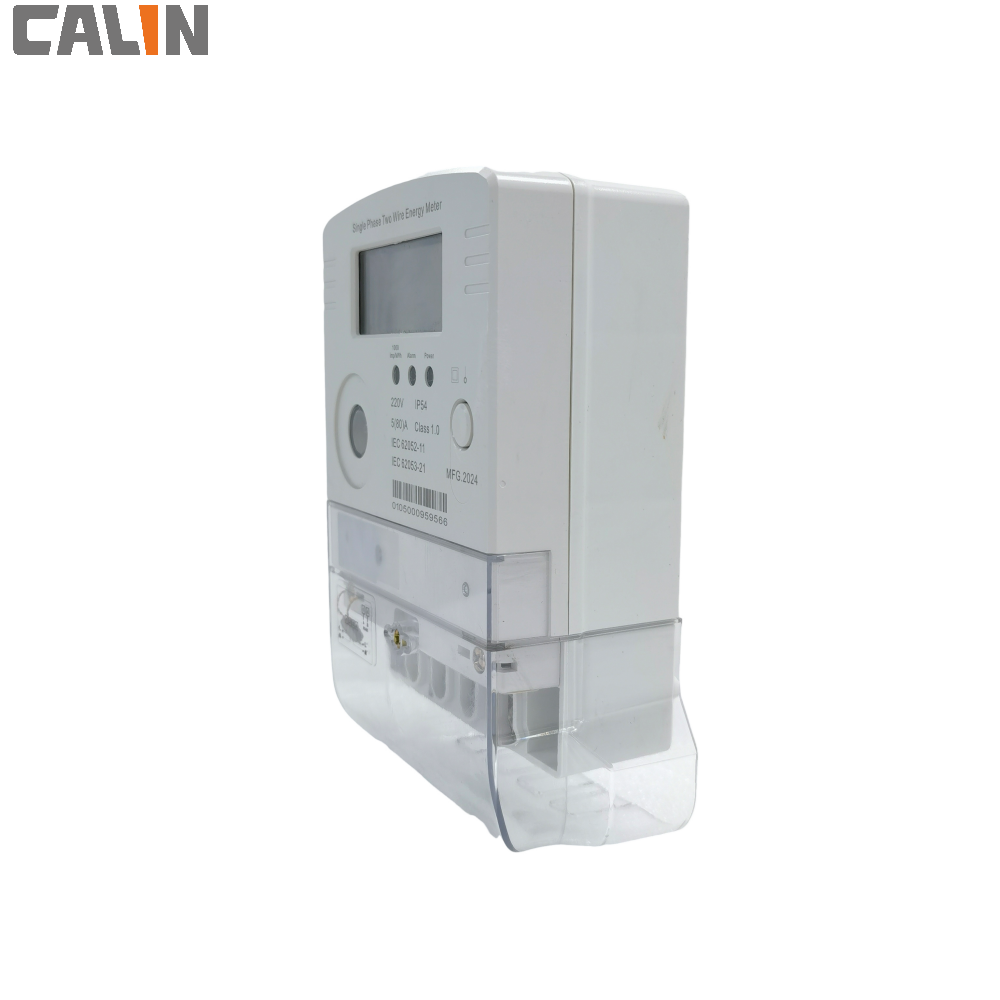

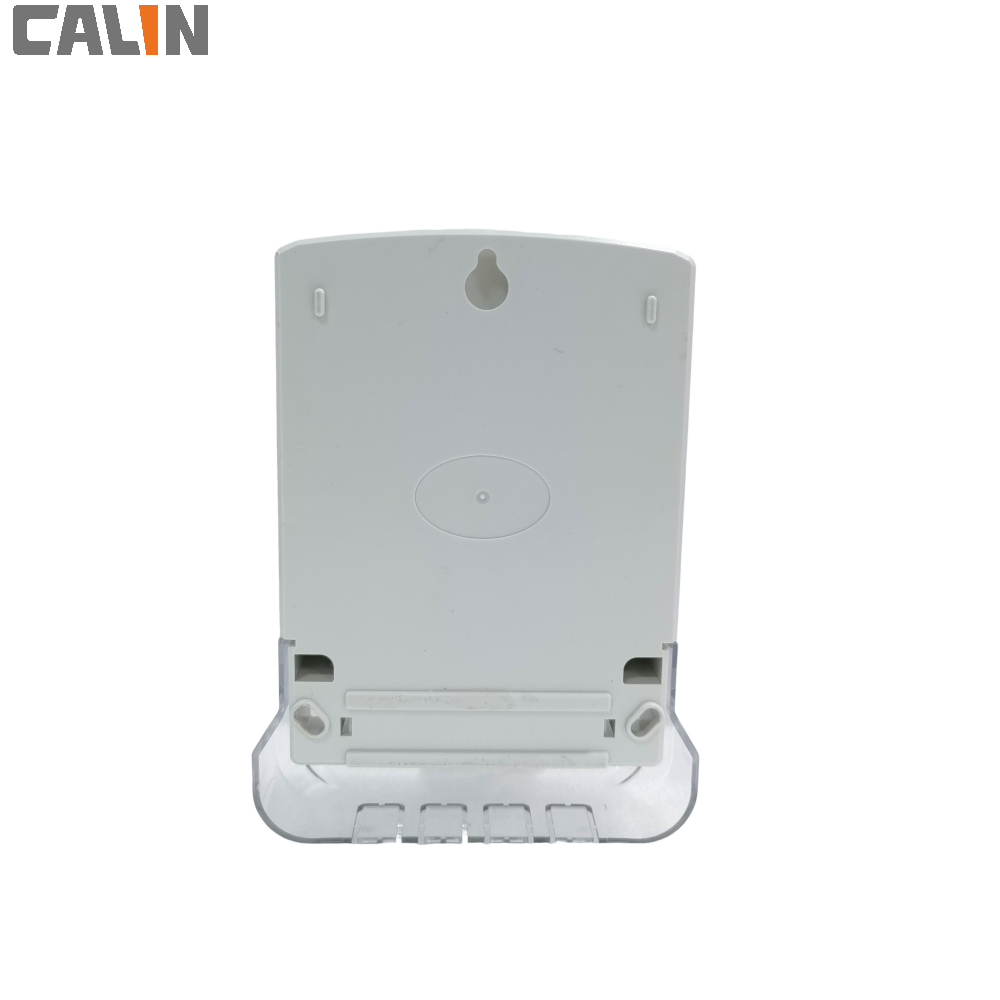

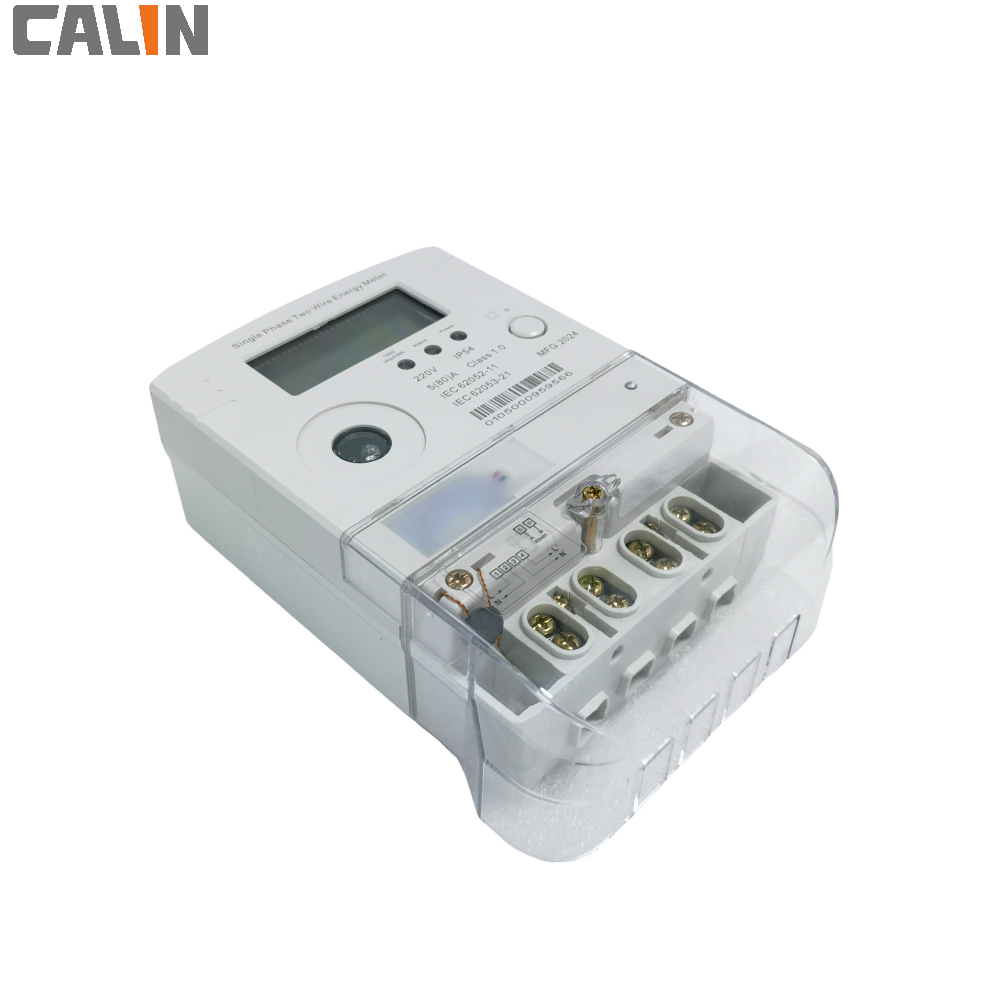

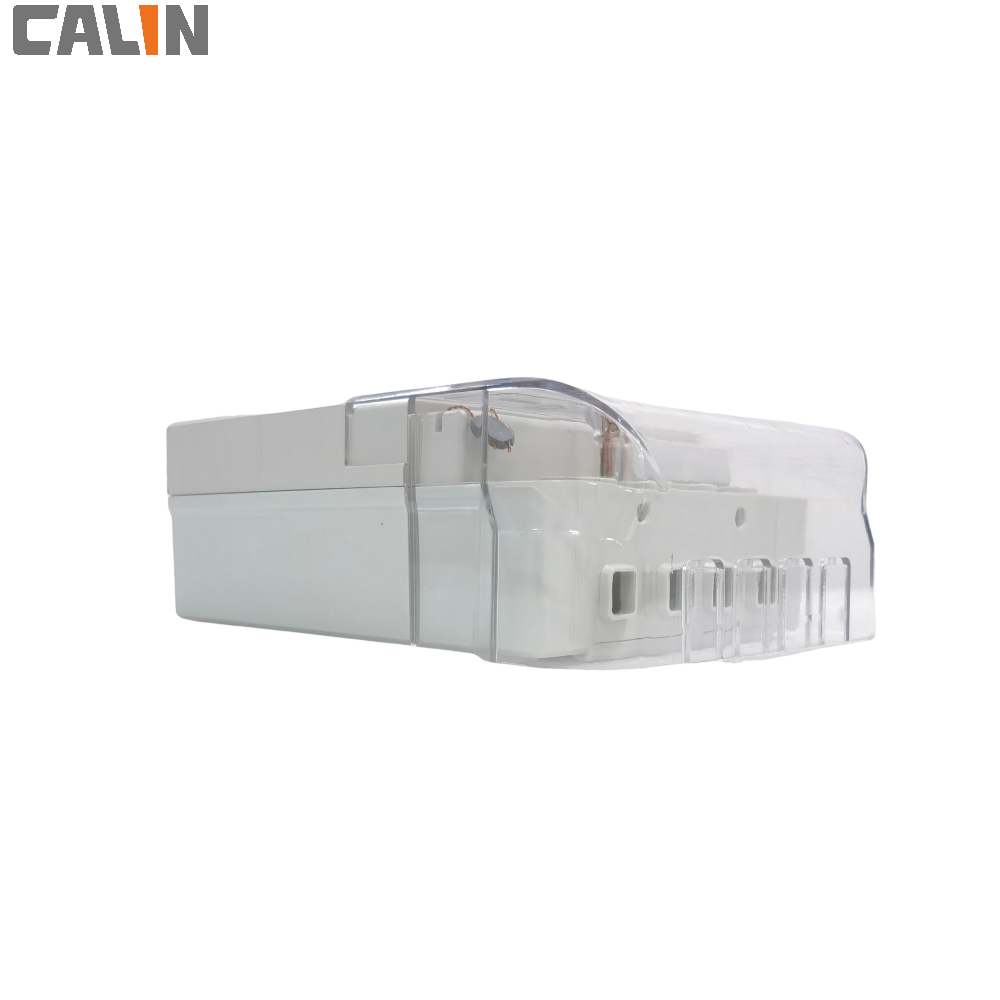

The CA168 - T01 is an electronic energy meter featuring a replaceable battery. It is equipped with a wheel - display and programming buttons. The meter is designed to operate at 230V, with a current rating of 5(80)A and a frequency of 50HZ. It supports multiple communication methods, namely RF, LoRa, LoRaWAN, PLC/G3PLC.

Introduction

Introduction

Main Features

Replaceable battery

Wheel - display and programming buttons

Operates at 230V, 5(80)A, 50HZ

RF, LoRa, LoRaWAN, PLC/G3PLC communication support

Anti - electricity - stealing function

DLMS certification

Precise measurement

Stable performance under normal conditions

This meter is well - suited for both commercial and residential electricity measurement needs. The replaceable battery ensures continuous operation with easy battery replacement. The wheel - display and programming buttons offer user - friendly operation. The multiple communication options enable seamless integration into different smart grid systems. The anti - electricity - stealing function safeguards the integrity of electricity measurement, and the DLMS certification attests to its compliance with international standards.

Electrical parameters:
Voltage
Nominal voltage Un	230V
Limited voltage	50%~130%Un
Frequency
Nominal frequency fn	50-60Hz
tolerance	5%
Current
Basic current(Ib)	5A
Maximum current(Imax)	60A (100A optional)
Starting current(Ist)	20mA
Active energy constant	1000imp/kWh
Measurement Accuracy
Active energy to IEC62053-21	Class1.0
Burden
Voltage circuit	<2W <8VA
Current circuit	<1VA
Temperature range
Operation meter	-25℃ to+70℃
Storage	-40℃ to+85℃
Insulation
Insulation level		4kV rms 1min
Voltage impulse withstand		8kV 1.2/50 μs
Insulation System Classification		Protective Class II
Electro Magnetic Compatibility
Electrostatic discharges
Contact discharge		8kV
Air discharge		16kV
Electromagnetic RF fields
27MHz to 500MHz typical		10V/m
100kHz to 1GHz typical		30V/m
Fast transient burst test		4kV
Mechanical requirements
Meter shell Protection Rate		IP54
Insulation System Classification		Protective Class II
Maximum cable size		8 mm
