Description：
32.768KHz /12.5PF±5PPM（BD-SC-32S）
Product Brochure:DOWNLOAD

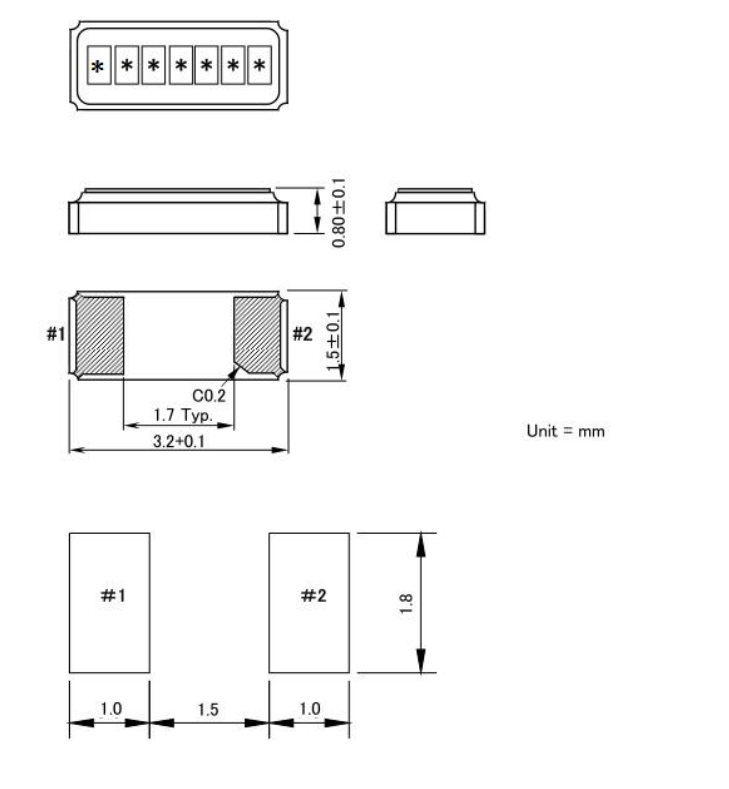

Dimensions: MM
| 1 | Nominal frequency |
32.768KHz |
| 2 | Mode of vibration |
AT Fundamental |
| 3 | Load capacitance |
12.5pF |
| 4 | Frequency tolerance |
±5x10-⁶ppm(25±5℃) |
| 5 | Frequency temperature characteristics |
-0.04ppm/℃² (-40to+85℃) |
| 6 | Equivalent series resistance |
70K Ω max |
| 7 | Shunt capacitance |
1pF Typ |
| 8 | Insulation resistance |
500MΩmin./100±15VDC |
| 9 | Drive level |
0.1μw Typ |
| 10 | Aging |
±3x10-⁶ppm/year |
| 11 | Storage temperature range |
-55℃ to +125℃ |
| 12 | Test Impedance Meter |
S&A 250B |
