Quartz Crystal Resonator for single phase NTDC meter

Description：

Features

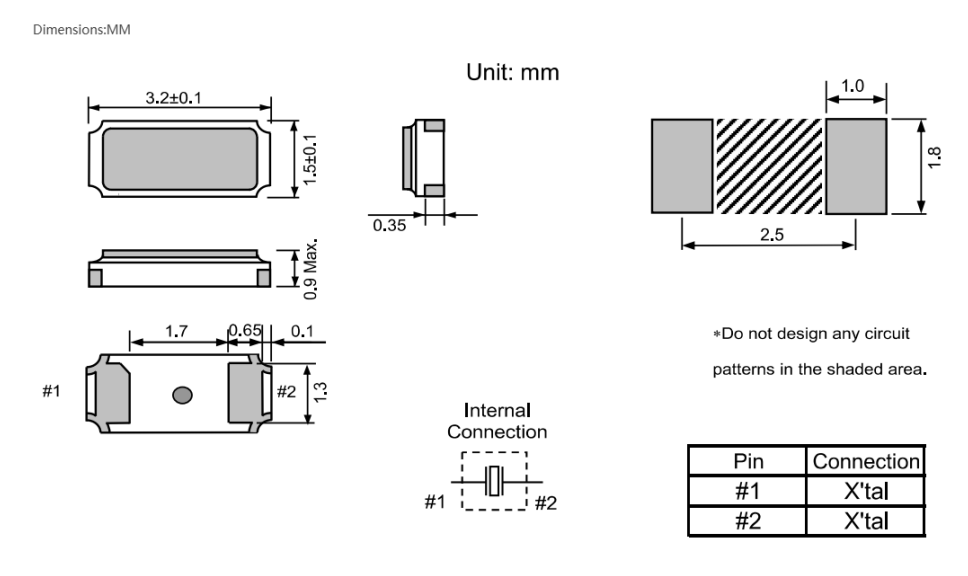

Package size: 3.2x1.5 mm,t = 0.9 mm Max.

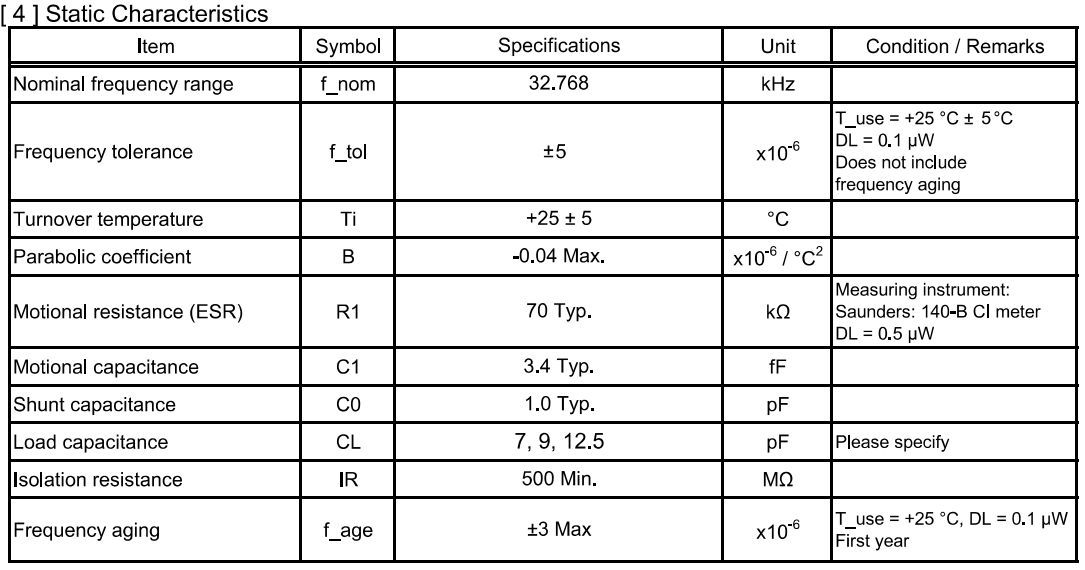

Nominal frequency range:32.768 kHz
Frequency tolerance: ± 5 x10-6 (+25 ℃ ±5°C)
Operating temperature: -40℃ to +85℃
(-40°C to +105 °C) Please contact Epson
ESR: 70 kΩ Typ.4
