Single Phase DIN-Rail Meter

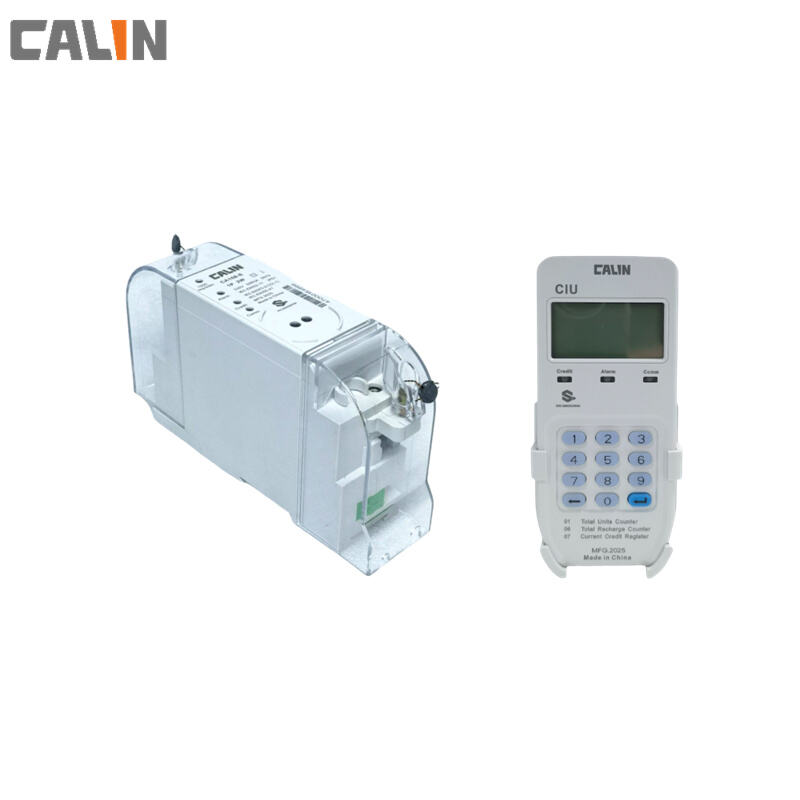

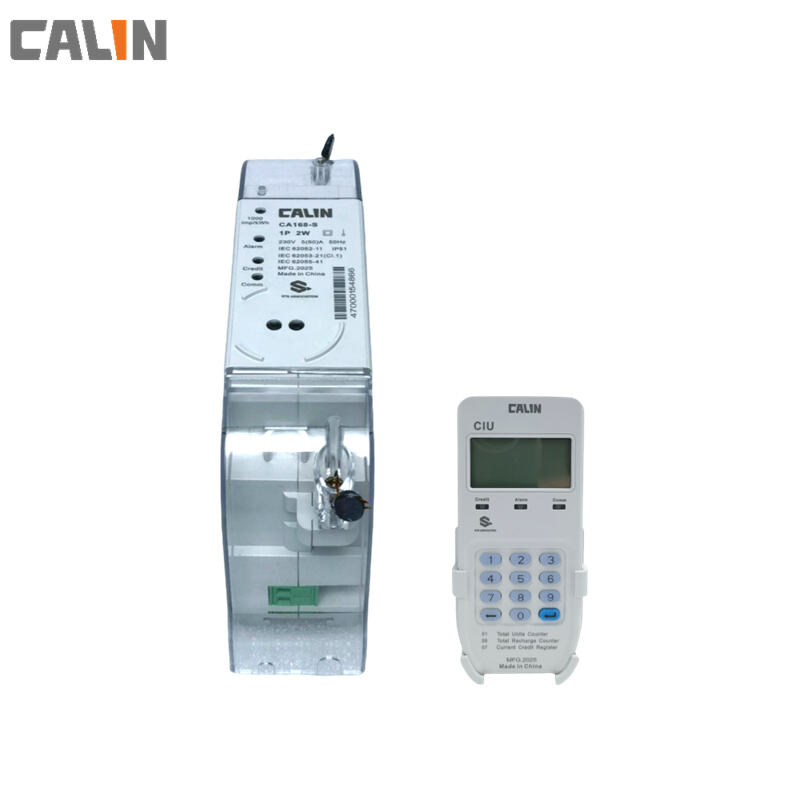

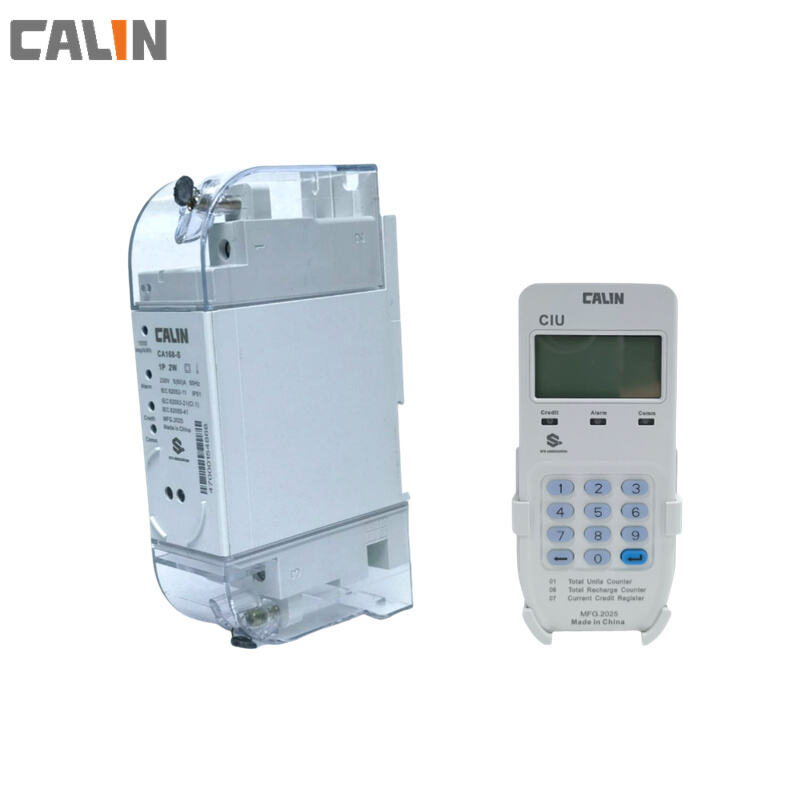

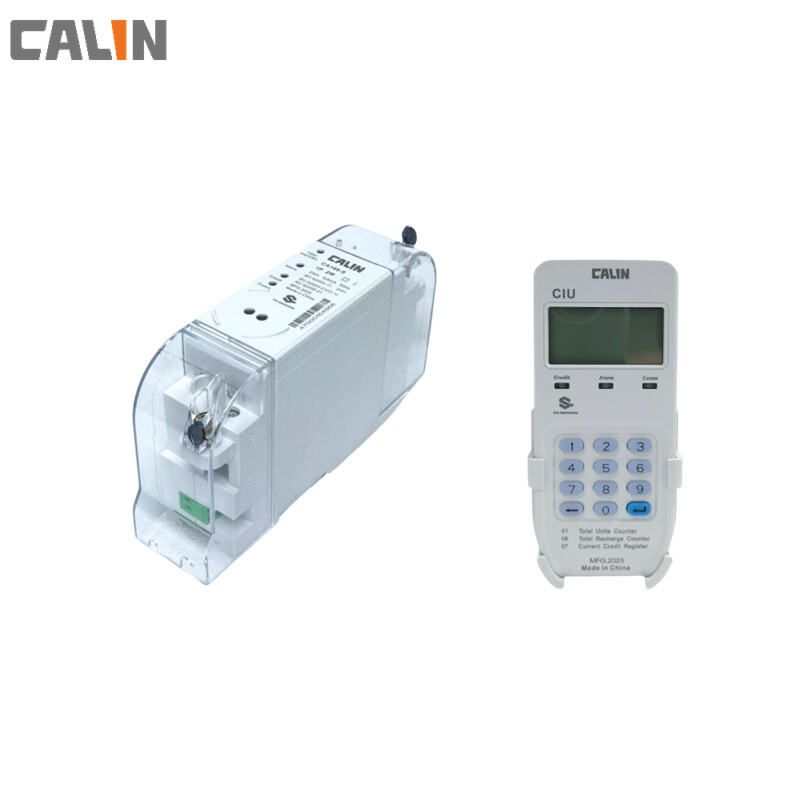

The CA168 - SF57 is a single - phase rail - mounted meter. It is designed to accurately measure electrical energy for various applications, suitable for both commercial and residential use. The meter can be applied to payment scenarios as it is compliant with DLMS and STS. Communication with an optional Customer Interface Unit (CIU) can be carried out via M - bus, PLC, LORA, or RF.

Introduction

Introduction

Main Features

Rated Parameters: 230V, 5(60)A, 50HZ, Class 1.0 accuracy

Communication Modes: M - bus, PLC, LORA, RF

Interface: Equipped with RS485

Optional Component: CIU available

Anti - Theft Feature: Anti - electricity - stealing function

Wiring Design: Up - in and down - out wiring layout

Certifications: DLMS and STS certified

Split Configuration (if applicable)

Since the CIU is optional, if there is a split configuration, the Metering & Control Unit (MCU) and CIU could potentially be linked through the available communication methods (M - bus, PLC, RF). The CIU could be installed within the consumer’s premises for user - friendly interaction, while the MCU could be placed in a meter cabinet at a suitable location away from the consumer for better management and protection. However, details would be subject to specific requests.

Electrical parameters:
Voltage
Nominal voltage Un	220/230/240V
Limited voltage	50%~130%Un
Frequency
Nominal frequency fn	50-60Hz
tolerance	5%
Current
Basic current(Ib)	5A
Maximum current(Imax)	60A (100A optional)
Starting current(Ist)	20mA
Active energy constant	1000imp/kWh
Measurement Accuracy
Active energy to IEC62053-21	Class1.0
Burden
Voltage circuit	<2W <8VA
Current circuit	<1VA
Temperature range
Operation meter	-25℃ to+70℃
Storage	-40℃ to+85℃
Insulation
Insulation level		4kV rms 1min
Voltage impulse withstand		8kV 1.2/50 μs
Insulation System Classification		Protective Class II
Electro Magnetic Compatibility
Electrostatic discharges
Contact discharge		8kV
Air discharge		16kV
Electromagnetic RF fields
27MHz to 500MHz typical		10V/m
100kHz to 1GHz typical		30V/m
Fast transient burst test		4kV
Mechanical requirements
Meter shell Protection Rate		IP54
Insulation System Classification		Protective Class II
Maximum cable size		8 mm
