Single Phase Electricity Meter

Single Phase Smart Energy Meter

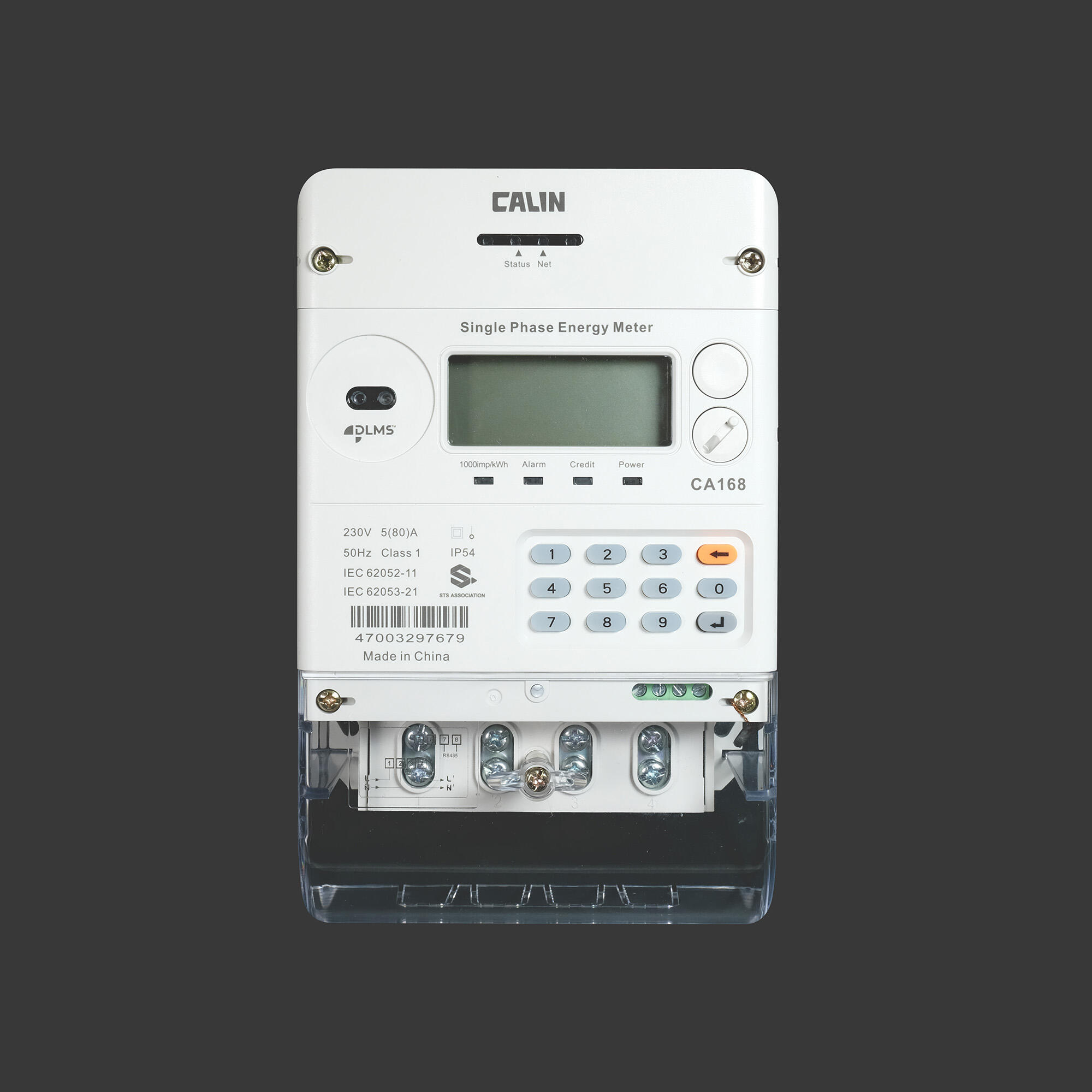

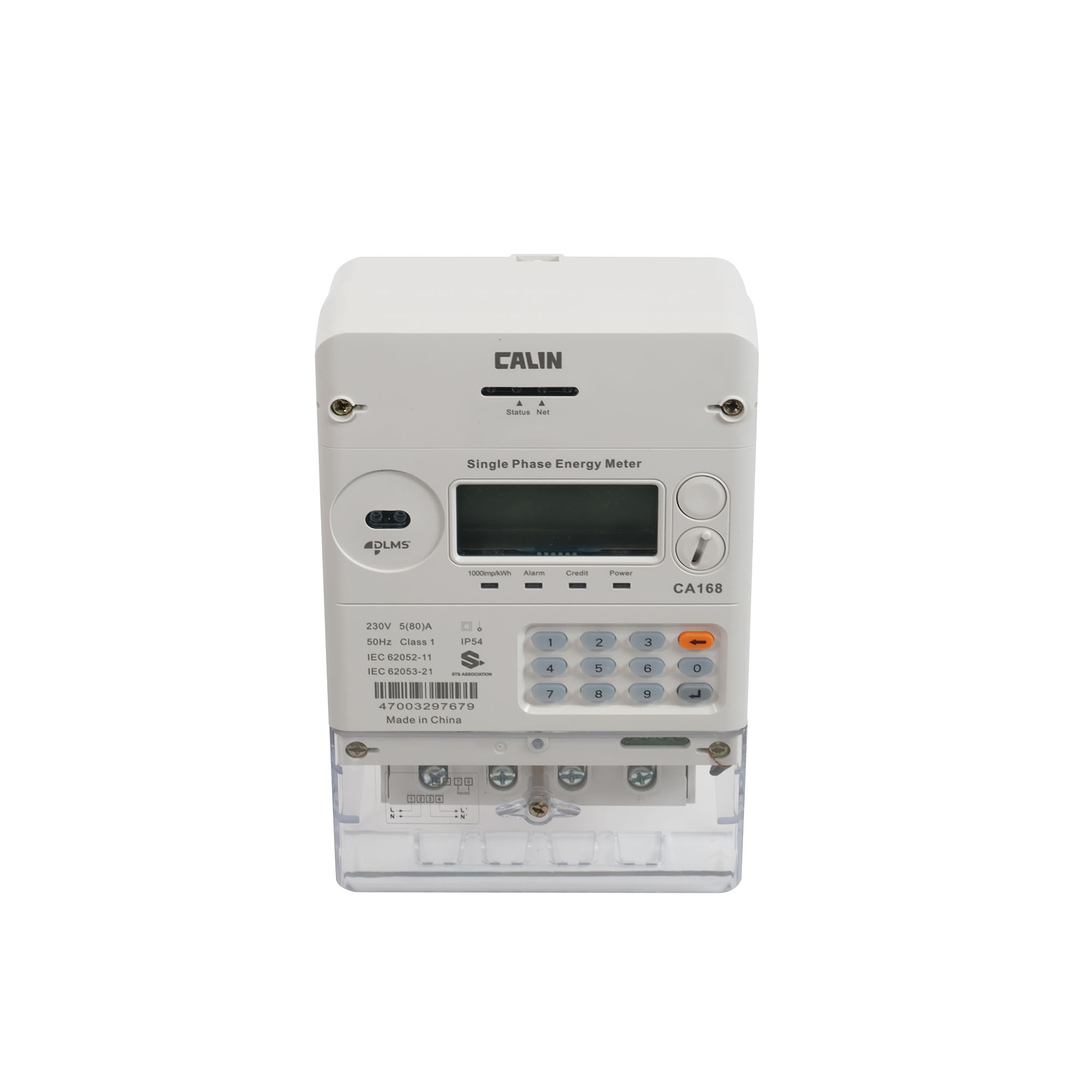

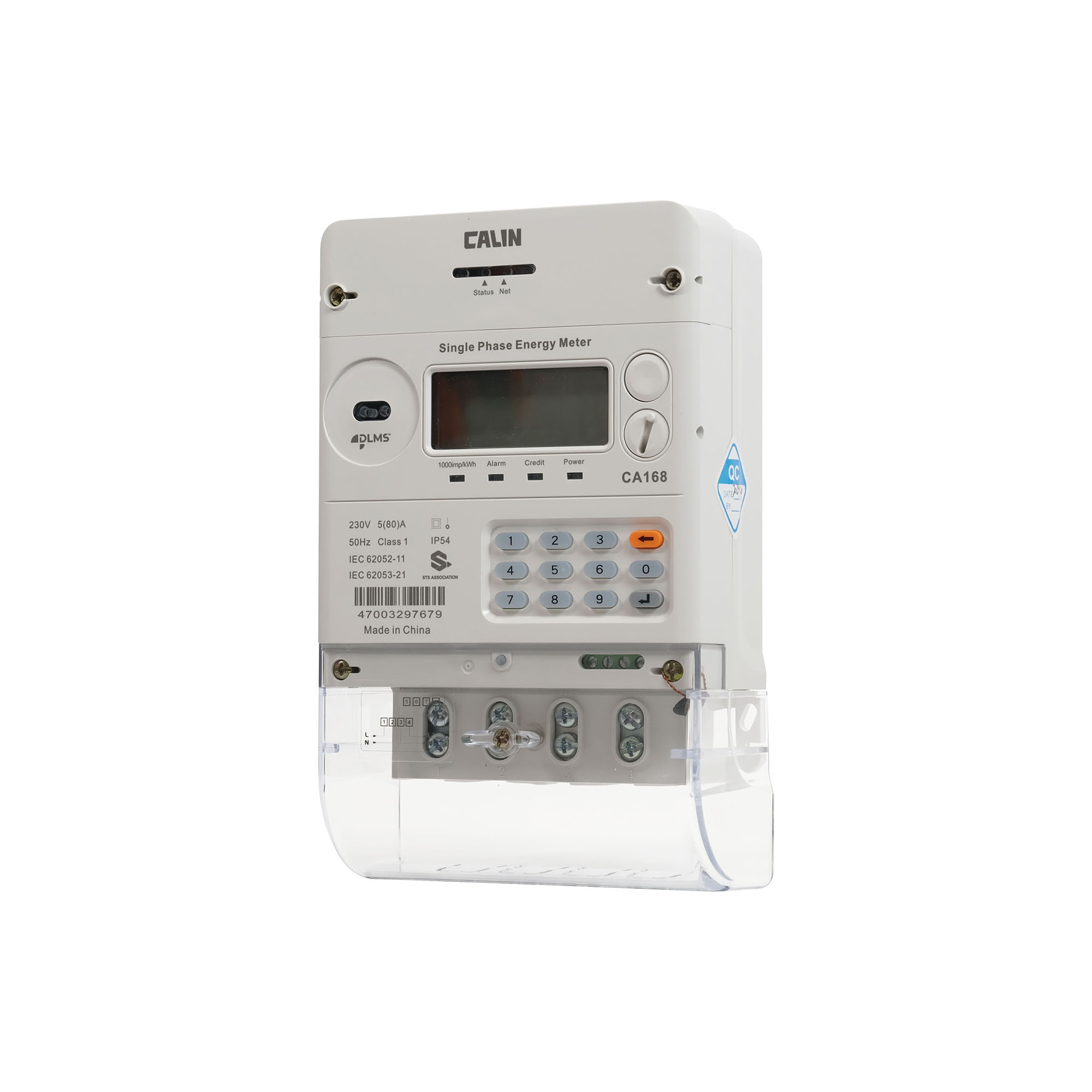

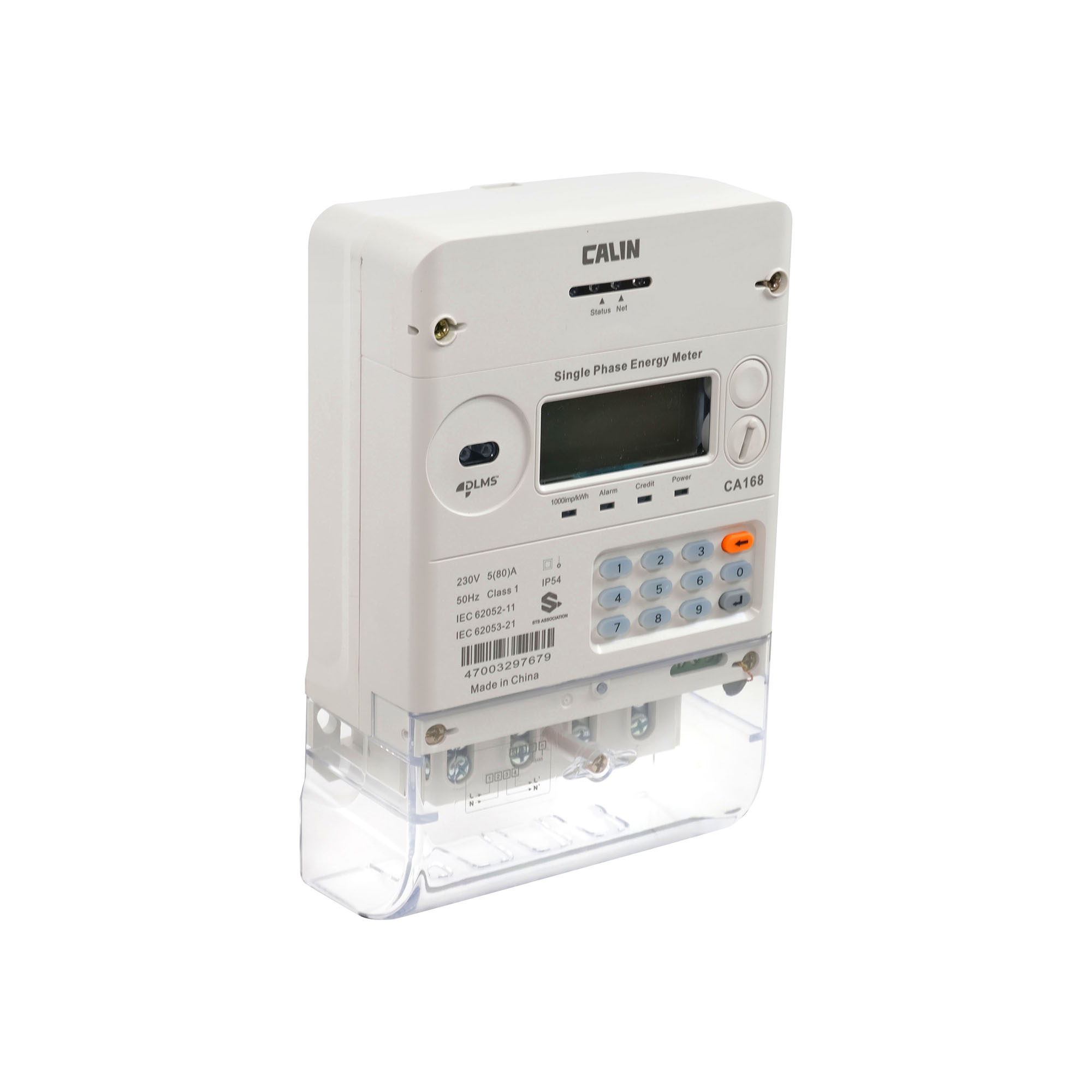

The CA168-CS23 is a new generation single-phase multi-functions meter with modular design. The meter is used to measure electrical energy accurately for commercial and residential customers. The meter has a wide range of functions and the possibility of intelligent measurement, and its flexible communication module instrument can provide remote management and reading of various communication media. This meter can be used for prepayment (Comply with STS standard) and post payment applications (optional by company). CA168-CS23 has outstanding anti-tamper feature like terminal cover detection to help users for revenue protection. CA168-CS23 can utilizes different communication media to CIU or DCU (for Smart Metering application) like PLC/GPRS/3G/4G/RF according to customer requirements.

Introduction

Introduction

Main Features

Dual relay

Multi tariff

DLMS/COESM

Infrared port/RS485

Tamper detection and record

LCD display, read without power

Active/reactive energy measurement

Double CT for Phase and Neutral line

Disconnects on overload and no credit

Prepayment / post-payment mode switching

Plug & Play module PLC/ GPRS/ 3G/ 4G/ RF

Display scroll button or STS keypad (optional)

Programmable load limit & Low credit warning

Split Configuration for Increased Revenue Protection

The meter consists of two parts, the MCU (Metering & Control Unit) and CIU (Customer Interface Unit). The MCU and CIU is linked via galvanically-isolated 2-wire communication cable or RF communication is also available on request.

The CIU is installed within consumer’s home for prepaid token input and info inquiry, while MCU is installed in a meter cabinet away from consumers.

Electrical parameters:
Voltage
Nominal voltage Un	230V
Limited voltage	70%~120%Un
Frequency
Nominal frequency fn	50-60Hz
tolerance	5%
Current
Basic current(Ib)	5A
Maximum current(Imax)	60A (80A/100A optional)
Starting current(Ist)	20mA
Active energy constant	1000imp/kWh
Measurement Accuracy
Active energy to IEC62053-21	Class1.0
Burden
Voltage circuit	<2W <8VA
Current circuit	<1VA
Temperature range
Operation meter	-25℃ to+70℃
Storage	-40℃ to+85℃
Insulation
Insulation level		4kV rms 1min
Voltage impulse withstand		8kV 1.2/50 μs
Insulation System Classification		Protective Class II
Electro Magnetic Compatibility
Electrostatic discharges
Contact discharge		8kV
Air discharge		16kV
Electromagnetic RF fields
27MHz to 500MHz typical		10V/m
100kHz to 1GHz typical		30V/m
Fast transient burst test		4kV
Mechanical requirements
Meter shell Protection Rate		IP54
Insulation System Classification		Protective Class II
Maximum cable size		8 mm
