Description：

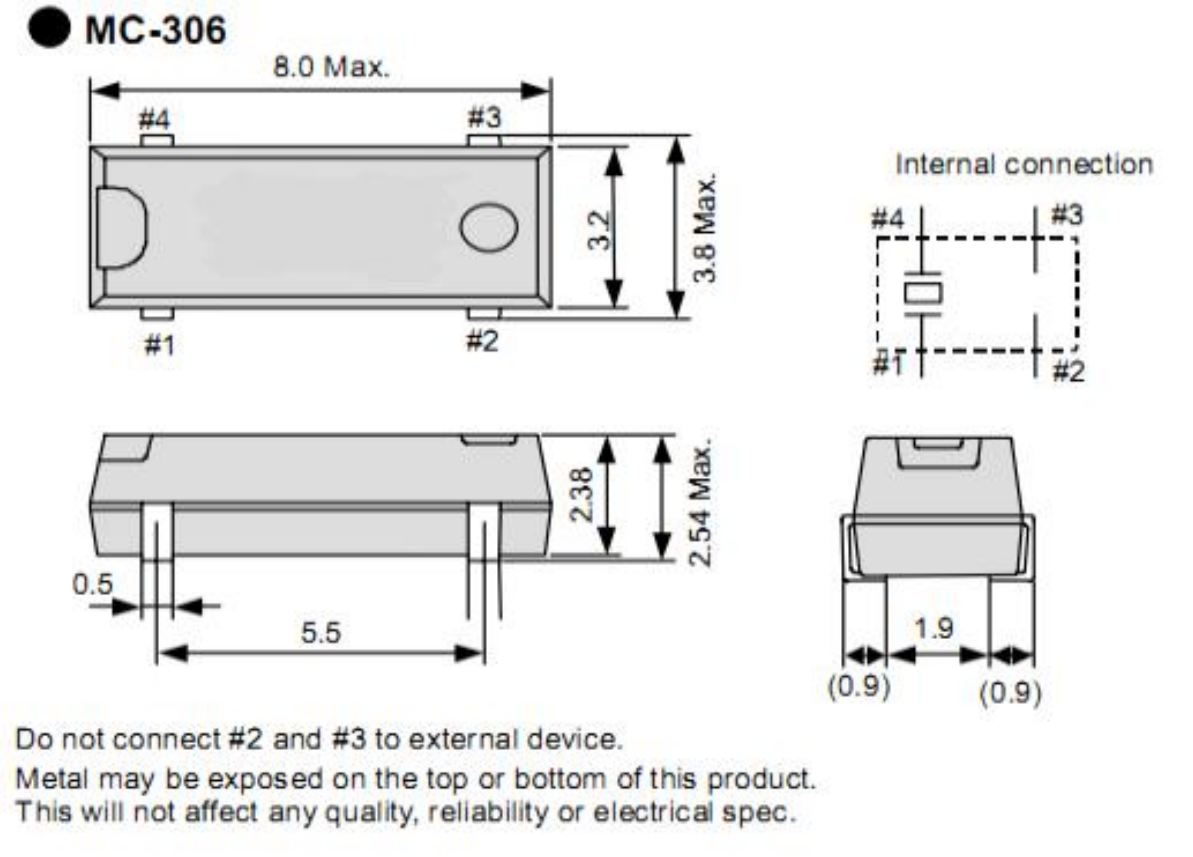

32.768KHz /BD-MC-306
Product Brochure:DOWNLOAD
| 1 | Nominal frequency | 32.768KHz |
| 2 | Mode of vibration | AT fundamental |
| 3 | Load Capacitance | 10.0pF |
| 4 | Frequency tolerance | ±20ppm(25±5℃) |
| 5 | Frequency temperature characteristics | -0.034±0.006ppm/℃²(-40 to +85℃ ) |
| 6 | Equivalent series resistance | 50K Ω max |
| 7 | Shunt capacitance | 0.8pF Typ |
| 8 | insulation resistance | 500M Ω min./100±15VDC |
| 9 | Drive level | 0.1mW |
| 10 | Aging | ±5ppm/year |
| 11 | Storage temperature range | -55℃ to +125℃ |
| 12 | Test impedance Meter | S&A 250B |
